Road sign aluminum sheet is widely used for traffic signs, highway signs, warning boards, street name signs, parking signs, and reflective sign panels. It has good corrosion resistance, long outdoor life, and a smooth surface for reflective film application.
Many countries use aluminum sheet for road signs because it is lightweight, strong, and easy to process. Common markets include the USA, Australia, the UK, Singapore, the Middle East, and Europe.
Different aluminum alloys can be used for different sign projects. Thickness, temper, coating, and surface treatment can also be customized.
Why Aluminum Sheet Is Used for Road Signs
Compared with steel or plastic boards, aluminum sign sheet has many advantages.
| Feature | Benefit |
|---|---|
| Lightweight | Easy transportation and installation |
| Corrosion resistance | Suitable for outdoor weather |
| Smooth surface | Good reflective film adhesion |
| Long service life | Lower maintenance cost |
| Recyclable material | Eco-friendly |
| High strength | Suitable for highway signs |
| Easy fabrication | Simple cutting and punching |
Road sign aluminum sheet can be used in hot areas, rainy regions, coastal cities, and cold environments.
Common Aluminum Alloys for Road Signs
Different alloy grades are suitable for different traffic sign applications.
1050 Aluminum Sheet for Signs
1050 aluminum sheet has high purity and good flexibility. It is suitable for normal traffic signs and indoor signboards.
| Alloy | Temper | Thickness |
|---|---|---|
| 1050 | H14 / H24 | 0.5mm – 3.0mm |
Applications:
- Street name signs
- Indoor guide signs
- Temporary signs
- Advertising boards
1100 Aluminum Sheet for Traffic Signs
1100 aluminum sheet is one of the most common materials for reflective road signs.
| Property | Value |
|---|---|
| Aluminum purity | ≥99% |
| Surface | Mill finish / coated |
| Width | 200mm – 1500mm |
Advantages:
- Good bending performance
- Smooth surface
- Easy reflective film lamination
- Good weather resistance
3003 Aluminum Sheet for Highway Signs
3003 alloy has higher strength than 1 series aluminum.
| Alloy | Main Feature |
|---|---|
| 3003 | Better strength and durability |
Suitable for:
- Highway signs
- Large directional signs
- Outdoor warning boards
- Industrial safety signs
5052 Aluminum Sheet for Road Sign Panels
5052 aluminum sheet has strong corrosion resistance. It is widely used in coastal and humid areas.
| Alloy | Temper | Feature |
|---|---|---|
| 5052 | H32 | Strong corrosion resistance |
Applications include:
- Coastal traffic signs
- Marine area signs
- Airport signs
- Long-life outdoor signs
Road Sign Aluminum Sheet Types
Reflective Traffic Sign Aluminum Sheet
This type is used with reflective film.
Features:
- Smooth surface
- Good adhesive performance
- Long outdoor durability
Common reflective grades:
| Reflective Type | Usage |
|---|---|
| Engineer Grade | Normal roads |
| HIP Reflective | Highway signs |
| Diamond Grade | High visibility signs |
Prepainted Aluminum Sign Sheet
Color-coated aluminum sheet can reduce additional painting costs.
Available colors:
- White
- Blue
- Green
- Yellow
- Red
- Orange
Applications:
- Parking signs
- Construction signs
- Public information signs
Embossed Aluminum Sign Sheet
Embossed aluminum surface can improve strength and appearance.
Common patterns:
- Stucco embossed
- Orange peel pattern
- Hammer embossed
Advantages:
- Better scratch resistance
- Decorative appearance
- Improved rigidity
Aluminum Coil for Road Signs
Many sign factories purchase aluminum coils instead of sheets.
Benefits:
- Continuous production
- Lower processing cost
- Suitable for automatic cutting
Common coil specifications:
| Thickness | Width |
|---|---|
| 0.8mm | 1000mm |
| 1.0mm | 1220mm |
| 1.5mm | 1250mm |
| 2.0mm | 1500mm |
Common Thickness of Road Sign Aluminum Sheet
Different traffic signs need different thicknesses.
| Thickness | Common Use |
|---|---|
| 0.5mm | Small indoor signs |
| 0.8mm | Parking signs |
| 1.0mm | Street signs |
| 1.5mm | Traffic warning signs |
| 2.0mm | Highway signs |
| 3.0mm | Large road panels |
Thicker aluminum sheets usually provide stronger wind resistance.
Surface Treatment Options

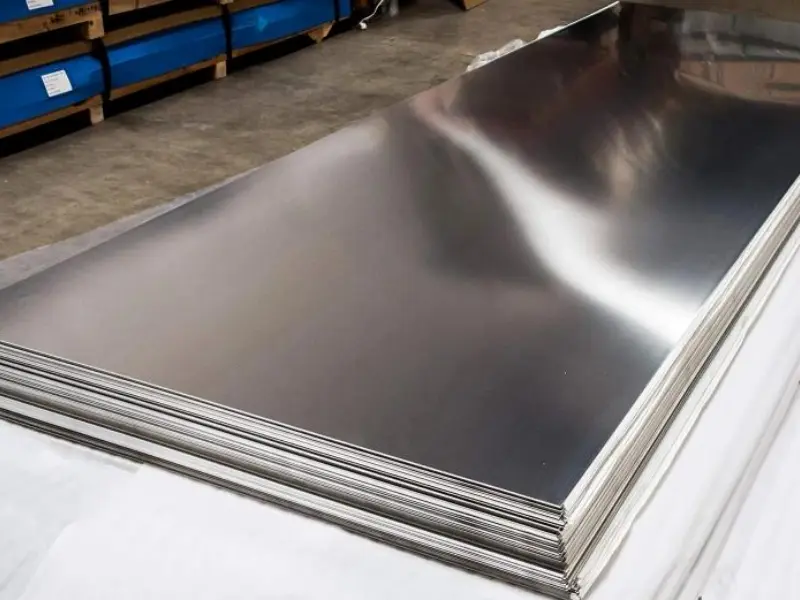

Mill Finish Aluminum Sheet
Natural aluminum surface without coating.
Advantages:
- Lower cost
- Easy processing
- Good for secondary fabrication
PVDF Coated Aluminum Sheet
PVDF coating provides excellent outdoor durability.
Suitable for:
- Highway projects
- Airport signs
- Coastal environments
Polyester Coated Aluminum
PE coating is economical for general traffic sign production.
| Coating Type | Outdoor Life |
|---|---|
| PE Coating | 5–8 years |
| PVDF Coating | 15–20 years |
Road Sign Aluminum Sheet Processing
Road sign aluminum sheets can be processed into many shapes.
Common processing methods:
- CNC cutting
- Laser cutting
- Punching
- Bending
- Corner rounding
- Reflective film lamination

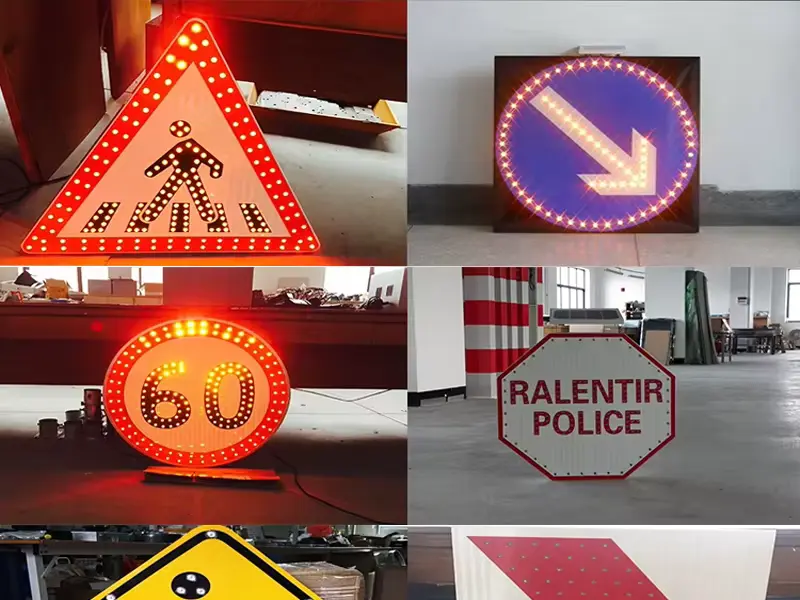

Popular shapes include:
- Rectangle signs
- Triangle signs
- Octagon signs
- Shield signs
- Circular signs
- Custom warning panels
Aluminum Sheet vs Galvanized Steel for Road Signs
| Item | Aluminum Sheet | Galvanized Steel |
|---|---|---|
| Weight | Light | Heavy |
| Corrosion resistance | Excellent | Medium |
| Service life | Long | Medium |
| Installation | Easy | Harder |
| Recyclable | Yes | Yes |
| Cost | Medium | Lower |
Aluminum sheet is preferred for long-term outdoor traffic signs.
Road Sign Aluminum Sheet Applications

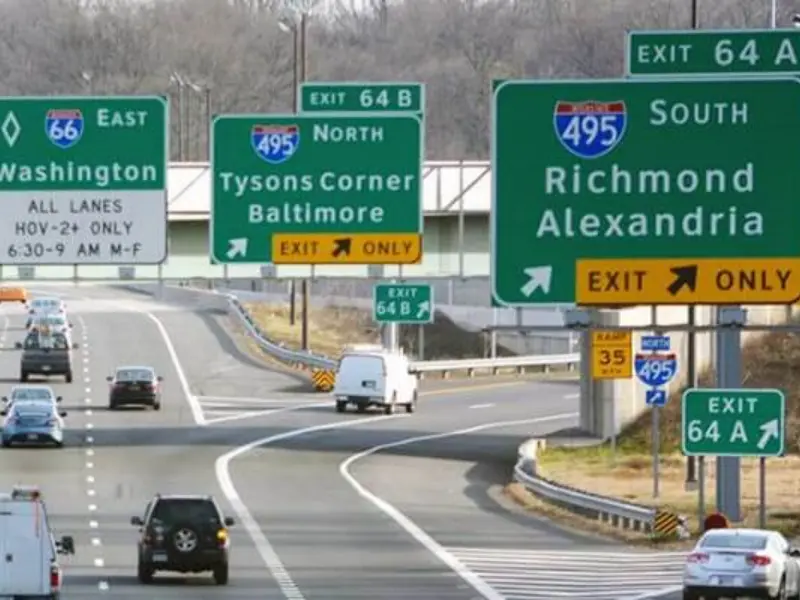

Highway Traffic Signs
Large highway signs require strong and weather-resistant aluminum panels.
Features needed:
- High wind resistance
- Reflective compatibility
- Long outdoor life
Street Name Signs
Street signs usually use 1.0mm to 1.5mm aluminum sheets.
Benefits:
- Easy installation
- Clear printing
- Long-lasting color
Construction Warning Signs
Temporary warning signs often use lightweight aluminum materials.
Common examples:
- Road work signs
- Safety warning boards
- Detour signs
Parking Signs
Parking signs need durable and rust-resistant materials.
Common colors:
- Blue
- White
- Red
- Green
Airport and Public Facility Signs
Airports and public transportation systems often use coated aluminum sign sheets.
Advantages:
- Professional appearance
- Strong corrosion resistance
- Long service life
Standard Sizes of Road Sign Aluminum Sheet
| Size | Popular Market |
|---|---|
| 1000 × 2000mm | Asia |
| 1220 × 2440mm | North America |
| 1250 × 2500mm | Europe |
| Custom size | Traffic projects |
Custom cutting service is available for many projects.
Comparison of Sign Material Performance
Choosing between different alloys affects your budget and the sign’s lifespan. Here is how they compare.
| Property | 3003 Alloy | 5052 Alloy | 1100 Alloy |
|---|---|---|---|
| Strength | Medium | High | Low |
| Corrosion Resistance | Good | Excellent | Good |
| Workability | Very Easy | Moderate | Excellent |
| Relative Cost | Moderate | Higher | Lower |
| Standard Use | Street Signs | Highways/Coastal | Small Labels |
Different Product Types for Traffic Control
We offer several versions of the Road Sign Aluminum Sheet to help speed up your production.
Plain Mill Finish Aluminum Sheets
These are large, flat sheets. Sign shops buy these and cut them into their own shapes. They must be cleaned (degreased) before a reflective film can be stuck on them.
Pre-cut Sign Blanks
We can provide the Road Sign Aluminum Sheet already cut into standard shapes. This includes circles, triangles, octagons, and diamonds. They come with rounded corners and pre-drilled holes. This saves you labor time.
Chromated or Degreased Sheets
To make sure reflective stickers stay on forever, the aluminum needs a clean surface. We can provide sheets that have been chemically cleaned. This ensures the best bond between the metal and the reflective vinyl.
Color Coated Sign Plates
Some signs need a colored background on the back side (usually green or black). We provide pre-painted aluminum plates. The front is ready for reflective film, and the back is already protected with a durable paint.
Comparison of Thickness and Wind Load
The thickness of your Road Sign Aluminum Sheet depends on how large the sign is. A larger sign catches more wind and needs to be thicker.
| Sign Size (mm) | Recommended Thickness | Typical Usage |
|---|---|---|
| Up to 450 mm | 1.2mm−1.5mm | Parking signs, street names |
| 450 mm to 900 mm | 2.0mm | Stop signs, speed limits |
| Over 900 mm | 2.5mm−3.0mm | Warning diamonds, large arrows |
| Over 1500 mm | 3.0mm+ Bracing | Huge highway guide signs |
Surface Finishes and Processing
The way the surface is treated determines how well the final sign performs.
Degreasing and Chemical Pre-treatment
Every Road Sign Aluminum Sheet leaves the mill with a tiny bit of oil on it. We use an acid wash to remove this. This makes the surface “chemically active,” so your reflective sheeting will never peel off, even in the heat.
Anodized Sign Sheets
Anodizing creates a very hard layer on the aluminum. This is used for high-end signs or maps in parks. It protects the metal from scratches and graffiti.
Pre-drilled Holes and Radius Corners
Sharp corners on metal can be dangerous. Our standard sign blanks have “radius corners” (rounded edges). We also use CNC machines to punch holes exactly where the mounting brackets go.
Structural Variations of Road Signs
Beyond the flat sheet, there are other ways to use aluminum for traffic.
Extruded Aluminum Sign Planks
For very large highway signs, a single Road Sign Aluminum Sheet might not be enough. We use “planks” that lock together. These are much thicker and can span several meters without bending.
Reinforced Sign Plates
Some signs have aluminum “ribs” or channels welded to the back. This is common for signs that sit on tall poles in windy valleys. The reinforcement allows for a thinner sheet while maintaining total strength.
Material Characteristics for Longevity
Why is aluminum the king of the road? It comes down to its physical properties.
- Non-Sparking: Safe for use near gas stations or chemical plants.
- High Strength-to-Weight Ratio: Easy for one worker to lift and install.
- Recyclability: When a sign is damaged, the aluminum is valuable and can be recycled infinitely.
- Temperature Resistance: It does not get brittle in the freezing winter or soft in the desert summer.
Choosing the Right State (Temper)
The “Temper” or state of the Road Sign Aluminum Sheet tells you its hardness.
The H14 State
This is “Half-Hard.” It is the perfect balance. It is stiff enough to stand straight on a pole but soft enough that it won’t crack if it is hit by a stone.
The H38 State
This is “Full-Hard” for the 5050 series. It is very difficult to bend. This is used for the largest signs that must survive hurricane-force winds.
The O State
This is “Annealed” or soft. We rarely use this for signs unless the sign has a very complex, curved shape that needs to be pressed.
Comparison: Aluminum vs. Steel Signs
| Feature | Aluminum Sheets | Galvanized Steel |
|---|---|---|
| Weight | Very Light (1/3 of steel) | Heavy |
| Corrosion | Self-protecting (No rust) | Will rust if coating is scratched |
| Installation | Low cost (One person) | High cost (Needs machinery) |
| Reflective Bonding | Excellent | Good |
| Value | High Scrap Value | Low Value |
Packaging and Export
Road sign aluminum sheets are usually packed with:
- Wooden pallets
- Waterproof paper
- Plastic film protection
- Corner protection
Export destinations include:
- Australia
- United Kingdom
- Singapore
- UAE
- Saudi Arabia
- USA
- Canada
How to Choose the Right Aluminum Sheet for Road Signs
By Environment
| Environment | Recommended Alloy |
|---|---|
| Normal city roads | 1100 / 1050 |
| Coastal areas | 5052 |
| Highway projects | 3003 / 5052 |
Choose by Thickness
| Sign Size | Suggested Thickness |
|---|---|
| Small sign | 0.5mm – 1.0mm |
| Medium sign | 1.0mm – 2.0mm |
| Large highway sign | 2.0mm – 3.0mm |
Choose by Surface
| Requirement | Surface Type |
|---|---|
| Low cost | Mill finish |
| Better weather resistance | PVDF coating |
| Decorative effect | Embossed surface |
FAQ
What aluminum alloy is best for road signs?
1100, 3003, and 5052 are common choices. Different projects use different alloys based on strength and weather conditions.
Why is aluminum used for traffic signs?
Aluminum is lightweight, rust-resistant, and durable. It also works well with reflective film.
What thickness is used for highway signs?
Many highway signs use 2.0mm to 3.0mm aluminum sheets for better strength.
Can aluminum sign sheets be reflective?
Yes. Reflective film can be laminated onto the aluminum surface.
What surface treatments are available?
Available options include:
- Mill finish
- PE coating
- PVDF coating
- Embossed finish
Can custom sizes be produced?
Yes. Custom thickness, width, length, and shape are available.
Road Sign Aluminum Sheet Supplier
A professional supplier can provide:
- Custom alloy selection
- Reflective sign solutions
- Coil and sheet supply
- Protective coating options
- OEM processing service
For large traffic sign projects, stable quality and accurate thickness tolerance are important.
WORTHWILL ALUMINUM supplies road sign aluminum sheets, reflective sign aluminum coils, embossed aluminum sheets, and custom traffic sign materials for global customers.
High Quality Road Sign Aluminum Sheet for Traffic and Safety Signs
Road sign aluminum sheet is an important material for modern traffic systems. It is widely used for highway signs, warning boards, parking signs, and public safety signs.

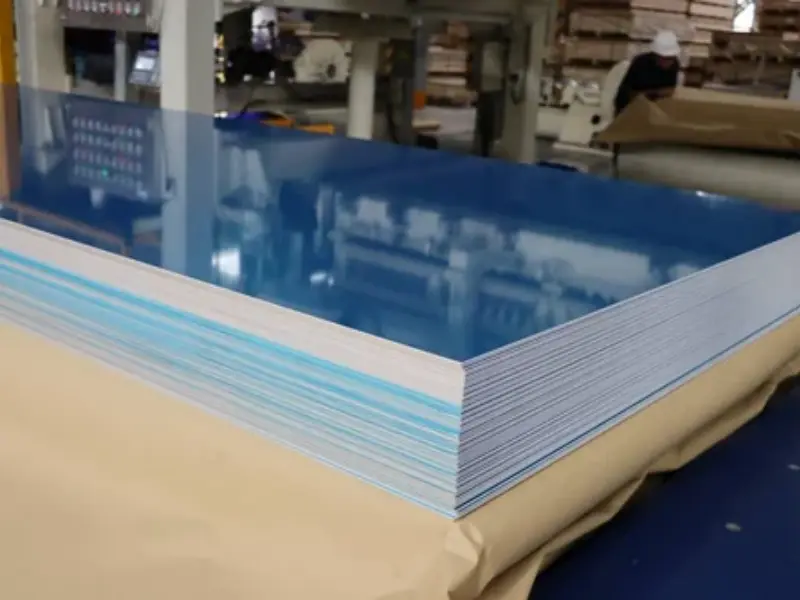

Different alloys such as 1050, 1100, 3003, and 5052 can meet different project needs. Thickness, coating, reflective surface, and processing methods can also be customized.
Choosing the correct aluminum sheet can improve outdoor durability, reduce maintenance costs, and increase traffic safety.
