A 2mm aluminium sheet is one of the most popular thicknesses in the metal industry. It is strong enough for structural work but light enough to handle easily. Whether you are in construction, car manufacturing, or DIY projects, this specific thickness offers the perfect balance.
Understanding the Basics of 2mm Aluminium Sheets
When we talk about a 2mm aluminium sheet, we are referring to a metal plate with a thickness of exactly $$2.0 , \text{mm}$$. In the imperial system, this is very close to $$14$$ gauge or approximately $$0.078$$ inches.
Aluminum is famous for being one-third the weight of steel. This makes the 2mm version a top choice for projects where saving weight is important.
Core Specifications Table
| Feature | Detail |
|---|---|
| Thickness | $$2.0 , \text{mm}$$ ($$ \pm 0.02 , \text{mm} $$ tolerance) |
| Common Widths | $$1000 , \text{mm}, 1220 , \text{mm}, 1500 , \text{mm}$$ |
| Common Lengths | $$2000 , \text{mm}, 2440 , \text{mm}, 3000 , \text{mm}$$ |
| Density | Approximately $$ 2.71 , \text{g/cm}^3 $$ |
| Surface Finish | Mill finish, brushed, mirror, or coated |
Popular Alloy Types for 2mm Aluminium Sheets
Not all aluminium is the same. Different “alloys” mix aluminium with other metals like magnesium or manganese to change its strength. Here are the most common grades for the 2mm thickness.
1. 1000 Series (Pure Aluminium) Sheet
The $$1050$$ and $$1060$$ alloys are almost pure aluminium ($$ > 99% $$). These 2mm sheets are very soft and easy to bend. They are excellent for chemical equipment because they resist corrosion very well.
2. 3000 Series (Corrosion Resistant) Aluminum Sheet
The $$3003$$ alloy is the most common grade for 2mm aluminium sheets. It contains manganese. This makes it $$20%$$ stronger than the $$1000$$ series. It is the “workhorse” grade for general sheet metal work.
3. 5000 Series (Marine Grade) Aluminum Sheet
Alloys like $$5052$$ and $$5083$$ are known as marine-grade aluminium. If your 2mm sheet will be near salt water, this is the best choice. It has high fatigue strength and excellent resistance to alkaline environments.
4. 6000 Series (Structural Grade) Aluminum Sheet
The $$6061$$ or $$6082$$ alloys are heat-treatable. A 2mm sheet in this grade is very stiff. It is used in frames and structural parts where the metal must not bend easily.
Alloy Comparison Table
| Alloy Grade | Main Element | Key Benefit | Common Use |
|---|---|---|---|
| 1050 / 1060 | Aluminium ($$ 99.5% $$) | Best conductivity | Electrical parts |
| 3003 | Manganese | Good workability | Kitchenware, Tanks |
| 5052 | Magnesium | Saltwater resistance | Boat parts, Fuel tanks |
| 6061 | Magnesium & Silicon | High strength | Aircraft, Truck frames |
Different Surface Types of 2mm Aluminium
The look of the 2mm aluminium sheet depends on the surface treatment. Here are the types you can find in the market.

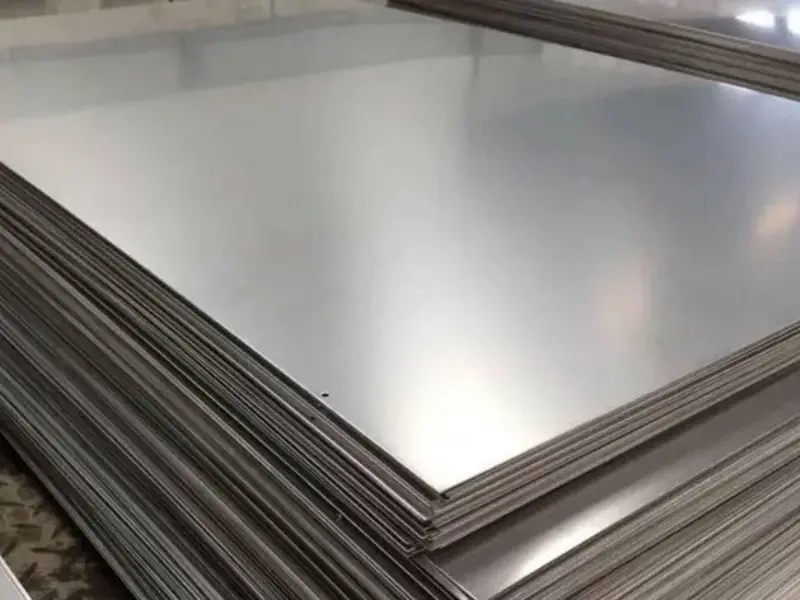

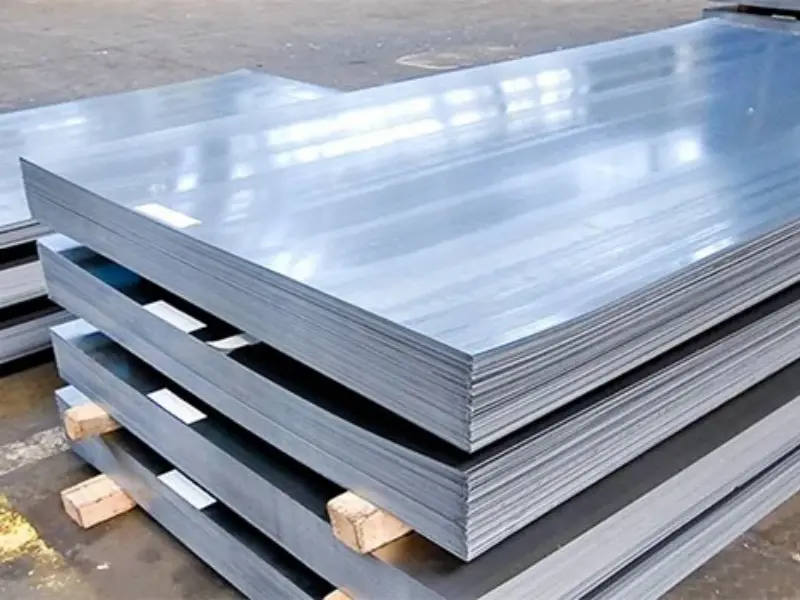

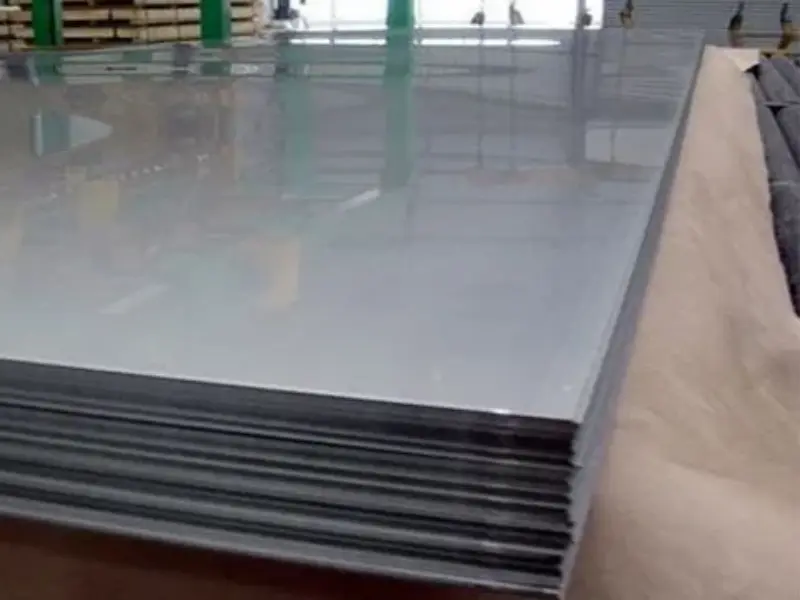

Mill Finish 2mm Sheet
This is the raw state of the aluminium after it comes out of the rolling mill. It is shiny but may have small scratches. It is the most affordable type.

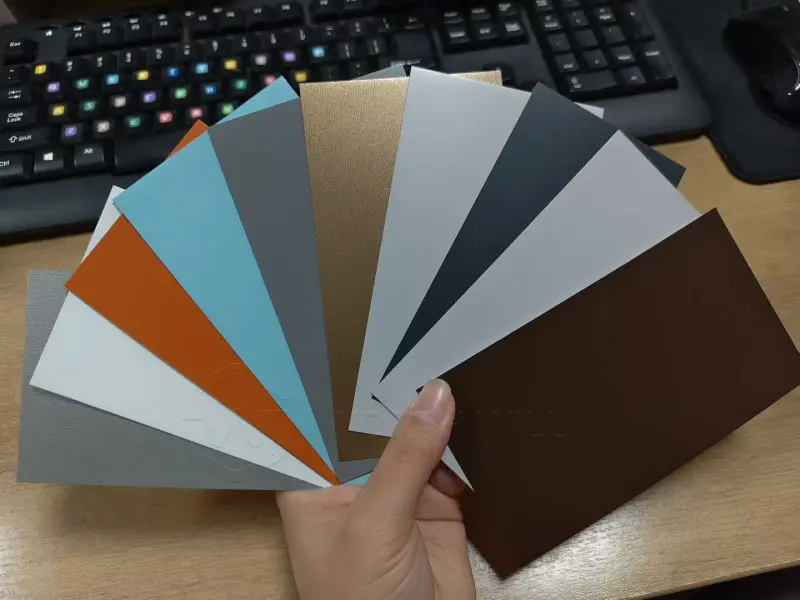

2mm Color Coated Aluminium
These sheets are painted with PE (Polyethylene) or PVDF (Fluorocarbon). This is very popular for building walls. You can choose any color, such as white, grey, or red.

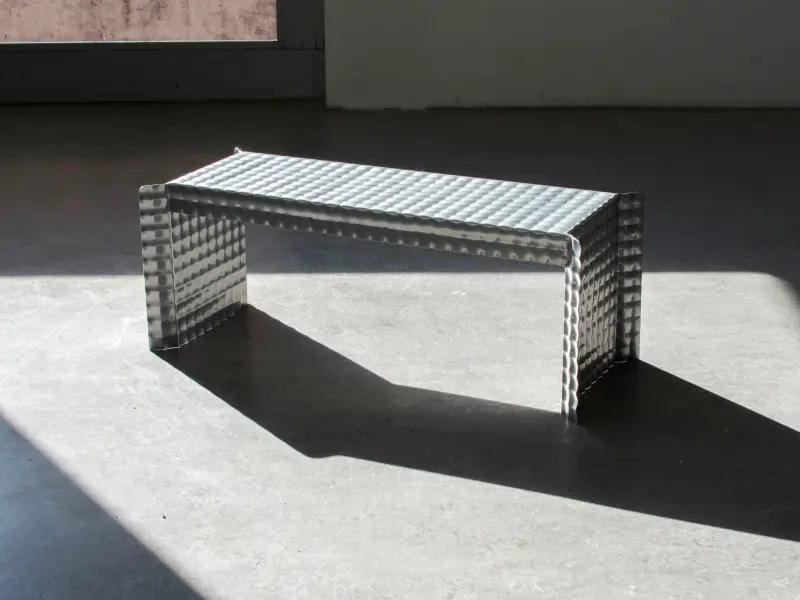

2mm Aluminium Checkered Plate
Also known as “tread plate” or “propeller plate.” It has a raised pattern on one side. This pattern provides grip and prevents slipping.
Mirror Finish 2mm Sheet
This sheet is polished until it looks like a glass mirror. It is used in lighting reflectors and decorative interior design.

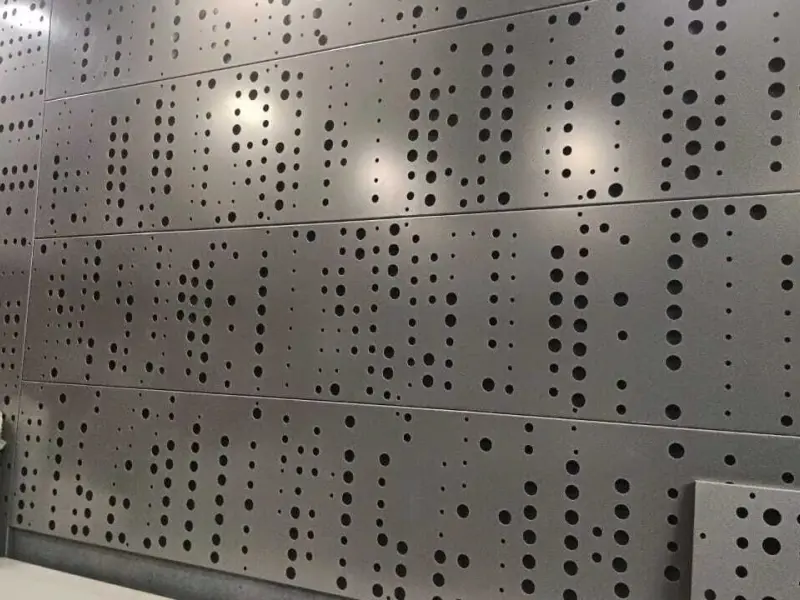

Perforated 2mm Aluminum Sheet
Surface Type Applications
| Surface Type | Feature | Typical Application |
|---|---|---|
| Mill Finish | Natural look | Industrial hidden parts |
| Color Coated | UV Resistant | Building facades, Signage |
| Checkered | Anti-slip | Toolboxes, Floor ramps |
| Anodized | Hard surface | Electronic casings |
Technical Tempers (Hardness)
The “Temper” tells you how hard the 2mm aluminium sheet is. It is usually written after the alloy name, like “3003-H14.”
- O (Annealed): This is the softest state. The 2mm sheet will be very easy to shape.
- H14 / H24: This is “half-hard.” It is the most common temper for 2mm sheets. It balances strength and flexibility.
- T6: This is “solution heat treated.” It makes the 2mm sheet very hard and rigid.
Key Applications of 2mm Aluminium Sheets
Because the 2mm thickness is so versatile, you will see it everywhere. Here are the main fields of use:
Construction and Architecture
- Wall Cladding: Large 2mm panels protect buildings from rain.
- Ceilings: Perforated 2mm aluminium sheets help with soundproofing.
- Roofing: Lightweight 2mm sheets are used for modern metal roofs.
Transportation and Automotive
- Car Body Panels: Used to reduce the weight of electric vehicles.
- Trailer Skins: 2mm sheets are used for the sides of cargo trailers.
- License Plates: Standard plates often use thin aluminium sheets.
Electronics and Appliances
- Heat Sinks: The high thermal conductivity of aluminium helps cool down computers.
- Home Appliances: Refrigerator doors and microwave casings often use 2mm panels.
Industrial Manufacturing
- Fuel Tanks: Especially in the $$5052$$ alloy for safety and durability.
- Signage: Road signs and advertising boards use 2mm sheets because they don’t rust.
Weight Calculation for 2mm Aluminium Sheets
It is important to know the weight for shipping and structural design. The formula to calculate the weight of an aluminium sheet is: $$\text{Weight} = \text{Thickness} \times \text{Width} \times \text{Length} \times \text{Density}$$
For a standard $$1000 , \text{mm} \times 2000 , \text{mm}$$ sheet with $$2 , \text{mm}$$ thickness:
- Thickness: $$2 , \text{mm}$$
- Area: $$2 , \text{m}^2$$
- Density: $$2.71 , \text{kg/m}^2$$ per mm of thickness.
- Calculation: $$ 2 , \text{mm} \times 2 , \text{m}^2 \times 2.71 = 10.84 , \text{kg} $$
Standard Size Weight Table
| Dimensions (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|
| $$1000 \times 2000$$ | $$2.0$$ | $$10.84$$ |
| $$1220 \times 2440$$ | $$2.0$$ | $$16.14$$ |
| $$1500 \times 3000$$ | $$2.0$$ | $$24.39$$ |
Benefits of Choosing 2mm Aluminium
Why use 2mm aluminium instead of steel or plastic?
- Corrosion Resistance: Aluminium creates a natural oxide layer ($$ \text{Al}_2\text{O}_3 $$).
- Easy to Fabricate: You can cut 2mm aluminium with a simple jigsaw or laser cutter. It is also easy to weld and bend.
- 100% Recyclable: Aluminium can be recycled forever without losing its quality. This makes it an eco-friendly choice.
- Cost-Effective: While more expensive than steel per pound, the lower weight means you need less material for the same surface area.
How to Choose the Right 2mm Aluminium Sheet?
When you buy a 2mm aluminium sheet, ask yourself these three questions:
What is the environment?
If it is outdoors or near the sea, choose the 5052 alloy or a PVDF coated sheet. If it is for an indoor decoration, a 1050 mill finish or anodized sheet is enough.
Do you need to bend it?
If your project requires sharp bends, go with the O or H14 temper. Avoid T6 tempers for bending, as they might crack at 2mm thickness.
Does the look matter?

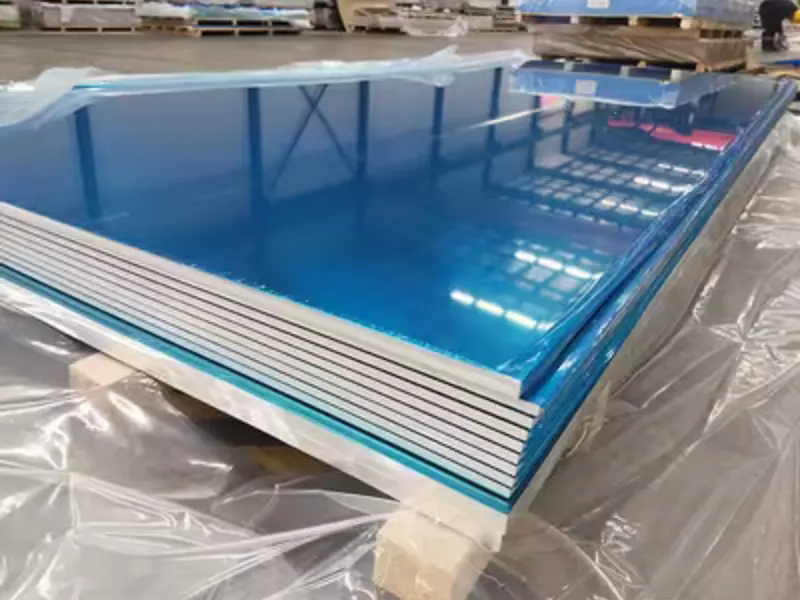

For high-end products, choose a sheet with PE protective film. This film prevents scratches during transport and cutting.
Packaging and Shipping
To keep your 2mm aluminium sheets in perfect condition, they should be packed correctly.
- Wooden Pallets: Sheets should be placed on strong pallets to prevent bending.
- Waterproof Paper: This prevents moisture from causing “white rust” during sea shipping.
- Steel Strapping: This keeps the bundle tight and safe during movement.
2mm aluminium sheet For sale
The 2mm aluminium sheet is a versatile, durable, and lightweight material. From the marine-grade $$5052$$ to the colorful coated options, there is a 2mm sheet for every need. By choosing the right alloy and finish, you ensure your project lasts for many years.
