Brushed aluminium veneer is a modern decorative material used in construction, interiors, and furniture. With a brushed surface finish, it combines the durability of aluminum with a stylish metallic look. It is widely chosen for building facades, ceilings, wall cladding, and interior decoration.

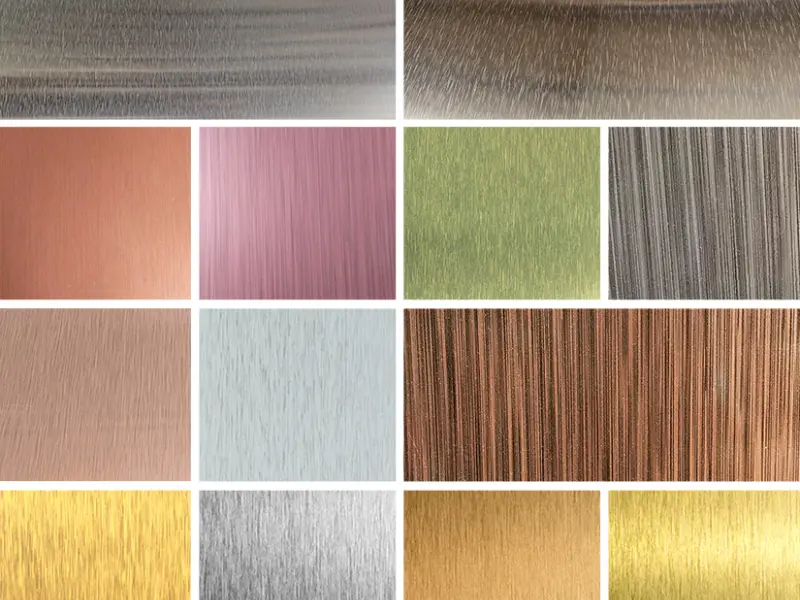

Brushed Colours for Aluminium Veneer
Brushed aluminium veneer sheets are available in different colors and finishes to match modern architectural designs. The brushed texture gives a metallic effect, while the color coating adds style and protection.
| Brushed Colour | Features & Applications |
|---|---|
| Silver Brushed | Classic metallic look, used in offices, ceilings, facades |
| Gold Brushed | Luxury finish for hotels, interior decoration, signage |
| Black Brushed | Modern, elegant look for wall panels and furniture |
| Bronze Brushed | Warm tone, often used in cultural buildings and decoration |
| Copper Brushed | Stylish and decorative, ideal for interior wall cladding |
| Champagne Brushed | Light, premium finish for high-end architectural projects |
Specifications
| Classification | Description |
|---|---|
| Standard Veneer | Brushed surface, lightweight, used for walls and ceilings |
| Fire-Resistant Veneer | Special coating for fire safety |
| Coated Veneer | PE or PVDF coated for outdoor durability |
| Customized Veneer | Tailor-made size, thickness, and finish |
Thickness Options
| Thickness (mm) | Applications |
|---|---|
| 2.0 – 3.0 mm | Indoor decoration, wall panels |
| 3.0 – 4.0 mm | Ceilings, columns, signage |
| 4.0 – 6.0 mm | Building facades, cladding panels |
| 6.0+ mm | High-strength structural applications |
Alloy Options
| Alloy | Features & Benefits |
|---|---|
| 1100 | Excellent corrosion resistance, soft, easy to bend |
| 3003 | Good strength, widely used for wall cladding |
| 5052 | High durability, suitable for marine and outdoor use |
| 6061 | Strong and tough, used in heavy-duty structures |
Types
Brushed aluminium veneer comes in various types, often defined by its surface pattern, coating, and specific dimensions. Here are some examples of different types and their specifications:
| Type Name | Finish Pattern | Coating Type | Thickness (mm) | Width (mm) | Length (mm) | Features |
|---|---|---|---|---|---|---|
| Standard Linear | Straight-line brush | PE or PVDF | 0.30 | 1220 | 2440 | Classic look, good for interior walls and furniture. |
| Premium Linear | Straight-line brush | PVDF | 0.50 | 1500 | 3000 | Enhanced durability, excellent for exterior facades. |
| Circular Brush | Swirl pattern | Anodized | 0.40 | 1000 | 2000 | Unique aesthetic, high scratch resistance. |
| Colored Brush | Straight-line brush | PE (various colors) | 0.35 | 1220 | 2440 | Offers design flexibility with a brushed texture. |
| Fire-Rated Brush | Straight-line brush | PVDF | 0.40 | 1220 | 2440 | Includes fire-resistant core, suitable for safety-critical areas. |
Applications
- Building facades – lightweight, weather-resistant, stylish look
- Ceilings – smooth surface with brushed finish
- Wall cladding – modern design for interiors and exteriors
- Columns & signage – durable and attractive metallic surface
- Furniture – decorative use for modern homes and offices
Factory Strength
- Modern factory with CNC cutting and brushing machines
- Experienced engineers for custom production
- Strict quality control for flatness, coating, and durability
- Global supply to construction companies and architects
Technical Specifications: Alloys, Tempers, and Thicknesses
To choose the right brushed aluminium veneer, you must understand its technical makeup. Different projects require specific chemical compositions and mechanical strengths.
Common Aluminum Alloy Grades
Our factory processes several high-quality aluminum alloys to create decorative panels.
Alloy 5052: This is an aluminum-magnesium alloy. It is a premium marine-grade metal. It offers superior structural strength and outstanding resistance to industrial pollutants and coastal salt-water environments.
Alloy 1100: This grade contains more than 99.0% pure aluminum. It is highly ductile and offers excellent thermal and electrical conductivity. It is very easy to shape into complex architectural curves but has lower structural strength compared to other alloys.
Alloy 3003: This is an aluminum-manganese alloy. It is the most widely used metal grade for architectural cladding and wall panels. The added manganese increases its tensile strength, making it highly resistant to wind loads while maintaining great workability.
Hardness and Temper States
H32 Temper: This temper is typical for Alloy 5052.
H14 Temper: This represents a half-hard state achieved by strain hardening. It offers an ideal balance of stiffness and flexibility, allowing the metal to stay flat on large wall areas while remaining easy to cut and bend at the corners.
H24 Temper: This state is strain-hardened and then partially annealed. It provides excellent surface stability and uniform flatness. This is highly beneficial during the mechanical brushing process.
Material Properties and Mechanical Data
The tables below provide a quick reference for the mechanical properties and standard dimensions of our brushed cladding panels.
| Alloy & Temper Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Wind Resistance Level |
|---|---|---|---|---|
| Alloy 1100−H14 | 110−145 MPa | ≥95 MPa | ≥5% | Moderate |
| Alloy 3003−H14 | 140−180 MPa | ≥115 MPa | ≥6% | High |
| Alloy 5052−H32 | 210−260 MPa | ≥130 MPa | ≥8% | Outstanding |
Standard Panel Dimensions
We use variables like thickness (t), width (w), and length (l) to define panel dimensions.
| Parameter | Standard Sizes | Custom Manufacturing Range | Tolerance |
|---|---|---|---|
| Thickness (t) | 1.5 mm, 2.0 mm, 2.5 mm, 3.0 mm | 1.2 mm−6.0 mm | ±0.05 mm |
| Width (w) | 1220 mm, 1250 mm, 1500 mm | Up to 2000 mm | ±1.0 mm |
| Length (l) | 2440 mm, 3000 mm, 4000 mm | Up to 6000 mm | ±1.5 mm |
Diverse Product Types We Manufacture
Our factory produces a wide variety of brushed aluminium veneer products. We use specialized mechanical rollers and chemical treatments to create different textures and visual effects.
Diverse Product Types We Manufacture
Hairline Brushed Aluminium Panels
This product features continuous, long, and fine lines running along the entire length of the panel.
It is highly popular for escalator cladding, elevator interiors, and premium office wall panels.
Satin Brushed Aluminium Panels
Satin panels have short, overlapping brushed lines.
This texture creates a softer, more diffused reflection of light. It reduces harsh glare and hides fingerprints extremely well. It is an excellent choice for high-traffic public areas, retail store counters, and decorative columns.
Anodized Brushed Veneer Panels
This is our most durable exterior-grade product. After the mechanical brushing process, we pass the panels through an electrochemical anodizing bath.
This process grows a protective aluminum oxide layer on the metal surface. The anodizing locks in the brushed pattern and prevents oxidation, rusting, and fading, even under harsh sunlight and acid rain.
Colored Brushed Veneer Panels
We can infuse rich colors directly into the brushed metal surface. During the anodizing process, the open pores of the oxide layer absorb specialized organic or inorganic dyes.
We offer a wide range of colors, including champagne gold, bronze, copper, rose gold, deep black, and titanium gray. This product allows designers to achieve the warm look of copper or bronze with the lightweight advantages of aluminum.
Perforated Brushed Panels
Our high-speed CNC punching machines can perforate brushed panels in almost any pattern.
We can punch simple round holes, modern square slots, or complex custom artistic patterns. Perforated panels allow airflow and light transmission. They are perfect for acoustic ceilings, parking garage screens, and interior backlighting projects.
Curved and 3D Shaped Veneer
We can shape flat brushed sheets into single-curved, double-curved, spherical, or 3D geometric panels. Our skilled craftsmen ensure that the delicate brushed pattern remains perfectly uniform and undamaged along all the bends and curves.
Factory Fabrication Capabilities and Customization
We are a direct manufacturer.
Precision CNC Cutting and Carving
We use high-power fiber laser cutters and multi-axis CNC routers. This allows us to cut complex shapes and intricate decorative patterns with a precision of ±0.1 mm.
We can pre-cut all mounting holes, fastener slots, and corner tabs in our factory, so the panels arrive at the job site completely ready for installation.
Advanced Corner Bending and Welding
Architectural wall panels require clean, sharp, and structurally sound corners.
Our technicians use automatic bending centers to fold the panel edges. For heavy-duty exterior panels, we use professional TIG (tungsten inert gas) welding to seal the corner seams. We then grind and re-brush the welded corners to make the joints virtually invisible.
Custom Corner Radius and Fixing Tabs
We customize the structural design of each panel according to your framing system.
We can add custom mounting tabs, reinforcement ribs on the back of wide panels, and specific corner radiuses (r). These built-in structural components prevent panel oil-canning and ensure flat, stable installation on any building structure.
Direct Material and Finishing Comparisons
Choosing the right material combination is essential for long-term project success. The tables below compare physical characteristics to help you make the best choice.
Alloy 3003 vs. Alloy 5052 for Veneer Projects
| Performance Feature | Alloy 3003−H14 | Alloy 5052−H32 |
|---|---|---|
| Material Strength | Moderate (140−180 MPa) | High (210−260 MPa) |
| Formability / Bending | Excellent (Easy to fold) | Good (Requires larger bending radius) |
| Corrosion Resistance | High (Standard environments) | Exceptional (Saltwater & chemical resistant) |
| Relative Production Cost | Economical (\) | Premium (\$$) |
| Best Application | Indoor walls, standard building facades | Coastal projects, industrial plants |
Finishes Comparison: Mill vs. Brushed vs. Anodized Brushed
| Surface Property | Mill Finish | Mechanical Brushed | Anodized Brushed |
|---|---|---|---|
| Visual Appearance | Dull, uneven silver | Textured, high-end metallic | Premium colored or silver metallic |
| Fingerprint Resistance | Low | Moderate to High | Extremely High |
| Scratch Resistance | Very Low | Moderate | High (Hard oxide layer) |
| Outdoor Lifespan | 1−3 Years (Oxidizes) | 2−5 Years (Inland only) | ≥20 Years (All weather) |
| UV Resistance | High | High | Outstanding (No color fading) |
Thickness Suitability Matrix
| Thickness (t) | Weight per Square Meter (kg/m2) | Recommended Use | Maximum Span Without Backing Ribs |
|---|---|---|---|
| 1.5 mm | Approximately 4.05 kg | Interior walls, ceilings, elevator cabs | Up to 600 mm×600 mm |
| 2.0 mm | Approximately 5.40 kg | Interior pillars, low-rise exterior walls | Up to 1000 mm×1000 mm |
| 2.5 mm | Approximately 6.75 kg | Standard high-rise building facades | Up to 1200 mm×1500 mm |
| 3.0 mm | Approximately 8.10 kg | Heavy-duty public facades, high wind zones | Up to 1500 mm×3000 mm |
Choosing the Right Brushed Aluminium Veneer
When selecting brushed aluminium veneer, consider the following:
- Project Location: For outdoor use, choose thicker panels with PVDF coating and a weather-resistant alloy (e.g., 5000 series). For indoor use, PE coating and thinner panels might be sufficient.
- Aesthetic Preference: Decide on the brush pattern (linear, swirl) and color that best suits your design.
- Budget: Thicker panels, special alloys, and advanced coatings (like PVDF or anodized) generally cost more.
- Specific Requirements: If fire resistance or extreme durability is needed, look for specialized brushed aluminium veneer products.
Brushed Aluminium Veneer Factory & Manufacturing Process
A modern brushed aluminium veneer factory uses advanced technology to produce high-quality panels. The process typically involves:
- Alloy Selection: Choosing the correct aluminium alloy for desired properties.
- Sheet Preparation: Cleaning and preparing the aluminium sheets.
- Brushing: Mechanical brushing to create the desired texture and pattern.
- Coating/Anodizing: Applying protective or decorative coatings (PE, PVDF) or anodizing for enhanced durability and aesthetics.
- Cutting and Forming: Cutting the brushed aluminium veneer into specific sizes and shapes.
- Quality Control: Rigorous checks to ensure product quality, consistency, and adherence to standards.
What is Brushed Aluminium Veneer?
Brushed aluminium veneer refers to thin sheets of aluminium that have undergone a brushing process. This process creates a distinctive matte, non-shiny finish with fine lines, giving it a unique texture and sophisticated appearance. This special surface makes the brushed aluminium veneer resistant to fingerprints and smudges, keeping it looking clean for longer.
Where Our Brushed Aluminium Veneer Is Installed
- Commercial Building Facades: Exterior cladding for modern shopping malls, office towers, car dealerships, and corporate headquarters.
- High-End Interior Spaces: Feature walls in hotel lobbies, luxury retail boutiques, corporate boardrooms, and reception backdrops.
- Transportation Infrastructure: Decorative wall panels and column covers in airports, subway stations, high-speed rail terminals, and bus depots.
- Elevator and Escalator Cladding: Durable, scratch-resistant wall linings, door skins, and side panels for passenger transit systems.
- Public Columns and Pillars: Circular or square metal pillar wraps in convention centers, exhibition halls, and museum corridors.
- Ceiling and Canopy Systems: Sleek, reflective linear ceiling panels, suspended screens, and exterior entry canopies.
Our Broad Range of Premium Aluminum Products
In addition to decorative veneers, our factory manufactures a wide variety of aluminum materials to support your global supply chain.
Aluminum Coil Stocks
We supply high-quality hot-rolled and cold-rolled aluminum coils. These coils are available in alloys from the 1xxx, 3xxx, 5xxx, and 8xxx series.
Our advanced rolling mills ensure tight thickness tolerances and excellent flatness. These coils are perfect for stamping, rolling, laminating, and further processing by industrial manufacturers.
Prepainted Aluminum Sheets
We operate high-speed continuous coil coating lines. We apply premium PE (polyester) and PVDF (polyvinylidene fluoride) liquid paints to aluminum substrates.
Our prepainted sheets offer incredible color consistency and superior weather resistance.
Aluminum Honeycomb Panels
For projects requiring extreme flat panels with minimum weight, we manufacture aluminum honeycomb panels.
This product features a lightweight hexagonal aluminum foil core sandwiched between two rigid aluminum sheets. It offers incredible structural stiffness and excellent acoustic insulation, making it ideal for high-end interior partition walls and large suspended ceiling boards.
Solid Aluminum Plate Stocks
We stock heavy-duty solid aluminum plates in thick gauges, ranging from 6.0 mm up to 100 mm or more.
These plates are available in structural alloys like 5083, 6061−T6, and 7075−T6.
Packaging and Delivery Standards for Global Shipments
- PE Protective Film: We apply a high-quality, adhesive-backed polyethylene protective film to the brushed side of every single panel. This film protects the metal from scratches and fingerprints during fabrication and installation. It peels off cleanly at the job site without leaving any glue residue.
- Wooden Corner Protectors: We wrap the corners of each panel stack in thick, multi-layer cardboard and wooden guards to prevent bent edges during handling.
- Moisture-Resistant Plastic Wrapping: We seal the entire pallet in industrial stretch wrap containing desiccant packs to prevent condensation and white rust during long ocean transport.
- Fumigated Wooden Crates: We pack our panels into heavy-duty, heat-treated wooden crates or pallets.
FAQ
1. What is brushed aluminium veneer?
It is an aluminum panel with a brushed surface finish, used for decoration and protection.
2. What thickness is available?
Common thicknesses range from 2 mm to 6 mm, depending on usage.
3. Can it be used outdoors?
Yes, with PVDF or PE coating, brushed veneer is suitable for outdoor projects.
4. What alloys are commonly used?
Popular choices are 1100, 3003, 5052, and 6061, depending on strength needs.
5. Is customization possible?
Yes, size, thickness, color, and surface finish can all be customized.
6. How is it packaged for delivery?
Panels are covered with protective film and packed on pallets with waterproof wrapping.
Q1: How durable is brushed aluminium veneer?
A: Very durable – the brushing process helps hide minor scratches and wear. Most products have protective coatings for added longevity.
Q2: Can it be used outdoors?
A: Yes, when properly coated with PVDF or anodized for weather resistance. Alloy 5052 or 6061 are recommended for outdoor use.
Q3: How do I clean brushed aluminium?
A: Use mild soap and water with a soft cloth. Always wipe in the direction of the grain to maintain appearance.
Q4: Can brushed aluminium be curved or bent?
A: Yes, thinner gauges (0.5-1.0mm) can be formed to moderate curves without damaging the finish.
Q5: Is brushed aluminium veneer expensive?
A: It’s mid-range in price – more affordable than solid metals but more premium than laminated finishes.
Q6: How does brushed compare to polished aluminium?
A: Brushed finish hides fingerprints and scratches better, while polished offers higher reflectivity but shows imperfections more easily.
