Creating high-impact 3D signs requires the right materials. The most popular choice for modern sign makers is the aluminum coil for channel letters. This material combines strength, light weight, and ease of use. Whether you are building a small shop sign or a massive corporate logo, quality aluminum is essential.
Technical Specifications: Alloy and Temper
Not all aluminum is the same. For sign making, the metal needs to be flexible enough to bend into sharp angles but stiff enough to hold its shape.
Common Alloy Types
We focus on specific alloys that work best with automatic channel letter bending machines.
| Alloy Series | Characteristics | Best For |
|---|---|---|
| 3003 Series | High strength, manganese-added | Large letters, high-wind areas. |
| 1100 / 1050 | Very flexible, pure aluminum | Intricate logos, sharp curves. |
| 5000 Series | Marine grade, corrosion-resistant | Coastal cities, saltwater air. |
Temper and Hardness
The “state” or “temper” of the metal is usually H14 or H16. This means it is “half-hard.” It is easy to work with but won’t sag or deform over time.
Dimensional Specifications
Precision is vital when feeding an aluminum coil for channel letters into a CNC bender. We provide various widths and thicknesses to suit different letter heights.
Standard Sizes Table
| Specification | Metric Units | Imperial Units |
|---|---|---|
| Thickness | $$0.4$$ mm – $$1.2$$ mm | $$.016″$$ – $$.048″$$ |
| Width (Depth) | $$30$$ mm – $$200$$ mm | $$1.2″$$ – $$7.8″$$ |
| Coil Length | $$30$$ m – $$100$$ m | $$100$$ ft – $$328$$ ft |
| Weight per Coil | $$10$$ kg – $$50$$ kg | $$22$$ lbs – $$110$$ lbs |

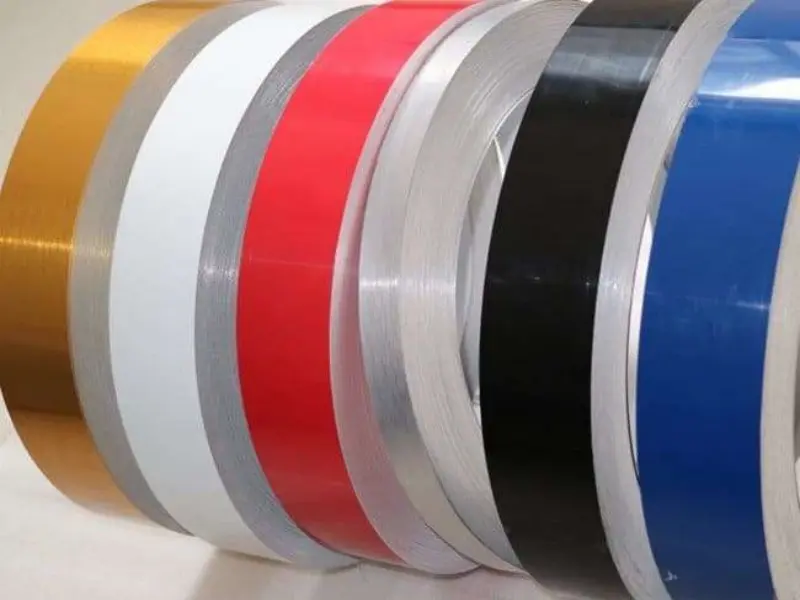

Popular Product Types and Finishes
Customers want signs that stand out. This is why we offer the aluminum coil for channel letters in many different surface styles.

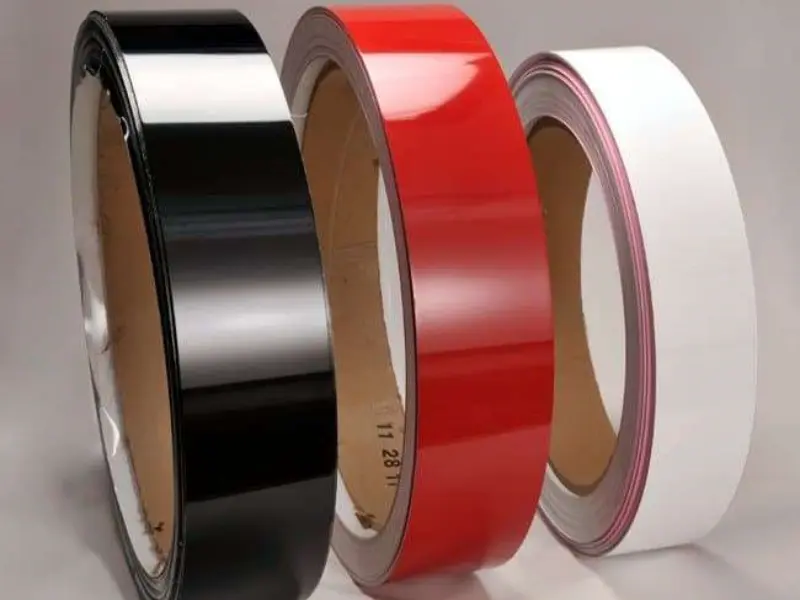

1. Pre-Painted Color Coated Coils
This is the most common type. The aluminum is coated with high-quality polyester (PE) or PVDF paint.
- Classic Colors: High-gloss white, matte black, and red.
- Vibrant Colors: Blue, yellow, green, and orange.
- Custom Colors: We can match specific brand colors using RAL or Pantone codes.

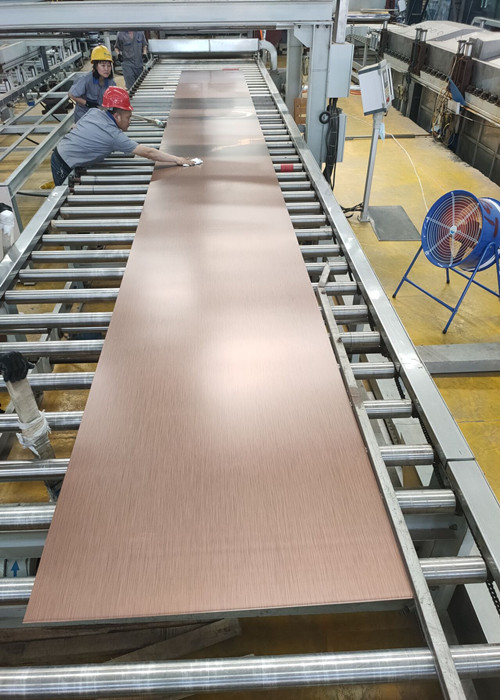

2. Brushed Aluminum Finish
The Brushed finishes give a high-end, sophisticated look. It is very popular for indoor office signs or luxury retail brands.
- Brushed Silver: Mimics stainless steel but is much lighter and easier to bend.
- Brushed Gold: Adds a touch of luxury to logos.

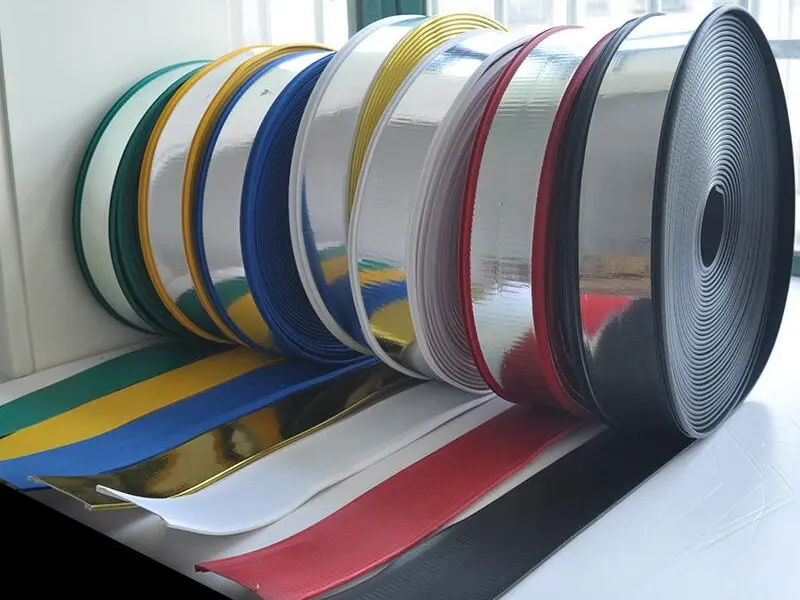

3. Mirror Finish Coils
If you want a sign that shines like a mirror, this is the choice.
- Mirror Silver: Highly reflective, perfect for nighttime visibility.
- Mirror Gold: Often used for jewelry stores and high-fashion boutiques.
4. Special Textured Coils
Some signs require a unique look. We provide embossed or wood-grain textures on our aluminum coil for channel letters for specific architectural projects.
Why Use Aluminum Instead of Other Metals?
Sign makers used to use steel or plastic, but aluminum coil for channel letters has taken over the market.
Lightweight Advantage
Aluminum is about one-third the weight of steel. This makes the final sign easier to transport and much safer to install on high walls.
Rust and Corrosion Resistance
Steel will rust over time, especially at the joints. Aluminum develops a natural oxide layer that protects it. Our pre-painted coils add an extra layer of protection.
Ease of Bending
Using an aluminum coil for channel letters reduces the wear and tear on your bending machines. It bends cleanly without cracking the paint.
Major Application Areas
Where do you see these products? Almost everywhere you look in a modern city.
- Retail Storefronts: Bright, colorful 3D letters above shop doors.
- Shopping Malls: Large-scale logos and directional signs.
- Corporate Buildings: Professional brand names on skyscraper tops.
- Hotels and Restaurants: Custom-shaped signs that use LED lighting.
- Gas Stations: High-durability signs that withstand sun and wind.
- Interior Decor: 3D wall art and indoor company logos.
Working with Bending Machines
Our aluminum coil for channel letters is designed to be “machine-friendly.”
Smooth Feeding
The edges of the coil are perfectly straight. This prevents the metal from jamming in the CNC feeder.
Paint Adhesion
Our paint is flexible. When the machine bends the metal at a $$90$$-degree angle, the paint does not flake or peel off. This saves you from having to do touch-up paint work.
Protective Film
Every roll comes with a thin plastic film. This film protects the color during the bending and welding process. You simply peel it off once the sign is installed.
How to Choose the Right Coil for Your Project
Consider the Letter Height
If your letters are over $$1$$ meter tall, you should use a thicker aluminum coil for channel letters ($$0.8$$ mm or higher). For small indoor letters, $$0.5$$ mm or $$0.6$$ mm is usually enough.
Match the Environment
For signs near the ocean, always choose a high-grade alloy like the $$5000$$ series with a PVDF coating. For indoor use, standard PE coating is perfect and more affordable.
Packaging and Shipping
We understand that a dented coil is a wasted coil. We use industrial-grade packaging to protect your aluminum coil for channel letters.
- Waterproof Wrapping: Each coil is wrapped in plastic to prevent moisture.
- Cardboard Core: Prevents the center of the coil from collapsing.
- Wooden Pallets: Coils are stacked securely on pallets for forklift safety.
- Steel Straps: Ensures the load does not move during international shipping.
What is Aluminum Coil for Channel Letters?
Channel letters are the individual 3D letters or logos found on building facades. The “return” (the side of the letter) is usually made from an aluminum coil for channel letters.
This metal comes in long, narrow rolls. It is pre-painted or treated so it is ready for immediate use. Because aluminum does not rust, it is perfect for outdoor environments. It stays bright and strong for many years.
Frequently Asked Questions (FAQ)
Can I use this coil for hand-bending?
Yes. While it is optimized for machines, the aluminum coil for channel letters is easy to bend by hand using simple shop tools.
What is the lifespan of the paint?
Our PE-coated coils usually last $$5$$ to $$8$$ years outdoors. PVDF-coated coils can last over $$10$$ to $$15$$ years even in harsh sunlight.
Does the coil work with LED lighting?
Absolutely. Most channel letters made with aluminum coils are designed to be “face-lit” or “halo-lit” with LED strips inside.
Aluminum Coil for Channel Letters: The Professional Choice for Signage
The aluminum coil for channel letters is the best material for durable, attractive, and cost-effective signage. Its versatility in color and finish allows for endless creative possibilities.
By choosing the right alloy and thickness, you ensure your signs look professional and last for years. If you need a specific color or a custom width, contact us today to discuss your signage needs!
