Aluminum coil has become a primary material in modern architecture. From residential homes to massive industrial warehouses, Aluminum Coil Applications in Roofing and Construction are visible everywhere. As a professional manufacturer, we provide high-quality aluminum coils that offer durability, style, and long-term protection.
Why Use Aluminum Coil for Roofing and Construction?
Aluminum is favored over steel or copper in many construction projects. Its unique physical properties make it an ideal choice for exterior applications.
- Lightweight: Aluminum is about one-third the weight of steel. This reduces the load on building structures and makes installation easier.
- Corrosion Resistance: Unlike steel, aluminum does not rust. It forms a natural oxide layer that protects it from moisture and salt air.
- Reflectivity: Aluminum reflects heat well, which helps in keeping buildings cool and reducing energy costs for air conditioning.
- Recyclability: It is a “green” metal. Over 95% of construction aluminum can be recycled without losing its quality.
Technical Specifications of Construction Aluminum Coils
When selecting materials, understanding the “numbers” is vital. Below is a digital breakdown of our standard aluminum coil specifications.
| Parameter | Metric Range | Imperial Range |
|---|---|---|
| Thickness | 0.2mm to 4.0mm | 0.008″ to 0.157″ |
| Width | 20mm to 2600mm | 0.78″ to 102.3″ |
| Alloy Series | 1000,3000,5000,8000 | N/A |
| Temper | H14,H16,H24,H44,O | N/A |
| Coating | PE, PVDF, Epoxy | N/A |
Common Aluminum Alloys for Construction
Different parts of a building require different strengths and flexibilities. Here is a guide to the alloys used in Aluminum Coil Applications in Roofing and Construction.
| Alloy Series | Strength Level | Best Application |
|---|---|---|
| 1xxx Series | Moderate | Flashing, light roofing, heat insulation |
| 3xxx Series | High (Manganese) | Standard roofing, siding, gutters |
| 5xxx Series | Very High (Magnesium) | Marine environments, heavy-duty structures |
Key Aluminum Coil Product Types
We offer several types of aluminum coils tailored for specific construction needs.

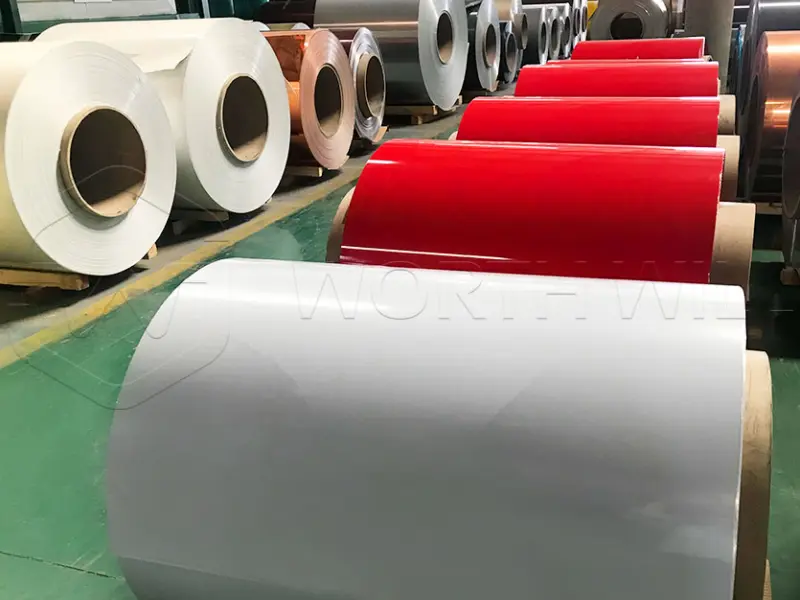

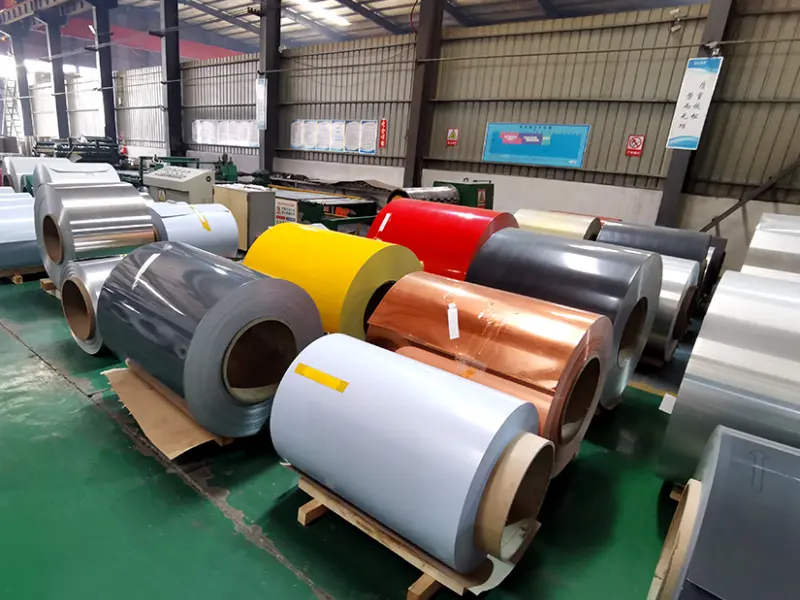

1. Prepainted (Color-Coated) Aluminum Coil
This is the “star” product for roofing. We apply high-quality paint (PE or PVDF) to the aluminum surface. It comes in thousands of colors and can mimic wood or stone textures.
- PVDF Coating: Best for outdoor use; lasts over 20 years without fading.
- PE Coating: Great for indoor ceilings or areas with less UV exposure.
2. Stucco Embossed Aluminum Coil
Through a rolling process, we create a textured pattern on the surface. This increases the surface area and adds structural rigidity.
- Use Case: Often used for cold storage room walls, ductwork, and anti-slip flooring.
3. Mill Finish Aluminum Coil
This is raw aluminum as it comes from the rolling mill. It has a bright, metallic shine.
- Use Case: Typically used as a base for further processing or for hidden structural components where aesthetics don’t matter.
Why Choose Aluminum Coil for Building Projects?
Aluminum has many natural benefits. When you compare it to galvanized steel, aluminum lasts much longer in wet or salty air.
Key Benefits of Aluminum in Architecture
- Corrosion Resistance: It does not rust. This is perfect for buildings near the ocean.
- Lightweight: Aluminum is about one-third the weight of steel. It makes installation easy and fast.
- Flexibility: You can bend and shape aluminum coils into many designs without breaking the metal.
- High Reflectivity: It reflects heat from the sun. This keeps the building cool and saves money on energy bills.
- Recyclability: It is an eco-friendly metal. You can recycle it many times.
Main Specifications of Aluminum Coils
Before buying, you need to know the technical details. We provide various sizes and types to fit different construction needs.
Basic Product Specification Table
| Item | Details and Ranges |
|---|---|
| Alloy Series | 1000, 3000, 5000 series |
| Common Alloys | 1050, 1100, 3003, 3105, 5005, 5052 |
| Temper | O, H12, H14, H16, H18, H24, H26 |
| Thickness | 0.2 mm to 4.0 mm |
| Width | 20 mm to 2000 mm |
| Surface Treatment | Mill finish, Color coated, Embossed, Anodized |
| Coating Material | PE (Polyester) or PVDF (Fluorocarbon) |
| Standard | ASTM-B209, EN485, GB/T 3880 |
Popular Alloy Types for Roofing and Walls
Not all aluminum is the same. Different alloys have different strengths. In construction, we mainly use the 1000, 3000, and 5000 series.
The 1000 Series: Pure Aluminum Coil
The 1100 and 1050 alloys are almost pure aluminum. They are very soft and easy to shape.
- Best for: Flashings, decorative trims, and insulation jackets.
- Benefit: It has the best corrosion resistance but lower strength.
The 3000 Series: The Best Choice for Roofing
The 3003 and 3105 alloys are the most popular for roofing. We add manganese to the aluminum to make it stronger.
- Best for: Roofing sheets, siding, and gutters.
- Benefit: It is 20% stronger than the 1000 series. It handles wind and snow very well.
The 5000 Series: Marine Grade Strength
The 5005 and 5052 alloys contain magnesium. These are very tough.
- Best for: Buildings in coastal areas or high-end curtain walls.
- Benefit: It resists salt-water corrosion better than any other building metal.
Comparing Common Construction Alloys
Choosing the right alloy saves money. Use this table to see the differences between the three main types.
Alloy Performance Comparison
| Alloy Type | Strength Level | Corrosion Resistance | Formability | Typical Use |
|---|---|---|---|---|
| 1100 | Low | Excellent | Very High | Flashings, Trims |
| 3003 | Medium | Very Good | High | Standard Roofing |
| 3105 | Medium | Very Good | High | Mobile Homes, Siding |
| 5005 | High | Excellent | Medium | High-end Facades |
| 5052 | Very High | Best | Medium | Coastal Buildings |
Different Surface Types of Aluminum Coils
In construction, the look of the metal is just as important as its strength. We offer three main surface finishes.
Mill Finish Aluminum Coil
This is the raw metal directly from the rolling mill. It is shiny but will turn dull over time as it oxidizes. It is the cheapest option and is often used for hidden parts of a building.

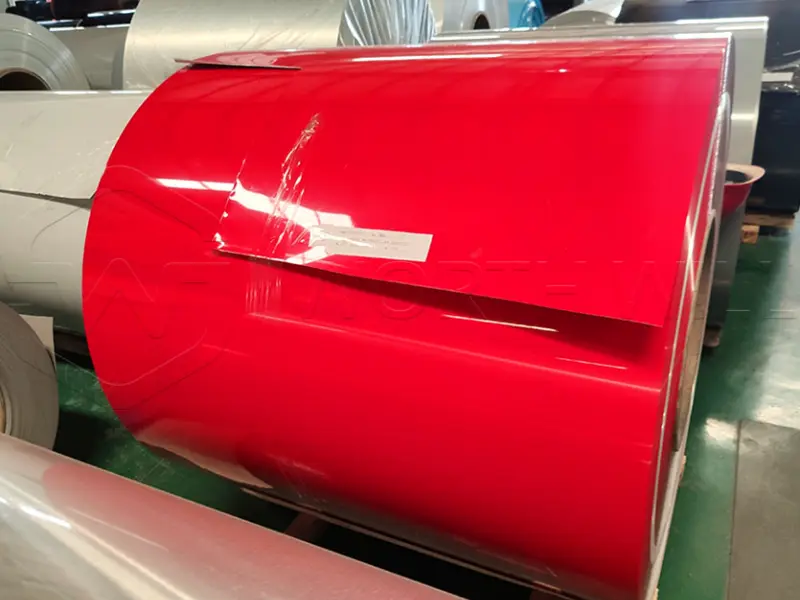

Color Coated (Prepainted) Aluminum Coil
We apply paint to the coil in our factory. This is the most popular choice for modern roofs.
- PE Coating: Good for indoor use or mild climates. It lasts 10 to 15 years.
- PVDF Coating: Best for outdoor use. It resists UV rays and harsh weather for over 20 years.
Stucco Embossed Aluminum Coil
We use a roller to press a pattern into the surface. The pattern looks like orange peel or a diamond shape.
- Why use it: It hides scratches and reduces glare from the sun. It also makes the metal slightly stiffer.
Major Applications in the Building Industry
Aluminum coil is everywhere in modern construction. Here are the most common ways our customers use this product.
Roofing Systems
Aluminum is the best material for “Standing Seam” roofs.

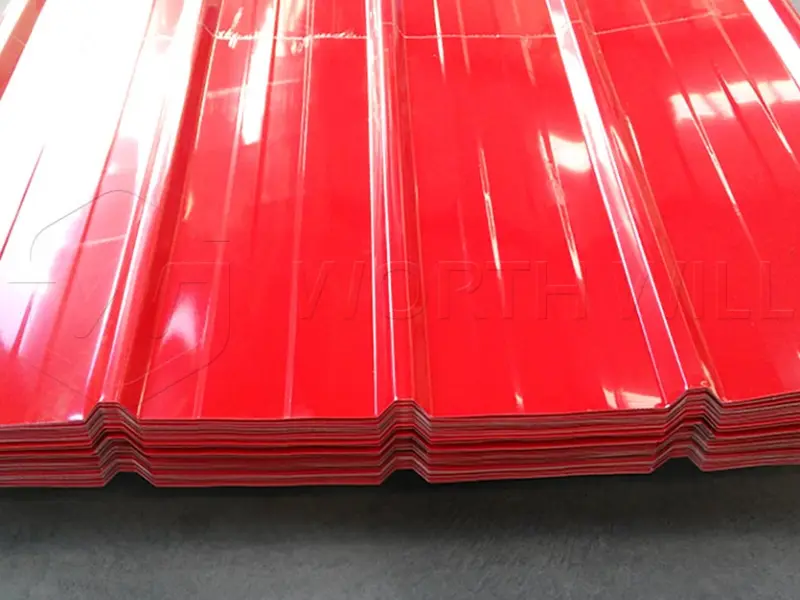

- Corrugated Sheets: Used for warehouses and factories.
- Roof Tiles: Pressed aluminum can look like traditional clay tiles but is much lighter.
- Flashings: Used around chimneys and roof edges to stop water leaks.

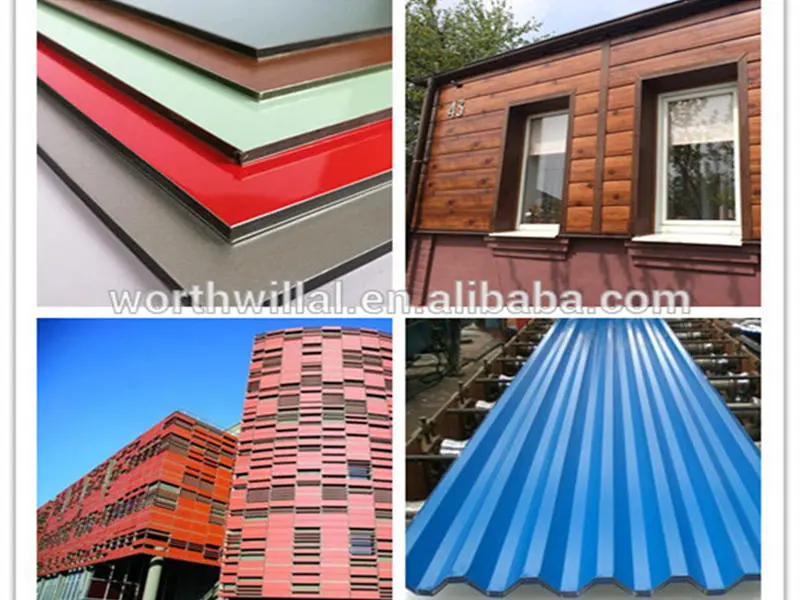

Wall Cladding and Facades
Architects use aluminum coils to make the outside of buildings look modern.
- Aluminum Composite Panels (ACP): Two thin aluminum layers with a plastic core.
- Solid Panels: Thick aluminum sheets used for high-rise building exteriors.
Rainwater Systems
Aluminum does not rust when it touches water. This makes it perfect for moving rain away from a house.
- Gutters: Seamless gutters are made on-site from long aluminum coils.
- Downspouts: Pipes that carry water from the roof to the ground.
Interior Decoration
Inside buildings, aluminum adds a clean and professional look.
- Ceiling Tiles: Used in airports, offices, and hospitals.
- Partition Walls: Lightweight frames and panels for office spaces.
Technical Data: Coating and Dimensions
If you are a contractor, you need specific numbers for your project planning.
Coating Specifications
| Coating Feature | PE (Polyester) | PVDF (Fluorocarbon) |
|---|---|---|
| Coating Thickness | 15−20 microns | 25−35 microns |
| Gloss Level | 10%−90% | 20%−40% |
| Pencil Hardness | ≥2H | ≥1H |
| Adhesion | Grade 0 | Grade 0 |
| Salt Spray Test | ≥500 hours | ≥1000 hours |
Common Sizes for Different Uses
| Application | Recommended Thickness | Recommended Alloy |
|---|---|---|
| Residential Roof | 0.6 mm−0.8 mm | 3003 H14 |
| Industrial Roof | 0.8 mm−1.2 mm | 3004 / 3105 |
| Gutter Systems | 0.5 mm−0.7 mm | 3105 H24 |
| ACP Panels | 0.2 mm−0.5 mm | 1100 / 3003 |
| Insulation Pipe | 0.3 mm−0.5 mm | 1050 / 1060 |
Comparison: CC Material vs. DC Material for Construction
When you buy aluminum coil, you will hear about CC (Continuous Cast) and DC (Direct Chill) material.
CC Aluminum Coil (Cold Rolled)
- Production: The metal is cast and rolled quickly.
- Properties: Lower elongation.
- Best for: Simple roofing, gutters, and siding where the metal doesn’t need deep bending.
- Cost: Cheaper.
DC Aluminum Coil (Hot Rolled)
- Production: The metal starts as a thick ingot, is heated, and then rolled.
- Properties: High elongation and better surface quality.
- Best for: Complex shapes, deep-drawn parts, and high-quality color coating.
- Cost: Slightly higher.
How to Calculate the Area of an Aluminum Coil
In construction, we often need to know how many square meters (m2) a coil can cover.
The Area Formula
Let A be the area in square meters.
Let Wtotal be the total weight of the coil in kilograms.
For Let t be the thickness in millimeters.
Let w be the width in millimeters.
Let ρ be the density (2.71).
The simplified formula to find the area for a given weight is:
A=t×2.71Wtotal
(Note: Area is independent of width for total coverage calculation per kg.)
Calculation Example
If you have a 5000 kg coil that is 0.8 mm thick:
A=0.8×2.715000=2.1685000≈2306.27 m2
This coil can cover about 2306 square meters of roof.
Quality Control for Construction Grade Aluminum
We ensure our products meet international building codes. We perform several tests before shipping.
Key Quality Tests
- T-Bend Test: We bend the painted metal 180 degrees to make sure the paint does not crack.
- Cross-Hatch Test: We scratch the surface to check how well the paint sticks to the aluminum.
- Color Uniformity: We use a computer to ensure the color is the same across the whole coil.
- Thickness Check: We use digital micrometers to ensure the metal is not too thin.
Specific Aluminum Coil Applications in Roofing
Roofing is the most common use for our coils. Because aluminum is easy to bend and shape, it fits various architectural styles.

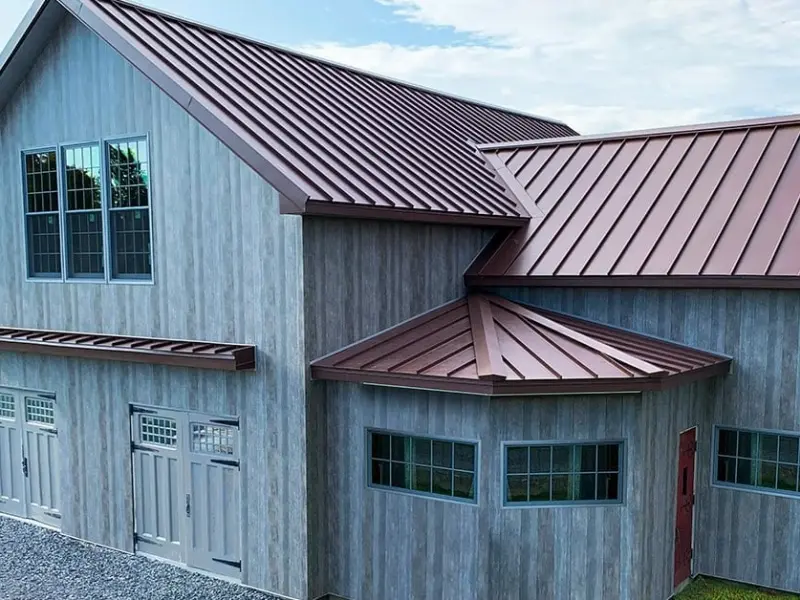

Standing Seam Roofing
Standing seam roofs use long, continuous panels made from aluminum coils. The seams are raised above the level of the roofing surface to prevent leaks.
- Benefit: No exposed fasteners, meaning fewer chances for water to enter.
Aluminum Gutters and Downspouts
Gutters must handle constant water contact. Since aluminum does not rust, it is the perfect material for rain drainage systems.
- Standard Thickness: Usually 0.6mm to 0.8mm.
Aluminum Shingles and Tiles
For a traditional look, aluminum coils can be stamped into the shape of classic clay tiles or wooden shingles.
- Benefit: Much lighter than clay, reducing the weight on the house frame.
Aluminum Coil Applications in Building Facades and Interiors
Beyond the roof, aluminum coils are essential for the “envelope” of the building.
- ACP (Aluminum Composite Panels): Two thin layers of aluminum coil bonded to a polyethylene core. Used for modern office building exteriors.
- Soffits and Fascia: Used to finish the edges of roofs. Aluminum prevents rot in these hard-to-reach areas.
- Ceiling Systems: Lightweight aluminum strips or tiles are used in airports and malls for fireproof, stylish ceilings.
- Wall Cladding: Large panels of color-coated aluminum provide a sleek, industrial look to warehouses and showrooms.
Comparison of Coating Types for Construction
If you are choosing a color-coated coil for a project, the coating type is the most important factor for longevity.
| Coating Type | Durability (Years) | UV Resistance | Cost |
|---|---|---|---|
| PE (Polyester) | 5−10 | Moderate | Low |
| PVDF (Fluorocarbon) | 20+ | Excellent | High |
| HDP (High Durability) | 12−15 | Good | Medium |
How We Support Your Construction Business
Our company is more than just a supplier; we are your partner in high-quality construction materials. We provide a wide range of aluminum products to ensure you can source everything in one place.
Precision Slitting and Cutting
We don’t just sell big coils. We can slit coils into narrow strips (as small as 20mm) for gutter production or cut them into flat sheets for wall panels.
Diverse Product Portfolio
In addition to coils, we provide:
- Aluminum Sheets: Perfect for heavy-duty construction plates.
- Aluminum Foil: Used for building insulation and moisture barriers.
- Aluminum Tread Plate: For stairs, ramps, and toolbox construction.
- Aluminum Jacketing: For protecting insulated pipes in industrial buildings.
Quality Assurance
Every coil we ship comes with a Material Test Certificate (MTC). We test for:
- T-Bend Test: Ensures the paint doesn’t crack when the metal is bent.
- Impact Test: Checks the durability of the surface.
- Salt Spray Test: Simulates years of coastal weather to ensure corrosion resistance.
Digital Ordering Guide for Aluminum Coils
To help you order the right product, use this checklist for your inquiry:
- Alloy & Temper: (e.g., 3003−H14)
- Thickness: (e.g., 0.7mm)
- Width: (e.g., 1200mm)
- Coating Type: (e.g., PVDF, 2 coats)
- Color Code: (e.g., RAL 9006 Silver)
- Quantity: (e.g., 20 Metric Tons)
FAQ: Common Questions About Aluminum Coils
Is aluminum roofing noisy when it rains?
Many people worry about noise. However, if you install the aluminum over a solid deck with an underlayment (insulation), it is no noisier than a tile or shingle roof. The insulation absorbs the sound of the rain.
How long does a color-coated aluminum roof last?
A high-quality PVDF coated aluminum roof can last between 30 to 50 years. The aluminum itself will not rot or rust. Only the paint might slowly fade after many decades of sun exposure.
Can I walk on an aluminum roof?
Yes, you can walk on it, but you must be careful. It is best to wear soft-soled shoes and step only where the roof is supported by the frame (purlins). Aluminum is light, so it can dent if you apply too much weight in the wrong spot.
Which is better: PE or PVDF coating?
For roofing and outdoor walls, PVDF is better. It resists chemicals, pollution, and UV rays. For indoor ceilings or temporary structures, PE is better because it is cheaper and looks great inside.
Does aluminum roofing attract lightning?
No. Aluminum is a good conductor of electricity, but it does not “attract” lightning more than any other metal or material. If lightning hits a building, a metal roof helps the electricity spread out and travel safely to the ground.
Q: Is aluminum roofing noisy during rain?
A: No. When installed with proper insulation and solid sheathing, aluminum roofing is no louder than any other roofing material.
Q: Can I walk on an aluminum roof?
A: Yes, but you should follow the manufacturer’s guidelines on where to step (usually over the supports) to avoid denting the panels.
Q: How does the price of aluminum compare to steel for roofing?
A: The initial cost of aluminum is higher than galvanized steel. However, because it lasts twice as long and requires no maintenance, the “lifetime cost” of aluminum is much lower.
Aluminum Coil Applications in Roofing and Construction
The Aluminum Coil Applications in Roofing and Construction are diverse and growing every year. Whether you are building a seaside villa or a massive industrial complex, aluminum provides the perfect balance of beauty, strength, and environmental responsibility.
As a leading aluminum supplier, we are ready to provide the specific sizes and coatings your project requires. With our advanced production lines and strict quality control, your building will stand the test of time.
Buying Tips for Aluminum Coils
- Check the Alloy: Always confirm if you need 3003 (standard) or 5052 (marine grade).
- Specify the Coating: Ask for PVDF if the building is in a sunny or rainy area.
- Ask for Samples: Check the color and thickness before placing a large order.
- Packaging: Make sure the coils are packed with moisture-proof paper for sea shipping.
Contact our team today for a wholesale quote on premium aluminum coils for your next construction project!
