016 Aluminum Jacketing: Industry Standard for Insulation Protection

Introduction to .016 Aluminum Jacketing

In industrial and commercial settings, maintaining the integrity and efficiency of insulation systems on pipes, ducts, tanks, and vessels is crucial. This is where 016 aluminum jacketing plays a vital role.

The “016” refers to its thickness in inches (approximately 0.4 mm), a widely adopted standard that balances durability, flexibility, and cost-effectiveness. This robust material acts as a protective shield, guarding the underlying thermal and acoustic insulation from mechanical damage, harsh weather, UV radiation, and corrosive elements.

What Does “016” Mean for Aluminum Jacketing?

The “.016” in .016 aluminum jacketing signifies its thickness in inches. This translates to roughly 0.406 millimeters. This specific gauge has become a preferred standard across various industries due to its optimal balance of characteristics:

• Durability: Provides substantial protection against physical impact and wear without being overly heavy or difficult to handle.
• Flexibility: While strong, it remains pliable enough for easy cutting, forming, and wrapping around diverse insulated surfaces.
• Cost-Effectiveness: Offers excellent protective qualities at a more economical price point compared to thicker gauges, making it a budget-friendly option for large projects.

This precise thickness ensures .016 aluminum jacketing is a versatile and reliable choice for many applications.

Standard Specification for Aluminum Jacketing for Insulation

The performance and quality of aluminum jacketing for insulation are governed by industry standards to ensure consistency and reliability. In North America, ASTM B209 is a key specification covering aluminum sheet and plate. For insulation jacketing, industry practices often refer to general requirements for physical and chemical properties. Key aspects typically covered in specifications include:

Specification Aspect	Description
Alloy Type	Chemical composition, e.g., 3003, 3105, 1100, 5005.
Temper	Hardness and strength of the aluminum, e.g., H14, H16.
Thickness	Nominal thickness, such as .016 inches (0.406 mm).
Surface Finish	Texture, e.g., mill finish, stucco embossed, smooth.
Moisture Barrier	If included, type and properties of the barrier, e.g., Polyfilm Moisture Barrier.

Adhering to these specifications ensures that the aluminum jacketing will perform reliably in its intended environment.

---

Common Alloys for 016 Aluminum Jacketing

The chosen aluminum alloy significantly impacts the performance of .016 aluminum jacketing. Here are the most commonly used alloys:

Alloy	Key Characteristics	Typical Use for .016 Jacketing
1100	Commercially pure aluminum, excellent corrosion resistance, high ductility, lower strength.	General-purpose jacketing where high strength isn’t critical, easy to form.
3003	Aluminum-manganese alloy, good strength-to-weight ratio, excellent corrosion resistance, very good workability.	Most common choice for .016 aluminum jacketing, versatile for many industrial settings.
3105	Similar to 3003, but with slightly higher strength and good formability.	Used when slightly more rigidity or strength is required than 3003.
5005	Aluminum-magnesium alloy, excellent corrosion resistance (especially marine environments), good weldability, moderate strength.	For coastal, marine, or highly corrosive industrial environments.

---

016 Aluminum Jacketing for industrial insulation systems

Aluminum jacketing is a protective aluminum covering material widely used for industrial insulation systems. It is designed to protect insulation layers from moisture, weather, mechanical damage, and corrosion.

Because aluminum is lightweight, durable, and easy to fabricate, aluminum jacketing is commonly used in pipelines, tanks, vessels, HVAC systems, and industrial facilities.

A complete aluminum jacketing system usually includes:

Industrial Equipment
        ↓
Insulation Material
        ↓
Aluminum Jacketing Layer
        ↓
Weather & Corrosion Protection

The outer aluminum layer helps maintain insulation performance and extends the service life of industrial equipment.

---

What Is Aluminum Jacketing?

Aluminum jacketing is a thin aluminum sheet or coil used as an external protective cover for insulated equipment.

Unlike ordinary aluminum sheets, aluminum jacketing is designed with specific surface treatments and mechanical properties for insulation applications.

Item	Description
Product Name	Aluminum Jacketing
Material	Aluminum Alloy Sheet / Coil
Thickness	0.016″ – 0.063″
Width	914mm – 1524mm
Surface	Smooth, Stucco Embossed, Corrugated
Temper	H14, H16, H24, H26
Application	Pipe, Tank, HVAC, Industrial Insulation

---

Why Aluminum Is Used for Insulation Jacketing

Aluminum has several properties that make it suitable for protective insulation covers.

Property	Performance
Weight	Lightweight
Corrosion Resistance	Excellent
Fabrication	Easy cutting and forming
Thermal Performance	Good reflection ability
Maintenance	Low

The combination of strength and light weight makes aluminum jacketing a preferred choice for industrial insulation projects.

---

Aluminum Jacketing Material Structure

A typical insulation protection system works as follows:

Rain / Weather
       ↓
Aluminum Jacketing
       ↓
Moisture Barrier
       ↓
Insulation Layer
       ↓
Pipe or Equipment

The aluminum surface prevents external damage while helping the insulation maintain stable performance.

---

Common Aluminum Alloys for Jacketing

Different aluminum alloys provide different performance levels.

Alloy	Main Feature	Typical Use
1050 Aluminum	High purity, excellent corrosion resistance	General insulation covers
1060 Aluminum	Good formability	Pipe insulation
3003 Aluminum	Better strength and durability	Industrial applications
3105 Aluminum	Good corrosion resistance	Building insulation
5052 Aluminum	Higher strength	Marine and harsh environments

---

3003 Aluminum Jacketing vs 1060 Aluminum Jacketing

Two common choices are 1060 and 3003 aluminum.

Feature	1060 Aluminum	3003 Aluminum
Strength	Medium	Higher
Formability	Excellent	Good
Corrosion Resistance	Excellent	Excellent
Cost	Lower	Slightly Higher
Application	Standard insulation	Heavy-duty projects

Selection depends on the environment and mechanical requirements.

---

Aluminum Jacketing Temper Options

The temper affects hardness and processing performance.

Temper	Feature	Suitable For
H14	Half hard condition	General forming
H16	Higher strength	Industrial applications
H24	Good balance	Pipe jacketing
H26	Higher hardness	Mechanical protection

For most insulation projects, H14 and H24 aluminum jacketing are commonly selected.

---

Aluminum Jacketing Thickness Guide

Thickness selection depends on the equipment size and environmental conditions.

Thickness	Inch	Typical Use
0.016″	0.4mm	Indoor insulation
0.020″	0.5mm	Standard pipe protection
0.024″	0.6mm	Industrial piping
0.032″	0.8mm	Heavy-duty insulation
0.040″	1.0mm	Large equipment protection
0.063″	1.6mm	Special industrial applications

---

Smooth Aluminum Jacketing and Stucco Embossed Aluminum Jacketing

Aluminum jacketing is available with different surface designs.

Smooth Aluminum Jacketing

Feature	Description
Surface	Flat and clean
Appearance	Modern appearance
Cleaning	Easy
Use	Indoor and outdoor projects

Common uses:

• HVAC systems
• Food processing plants
• Clean environments

---

Stucco Embossed Aluminum Jacketing

Stucco embossed aluminum jacketing has a textured surface that improves appearance and hides minor scratches.

Feature	Description
Surface	Embossed pattern
Appearance	Decorative
Durability	Good scratch resistance
Use	Outdoor insulation systems

Common uses:

• Industrial pipelines
• Storage tanks
• Power plants

---

Aluminum Jacketing Surface Comparison

Type	Surface	Advantage
Mill Finish	Natural aluminum	Economical
Stucco Embossed	Textured surface	Better appearance
Polished	Bright surface	Decorative
Painted	Color coated	Special design

Aluminum Jacketing Product Types

Different projects require different aluminum jacketing forms.

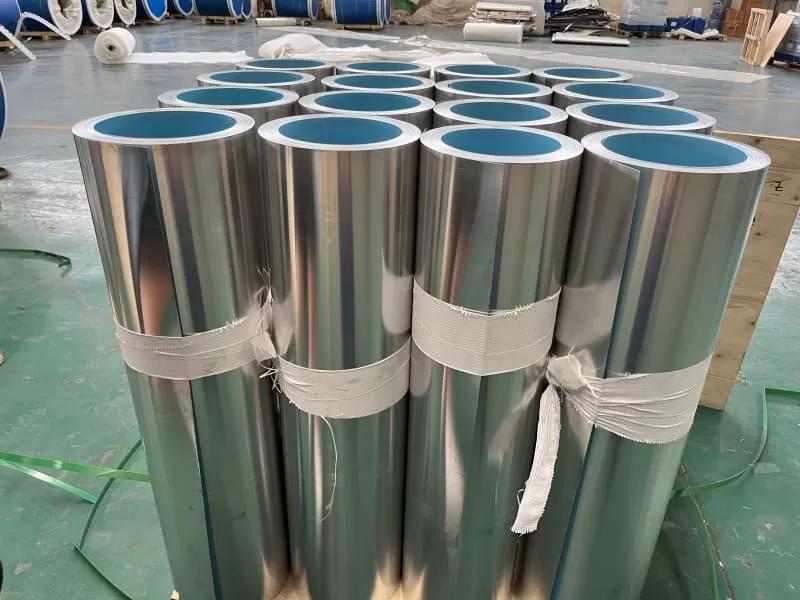

Aluminum Jacketing Coil

Aluminum coil is supplied in continuous rolls.

Feature	Detail
Width	914mm-1524mm
Thickness	0.016″-0.063″
Advantage	Easy cutting and processing

Suitable for:

• Large insulation projects
• Factory processing
• Custom fabrication

---

Aluminum Jacketing Sheet

Pre-cut aluminum sheets are convenient for installation.

Size	Common Use
1000 x 2000mm	Small equipment
1220 x 2440mm	General projects
Custom size	Special applications

---

Corrugated Aluminum Jacketing

Corrugated aluminum provides higher rigidity.

Flat Sheet
     ↓
Corrugation Process
     ↓
Higher Mechanical Strength

Used for:

• Large diameter pipes
• Outdoor equipment
• Heavy industrial insulation

---

Aluminum Jacketing for Pipe Insulation

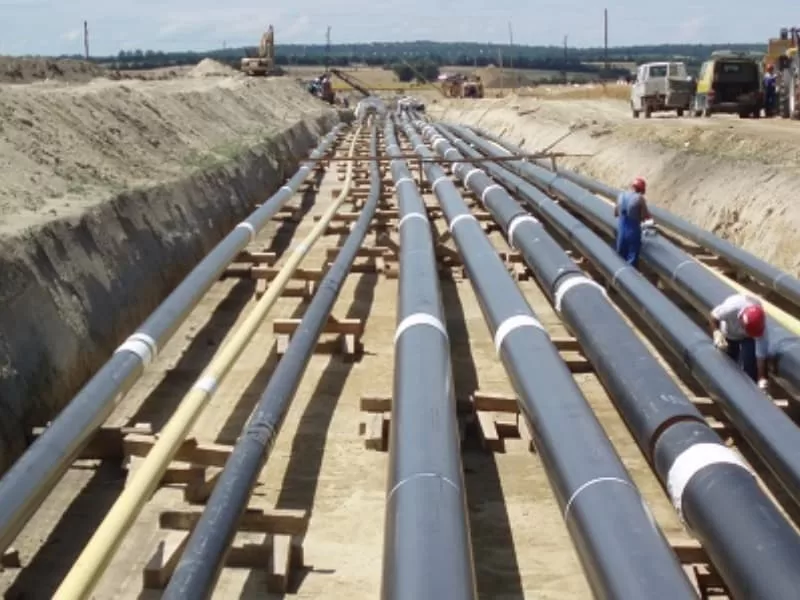

Pipe insulation is one of the largest applications.

The structure:

Pipe
 ↓
Insulation Material
 ↓
Aluminum Pipe Jacketing
 ↓
Protection Layer

Common industries:

• Oil and gas
• Chemical plants
• Power generation
• Manufacturing facilities

---

Aluminum Jacketing for Tanks and Vessels

Large tanks require strong external protection.

Common equipment:

Equipment	Aluminum Jacketing Use
Storage Tanks	Exterior protection
Pressure Vessels	Insulation protection
Chemical Tanks	Corrosion prevention
Industrial Equipment	Weather protection

---

Aluminum Jacketing Compared With Other Materials

The Aluminum Jacketing vs Stainless Steel Jacketing

Feature	Aluminum	Stainless Steel
Weight	Light	Heavy
Corrosion Resistance	Excellent	Excellent
Cost	Lower	Higher
Installation	Easy	More difficult

---

Aluminum Jacketing vs PVC Jacketing

Feature	Aluminum	PVC
Temperature Resistance	Excellent	Medium
Fire Resistance	Better	Lower
Outdoor Durability	High	Medium
Strength	Higher	Lower

---

How to Choose Aluminum Jacketing

Selection process:

Application Environment
          ↓
Choose Alloy
          ↓
Select Thickness
          ↓
Choose Surface Type
          ↓
Confirm Size
          ↓
Production

Important factors:

Consideration	Example
Temperature	High temperature equipment
Environment	Outdoor / indoor
Mechanical Protection	Impact risk
Appearance	Smooth or embossed

---

Aluminum Jacketing Manufacturing Process

Aluminum Coil
       ↓
Rolling
       ↓
Annealing
       ↓
Surface Treatment
       ↓
Embossing (Optional)
       ↓
Cutting
       ↓
Quality Inspection
       ↓
Packing

Quality inspection usually includes:

Inspection Item	Purpose
Thickness Test	Confirm specification
Surface Check	Avoid defects
Mechanical Test	Check strength
Dimension Test	Ensure accuracy

---

How to Buy Aluminum Jacketing From a Manufacturer

A professional supplier should provide:

Requirement	Details
Alloy Certificate	Material confirmation
Thickness Control	Accurate measurement
Surface Quality	No damage
Custom Size	Project requirements
Export Packing	Safe transportation

Purchase process:

Send Inquiry
      ↓
Confirm Alloy & Thickness
      ↓
Select Surface
      ↓
Receive Quotation
      ↓
Production
      ↓
Inspection
      ↓
Shipment

---

Main Industrial Uses of Aluminum Jacketing

Aluminum jacketing is widely used in:

• Oil and gas pipelines
• Chemical processing plants
• Power stations
• HVAC insulation systems
• Food processing facilities
• Pharmaceutical factories
• Marine equipment
• Industrial tanks
• Refineries

---

Aluminum Jacketing Specification Table

Product	Alloy	Thickness	Surface
Pipe Jacketing	1060 / 3003	0.016″-0.032″	Smooth
Tank Jacketing	3003 / 3105	0.032″-0.063″	Stucco Embossed
HVAC Jacketing	1050 / 1060	0.020″-0.032″	Smooth
Heavy Duty Cover	3003 / 5052	0.040″-0.063″	Embossed

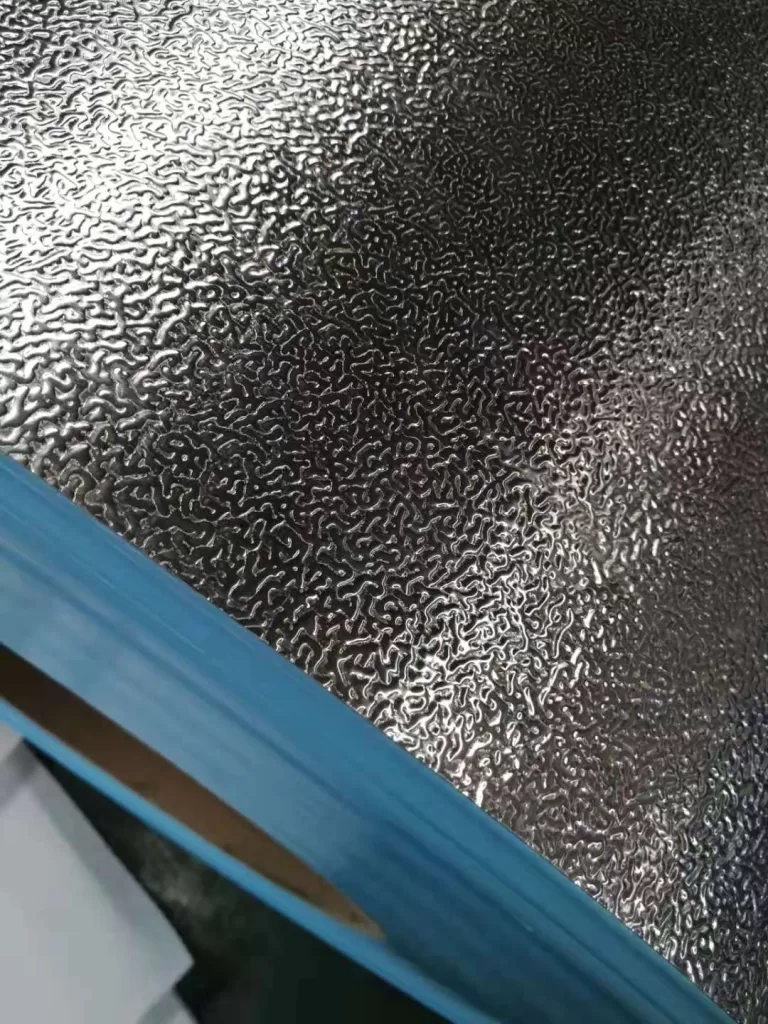

016 Stucco Embossed Aluminum Jacketing

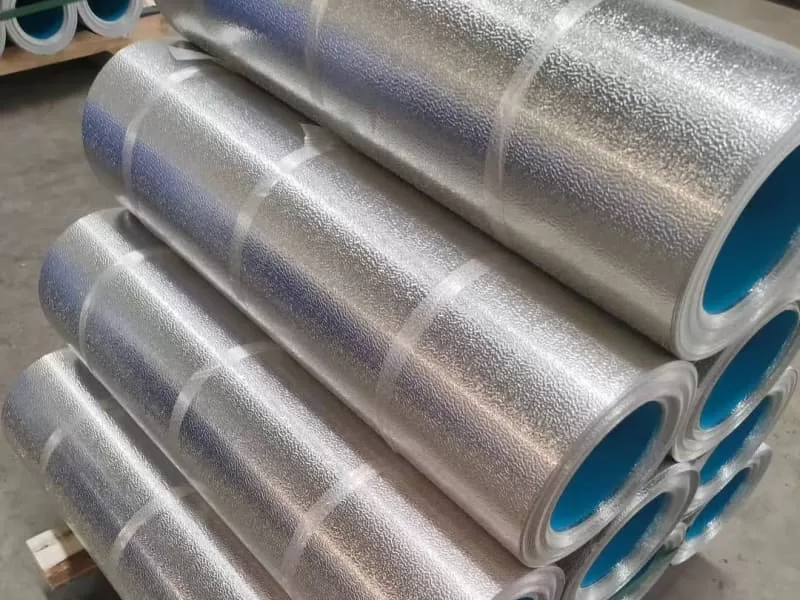

One of the most prevalent forms of this product is .016 stucco embossed aluminum jacketing. The “stucco embossed” finish features a textured pattern pressed into the aluminum surface. This finish provides several practical advantages:

• Reduced Glare: The textured surface diffuses light, minimizing reflections, which is ideal for outdoor installations and reduces eye strain.
• Increased Rigidity: The embossing process slightly stiffens the material, making it less prone to buckling and easier to handle during installation.
• Hides Minor Imperfections: The pattern effectively masks small dents, scratches, or oil canning, maintaining a clean and professional appearance over time.
• Enhanced Aesthetics: Provides a consistent and uniform look to insulated systems.

A common size example is .016 x 36″ x 100′ stucco embossed aluminum, which specifies the thickness, a common width (36 inches), and a standard roll length (100 feet).

---

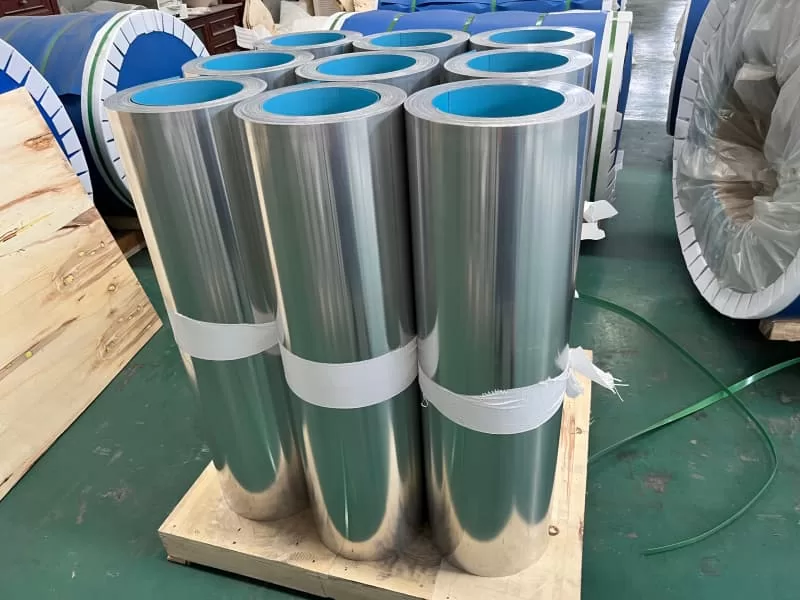

Aluminum Roll Jacketing

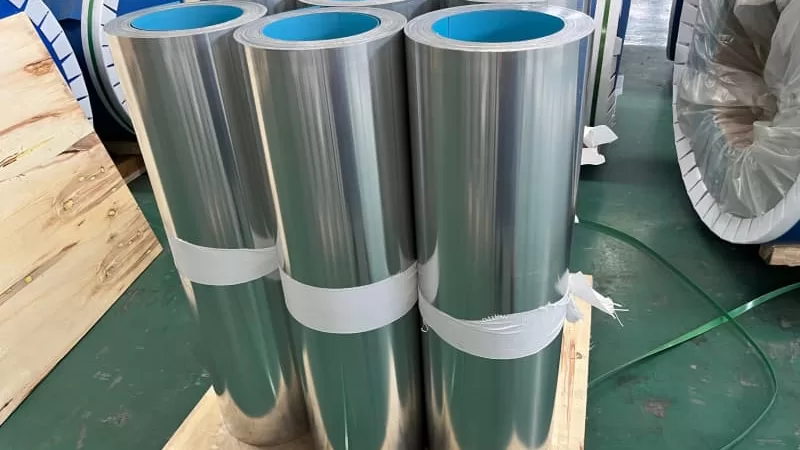

Aluminum roll jacketing is the most common form in which .016 aluminum jacketing is supplied. It comes wound onto sturdy cores, making it easy to transport, unroll, and cut to specific lengths on-site. The continuous roll format minimizes waste and provides flexibility for covering various pipe and duct diameters.

Benefits of aluminum roll jacketing:

• Versatility: Adaptable for both large and small diameter pipes, as well as rectangular ducts.
• Efficiency: Allows installers to cut exact lengths, reducing material scrap and costs.
• Ease of Handling: Lighter than pre-cut sheets, facilitating transport and installation.
• Seamless Application: Can cover long runs with fewer seams, enhancing overall protection and appearance.

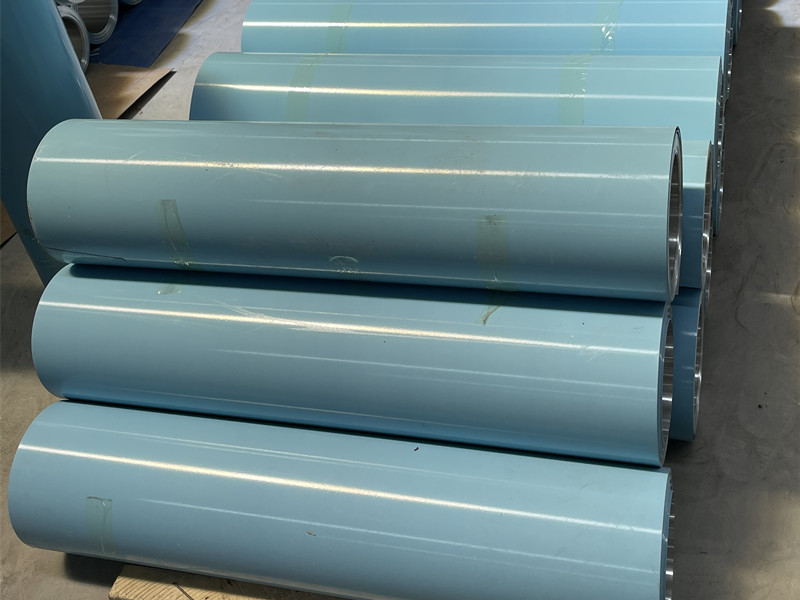

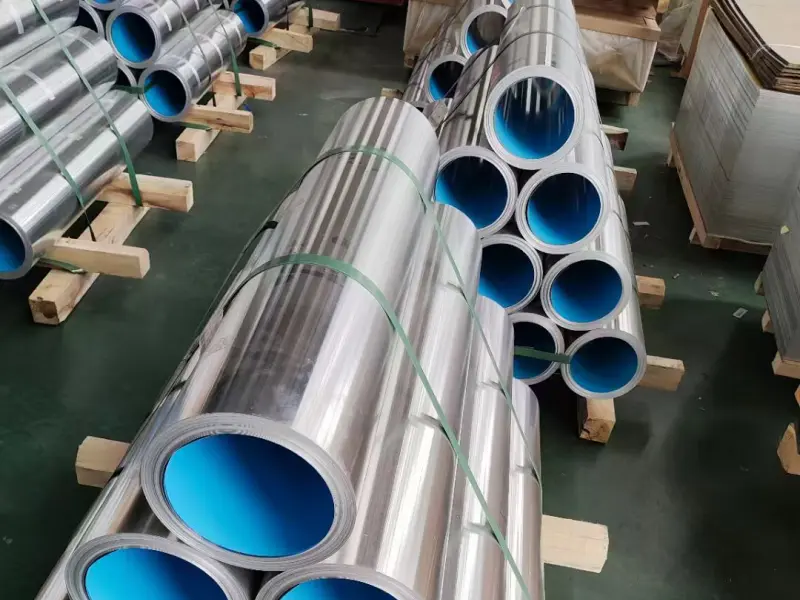

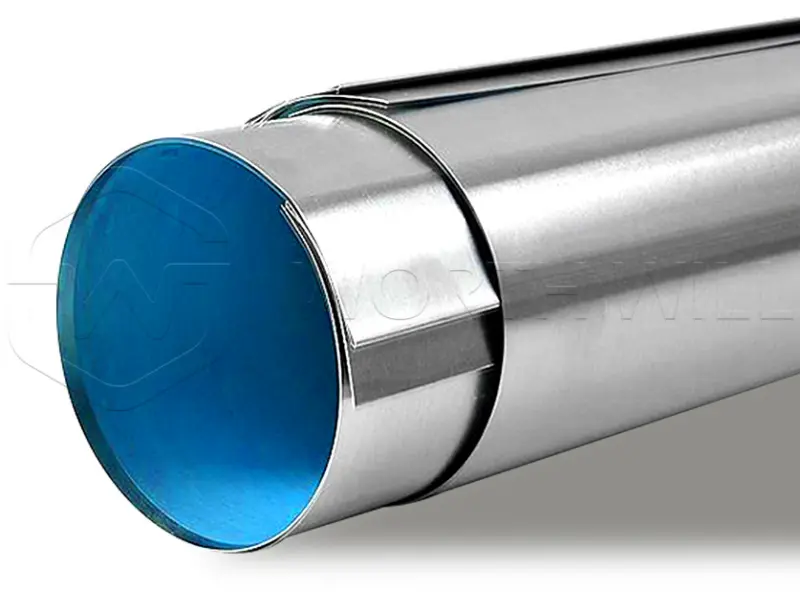

Aluminum Roll Jacketing with Polyfilm Moisture Barrier

For applications where moisture protection is paramount, Aluminum Roll Jacketing with Polyfilm Moisture Barrier is indispensable. A moisture barrier is a protective layer laminated to the interior surface of the aluminum jacketing. It serves two critical functions:

1. Prevents Galvanic Corrosion: Direct contact between aluminum and certain types of insulation (especially those containing chlorides or other corrosive agents), in the presence of moisture, can lead to galvanic corrosion. The barrier acts as an electrical insulator, preventing this destructive reaction.
2. Blocks Moisture Ingress: It forms an additional line of defense against water vapor, rain, and condensation, ensuring the insulation remains dry and effective.

Common polyfilm barriers include Polykraft (polyethylene laminated to kraft paper) or Polysurlyn (DuPont™ Surlyn® polymer film). For .016 aluminum jacketing, selecting the appropriate moisture barrier is crucial for long-term performance, particularly in outdoor or high-humidity environments.

Key Benefits of 016 Aluminum Jacketing

Choosing .016 aluminum jacketing offers numerous advantages for insulation systems:

Aesthetic Appeal: Provides a clean, professional finish, especially with stucco embossed or other special finish aluminum pipe jacketing.

Superior Protection: Shields insulation from physical impact, UV degradation, and environmental exposure.

Corrosion Resistance: Aluminum naturally forms a protective oxide layer, making it highly resistant to rust and various chemicals.

Lightweight: Easy to transport and install, contributing to reduced labor costs.

Durable: Withstands harsh conditions, extending the lifespan and performance of the insulation system.

Energy Efficiency: By protecting insulation, it helps maintain thermal performance, leading to significant energy savings.

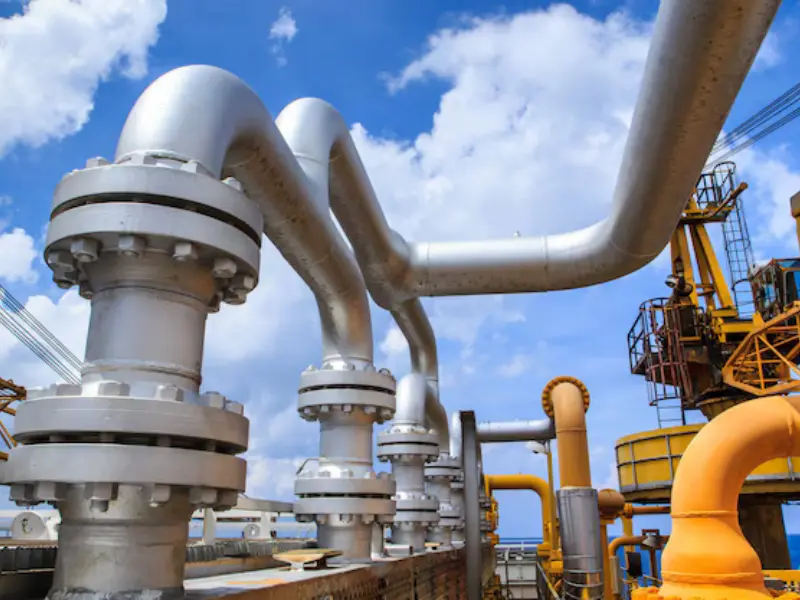

The Applications of Aluminum Jacket in Pipe Systems

The robust and versatile nature of .016 aluminum jacketing makes it suitable for a wide range of applications, often serving as the primary aluminum jacket for pipe insulation.

Marine & Offshore: Protecting piping on ships and offshore platforms from saltwater corrosion and extreme weather.

HVAC Systems: Protecting insulated air ducts, chilled water lines, and heating pipes in commercial buildings.

Oil & Gas Refineries: Safeguarding process piping, storage tanks, and vessels from harsh environments and potential damage.

Chemical Plants: Protecting insulated pipelines from corrosive atmospheres and chemical spills.

Power Generation: Covering steam lines, turbines, and associated pipework, crucial for thermal efficiency.

Industrial Facilities: For any exposed insulated piping or equipment requiring mechanical and weather protection.

Food & Beverage Industry: Maintaining sanitary conditions and thermal integrity of process lines.

Special Finish Aluminum Pipe Jacketing

While stucco embossed is widely popular, special finish aluminum pipe jacketing offers alternatives for specific aesthetic or functional requirements.

These special finishes allow for greater customization beyond the standard .016 stucco embossed aluminum jacketing.

Factory Production and Quality Assurance

A reputable factory producing 016 aluminum jacketing adheres to stringent quality control measures to ensure consistent, high-quality products. From sourcing prime aluminum coils to precise rolling, embossing, and barrier lamination, every step is critical. Factories ensure:

• Dimensional Accuracy: Consistent thickness (e.g., .016 inches), width (e.g., 36 inches), and length (e.g., 100 feet).
• Material Integrity: The correct alloy and temper are used for optimal performance.
• Finish Quality: Uniform stucco embossed pattern or flawless special finish.
• Barrier Adhesion: Secure lamination of the Polyfilm Moisture Barrier when specified.
• Compliance: Meeting relevant industry standards (like ASTM) and customer specifications.

Packaging and Delivery

Proper packaging is essential to ensure that 016 aluminum jacketing arrives at the job site in perfect condition.

• Roll Jacketing: Typically wound on sturdy cardboard or plastic cores, individually wrapped in moisture-resistant paper or film, and then often palletized or crated for bulk protection during transit.
• Edge Protection: Roll edges are protected with guards to prevent damage during handling and shipping.
• Labeling: Products are clearly labeled with specifications such as thickness, alloy, finish, and barrier type for easy identification.

FAQ

Q1: What is the main benefit of using .016 aluminum jacketing over thinner gauges?

A: .016 aluminum jacketing offers significantly enhanced durability and mechanical protection compared to thinner gauges. It strikes an excellent balance, providing robust defense against physical damage and environmental factors for industrial insulation without being overly heavy or difficult to handle.

Q2: Why choose stucco embossed over a smooth finish for .016 aluminum jacketing?

A: The stucco embossed finish for .016 aluminum jacketing offers several advantages: it reduces glare, increases the material’s rigidity, and effectively hides minor imperfections, scratches, and oil canning. This results in a more uniform and visually appealing finish suitable for many industrial and outdoor applications.

Q3: Is a Polyfilm Moisture Barrier always necessary for aluminum roll jacketing?

A: A Polyfilm Moisture Barrier is highly recommended and often essential for aluminum roll jacketing, especially in outdoor, humid, or corrosive environments. It prevents galvanic corrosion between the aluminum and insulation materials and protects the insulation from moisture ingress, which can severely degrade its thermal performance.

Q4: Can .016 aluminum jacketing be used for both pipes and ducts?

A: Yes, .016 aluminum jacketing is highly versatile and is commonly used as aluminum jacket for pipe insulation and for both rectangular and round ductwork. Its flexibility and ease of fabrication make it suitable for a wide range of insulated geometries.

Q5: What alloy is typically used for 016 aluminum jacketing?

A: The 3003 aluminum alloy is the most common choice for016 aluminum jacketing due to its excellent balance of corrosion resistance, moderate strength, and good workability. Other alloys like 1100, 3105, or 5005 may be used for specific applications requiring different characteristics.
