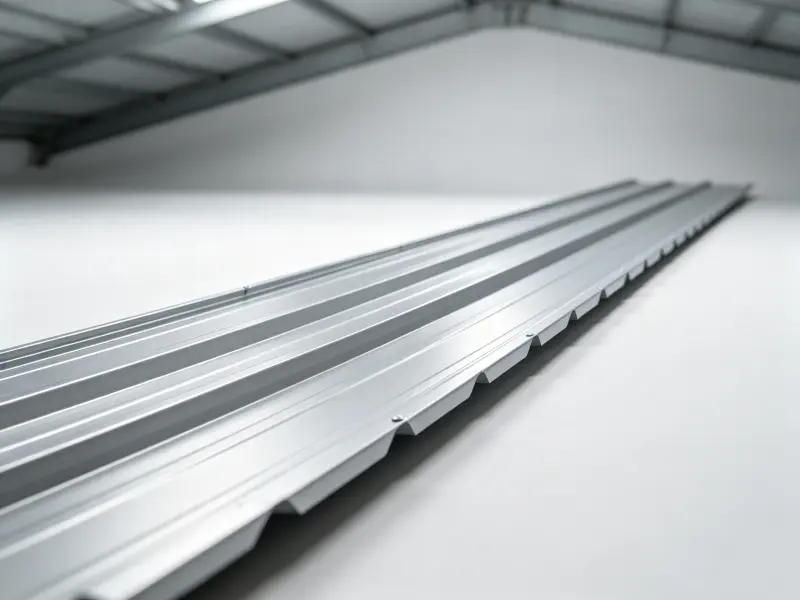

Long span aluminium roofing sheet is an aluminum roofing product designed for buildings that need long, continuous roof panels.
Compared with short roofing sheets, long span sheets can cover a larger roof area with fewer joints. This can make installation easier and give the roof a cleaner appearance.
Aluminum is also light and naturally resistant to corrosion. It has formed into different roofing profiles and supplied in different thicknesses, widths, colors and finishes.
Long span aluminium roofing sheet has uses for factories, warehouses, workshops, agricultural buildings, commercial buildings, garages, sports facilities and other large roof structures.
The sheet has supplied in long lengths according to the roof design.
A typical buying process is:
Roof Design → Profile → Alloy → Temper → Thickness → Width → Length → Coating → Quantity → Packing
What Is Long Span Aluminium Roofing Sheet?
Long span aluminium roofing sheet is a roofing sheet produced from aluminum coil and formed into a continuous or long-length profile.
The term “long span” usually refers to the ability to produce longer roofing panels with fewer transverse joints. The exact span between supports depends on the profile, thickness, load, wind conditions and structural design.
The sheet can be supplied as:
- Corrugated roofing sheet
- Trapezoidal roofing sheet
- Ribbed roofing sheet
- Standing seam roofing sheet
- Box profile sheet
- Deep corrugated sheet
- Custom roofing profile
The final product has selected according to the building structure and local weather conditions.
Why Choose Long Span Aluminum Roofing?
Long roofing panels can reduce the number of horizontal joints.
This is useful for large buildings where installation speed and roof appearance are important.
| Feature | Long Span Aluminium Roofing Sheet |
|---|---|
| Material | Aluminum |
| Weight | Light |
| Corrosion resistance | Good |
| Panel length | Custom |
| Joint quantity | Can be reduced |
| Profile | Corrugated, ribbed, trapezoidal and others |
| Surface | Mill finish, painted or coated |
| Application | Residential, commercial, industrial and agricultural |
Aluminum also has a relatively low density compared with steel.
This can help reduce the weight of roofing components, although the complete roof system must still be designed for the required loads.
Long Span Roofing Sheet Sizes
One important advantage of aluminum roofing is the ability to produce different lengths.
Common thicknesses include:
| Thickness | Typical Position |
|---|---|
| 0.40 mm | Light roofing |
| 0.50 mm | General roofing |
| 0.60 mm | Medium-duty roofing |
| 0.70 mm | Stronger roofing panels |
| 0.80 mm | Industrial roofing |
| 1.00 mm | Heavy-duty applications |
| 1.20 mm | Special structural requirements |
| 1.50 mm | Heavy architectural applications |
The actual thickness has selected according to the roof span, support spacing, wind load and installation system.
Common sheet widths can include:
| Width | Typical Use |
|---|---|
| 600 mm | Narrow roofing profile |
| 750 mm | Small and medium buildings |
| 900 mm | General roofing |
| 1000 mm | Industrial roofing |
| 1050 mm | Wide panel systems |
| 1200 mm | Large roof panels |
| 1250 mm | Coil-based production |
The effective cover width is usually smaller than the total width because of profile overlap.
Long Length Aluminum Roofing Panels
The length can be made according to the roof plan.
Examples may include:
2 m → 3 m → 4 m → 5 m → 6 m → 8 m → 10 m → 12 m
Longer panels have produced when the production line, transportation and installation conditions allow it.
The final length should consider:
- Roof slope
- Transportation
- Handling equipment
- Installation method
- Thermal movement
- Building dimensions
- Profile strength
For large warehouses, a long panel can sometimes run from the ridge area toward the eave with fewer horizontal joints.

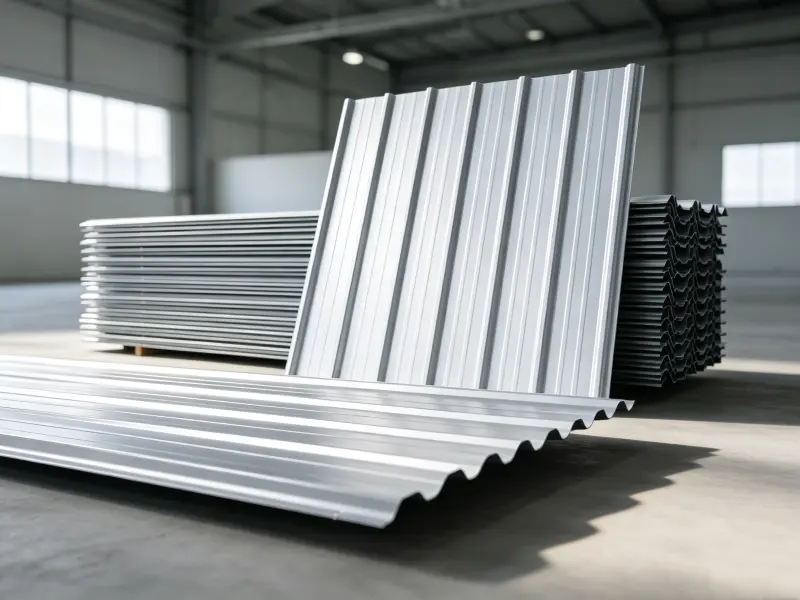

Different Types of Long Span Aluminium Roofing Sheet
The roofing profile has a direct effect on strength, drainage and appearance.
Corrugated Aluminium Roofing Sheet
Corrugated aluminum roofing sheet has repeated curved waves.
It is a simple and widely used profile.
Typical options can include:
| Profile | Approximate Wave Pattern |
|---|---|
| Small wave | 5–15 mm |
| Medium wave | 15–30 mm |
| Deep wave | 30–50 mm |
| Custom wave | Project specific |
The exact dimensions depend on the roll-forming machine and project requirements.

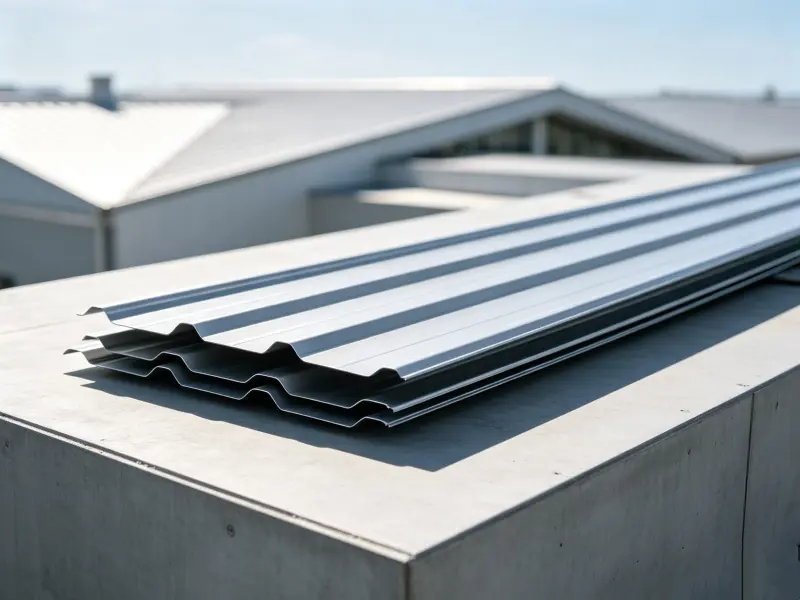

Trapezoidal Aluminium Roofing Sheet
Trapezoidal profiles have straight inclined sides and a flat or narrow top.
They have commonly used for industrial and commercial buildings.
A deeper profile can provide greater stiffness.
Typical profile depths may include:
- 20 mm
- 25 mm
- 30 mm
- 35 mm
- 40 mm
- 50 mm
- 60 mm
The appropriate profile depends on support spacing and engineering requirements.
Ribbed Aluminium Roofing Sheet
Ribbed roofing panels have raised ribs along the sheet.
The ribs increase the panel’s geometric stiffness.
They are often used for:
- Factory roofs
- Warehouse roofs
- Workshop buildings
- Agricultural buildings
- Commercial buildings
Standing Seam Aluminium Roofing
Standing seam systems use raised seams to connect adjacent panels.
The fixing system can hide fasteners from the main roof surface.
This design has often selected for modern architectural buildings and large roof areas.
The seam height and panel width can be customized according to the system.
Deep Profile Aluminium Roofing Sheet
Deep profiles have designed for projects that require higher panel stiffness.
They can be useful where the support spacing is relatively large.
However, “long span” should not be understood as unlimited structural span. Engineering calculations are still required.
Aluminum Alloys for Long Span Roofing
The alloy affects strength, formability and corrosion resistance.
Several aluminum alloys can be used depending on the roofing design.
| Alloy | General Feature | Possible Roofing Use |
|---|---|---|
| 1050 | High aluminum content, good formability | Light decorative roofing |
| 1060 | Good formability and corrosion resistance | General sheet products |
| 3003 | Good strength and formability | Roofing and building products |
| 3004 | Higher strength than 3003 | Roofing panels |
| 3105 | Common for coated aluminum sheet | Roofing and wall systems |
| 5005 | Good surface quality | Architectural applications |
| 5052 | Higher strength | Demanding outdoor applications |
For many roofing projects, 3003, 3004 and 3105 are practical choices.
The final alloy has selected according to the required strength, forming process and surface finish.
Aluminum Temper for Roofing Sheets
The temper describes the condition of the aluminum.
Common conditions include O, H12, H14, H16, H18, H24 and H26.
| Temper | General Character |
|---|---|
| O | Soft and highly formable |
| H12 | Light work hardening |
| H14 | Medium strength |
| H16 | Higher strength |
| H18 | Hard condition |
| H24 | Partially annealed after hardening |
| H26 | Higher-strength partially annealed condition |
Roofing sheets normally need a balance between formability and strength.
A very soft sheet may be easy to form but may not provide the required stiffness.
A harder sheet may provide higher strength but can require more attention during roll forming.
Aluminum Roofing Surface Options
The surface can be supplied in several forms.
Mill Finish
Mill finish aluminum has the natural metallic appearance of rolled aluminum.
It has applications where the aluminum appearance is acceptable.
Painted Aluminum Roofing
Painted aluminum roofing offers more color choices.
Popular colors include:
- White
- Silver
- Gray
- Blue
- Green
- Red
- Brown
- Black
Custom colors can also be considered for large orders.
PE Coated Aluminum Roofing
PE coating has applications for general decorative and architectural applications.
It can provide color and additional surface protection.
PVDF Coated Aluminum Roofing
PVDF coating has often selected for projects with higher exterior appearance and weathering requirements.
It has uses for architectural roofing and facade systems.
The exact coating system has selected according to the project environment and service requirements.
Long Span Roofing for Industrial Buildings
Industrial buildings often have large roof areas.
Long panels can help reduce the number of horizontal connections.
Typical applications include:
- Factories
- Warehouses
- Workshops
- Production plants
- Logistics centers
- Storage buildings
- Equipment buildings
- Agricultural processing facilities
For industrial roofing, buyers should consider the roof structure together with the aluminum panel.
Roof Panel + Purlin + Fastener + Flashing + Gutter + Insulation
All components need to work as one system.

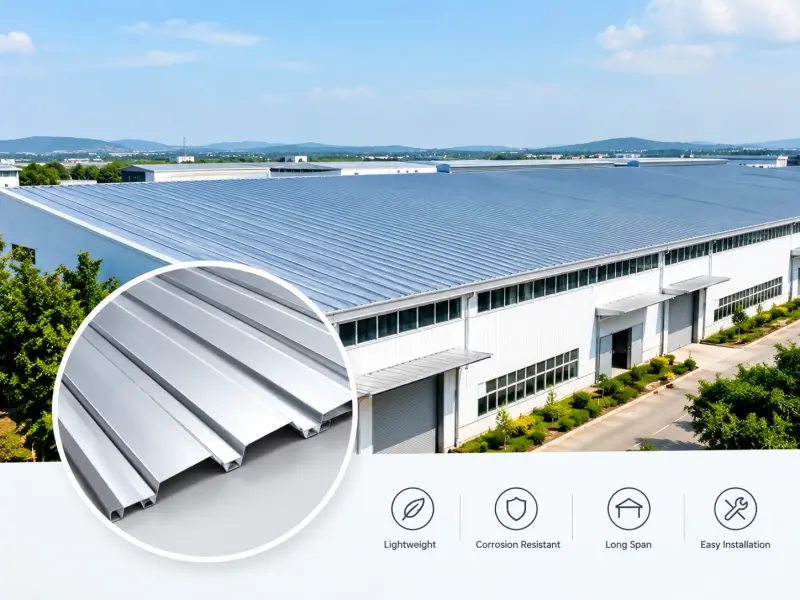

Aluminum Roofing for Warehouses
Warehouses usually need large roof coverage and efficient installation.
Long span aluminum roofing sheets have produced according to the roof length.
Typical specifications may include:
0.60 mm / 0.70 mm / 0.80 mm / 1.00 mm
The final selection depends on the structural design.
For insulated warehouses, the roofing sheet has applications together with insulation materials and an inner liner.
Long Span Roofing for Agricultural Buildings
Aluminum roofing has uses in agricultural buildings.
Applications include:
- Barns
- Storage sheds
- Farm workshops
- Agricultural warehouses
- Equipment shelters
- Livestock buildings
Aluminum’s corrosion resistance can be useful in outdoor environments.
However, environments with aggressive chemicals or high humidity may require a more specific alloy and coating selection.

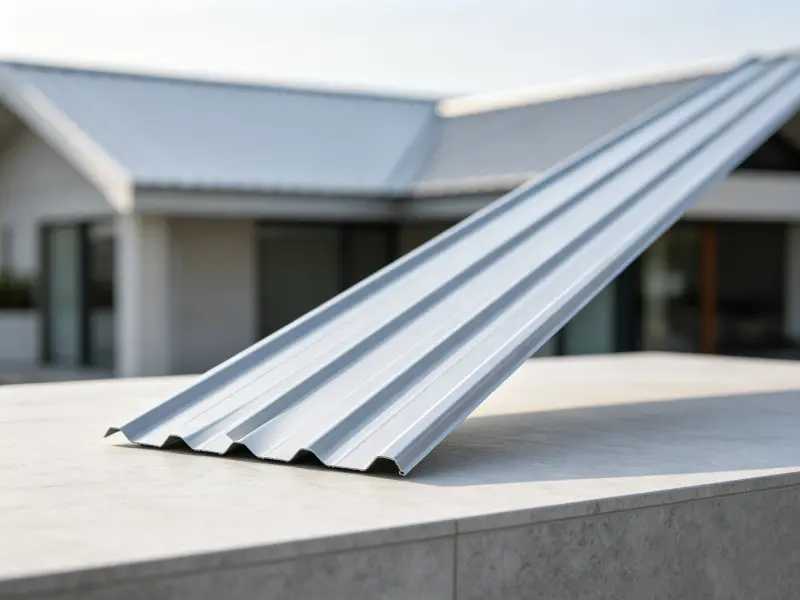

Aluminum Roofing for Residential Buildings
Long aluminum roofing is not limited to industrial buildings.
It can also be used for:
- Houses
- Villas
- Garages
- Carports
- Garden buildings
- Extensions
- Small workshops
- Outdoor shelters
Smaller profiles can provide a lighter appearance.
For residential projects, color and profile design are often as important as material performance.
Aluminum Roofing for Commercial Buildings
Commercial buildings often require both appearance and practical performance.
Applications include:
- Shopping centers
- Retail buildings
- Hotels
- Restaurants
- Office buildings
- Exhibition halls
- Sports facilities
- Schools
Painted or coated aluminum roofing can match the building facade.
Different roof colors have uses to create a specific architectural style.
Aluminum Roofing for Coastal Areas
Coastal environments can expose roofing materials to salt and moisture.
Aluminum naturally forms a protective oxide layer.
This is one reason aluminum has widely considered for outdoor roofing.
For coastal projects, however, material selection should also consider:
- Salt exposure
- Alloy
- Coating
- Fastener material
- Joint design
- Drainage
- Galvanic corrosion
The roofing sheet has considered separately from the fasteners and supporting structure.
Long Span Aluminum Roofing vs Short Roofing Sheets
The long panels and short panels have different installation characteristics.
| Point | Long Span Sheet | Short Sheet |
|---|---|---|
| Panel length | Longer | Shorter |
| Horizontal joints | Fewer | More |
| Installation | Can be faster on suitable roofs | More individual panels |
| Handling | Requires more planning | Easier for small pieces |
| Transportation | More difficult for very long panels | Easier |
| Large roof areas | Suitable | More joints |
| Small buildings | May not always be necessary | Convenient |
Long panels can be useful for large roof areas.
Short sheets can be easier to handle when the site has limited access.
Aluminum Roofing vs Steel Roofing
Aluminum and steel are both widely used for roofing.
They have different characteristics.
| Feature | Aluminum Roofing | Steel Roofing |
|---|---|---|
| Density | Lower | Higher |
| Weight | Generally lighter | Generally heavier |
| Corrosion resistance | Good | Depends strongly on coating |
| Formability | Good | Good |
| Magnetic | No | Generally yes |
| Thermal expansion | Higher | Lower |
| Surface options | Many | Many |
| Long panel production | Available | Available |
The choice depends on structural design, environment, budget and required service conditions.
Aluminum Roofing vs Copper Roofing
Copper has a distinctive appearance and excellent durability.
However, it is usually much more expensive than aluminum.
| Feature | Aluminum | Copper |
|---|---|---|
| Weight | Light | Heavier |
| Material cost | Generally lower | Generally higher |
| Color options | Many | Natural copper tones |
| Corrosion behavior | Good | Develops patina |
| Forming | Good | Good |
| Common use | Industrial and architectural | Premium architectural roofing |
For large commercial roofs, aluminum can provide a wider range of practical options.
How to Choose the Right Thickness
Thickness should be selected based on the complete roofing system.
A simple comparison is:
| Thickness | General Position |
|---|---|
| 0.40 mm | Light-duty |
| 0.50 mm | General light roofing |
| 0.60 mm | General commercial use |
| 0.70 mm | Medium-duty |
| 0.80 mm | Higher stiffness |
| 1.00 mm | Heavy-duty |
| 1.20 mm | Special applications |
| 1.50 mm | Heavy architectural use |
These are general product ranges.
The required thickness should be checked against the actual profile, purlin spacing, wind load, snow load and other local design requirements.
Roof Profile and Support Spacing
The profile is closely related to the support system.
A deeper profile can provide more geometric stiffness.
For example:
20 mm Profile → Light Roof Design
30–40 mm Profile → General Commercial Roof
50–60 mm Deep Profile → Larger Support Spacing Applications
These examples are for product selection only.
Actual allowable spans have determined from engineering data and project loads.
Thermal Movement and Long Panels
Long aluminum roofing panels need attention to thermal movement.
Aluminum expands and contracts with temperature changes.
This becomes more important as panel length increases.
For long roofing systems, designers should consider:
- Panel length
- Fixed points
- Sliding points
- Fastener design
- Roof temperature
- Joint details
- Thermal expansion
- Flashing
The installation system should allow the roof to move as designed.
How Long Span Roofing Is Produced
A typical production process is:
Aluminum Coil → Leveling → Surface Inspection → Roll Forming → Length Cutting → Edge Inspection → Quality Check → Protective Film → Packing
For painted or coated material, the coating process normally takes place before roll forming.
The roll-forming machine creates the required roofing profile.
Length can then be cut according to the order.
Quality Control
Long roofing panels need consistent dimensions.
Quality inspection can include:
- Aluminum thickness
- Panel width
- Effective cover width
- Panel length
- Profile height
- Wave shape
- Flatness
- Coating appearance
- Color consistency
- Surface scratches
- Edge condition
- Burr control
- Packaging condition
For coated roofing, coating adhesion and surface appearance have checked according to the agreed specification.
Custom Long Span Aluminium Roofing
Custom production is common for large construction projects.
Buyers can request:
- Alloy
- Temper
- Thickness
- Total width
- Effective width
- Panel length
- Profile height
- Wave shape
- Color
- Coating
- Surface finish
- Pre-cut length
- Protective film
- Packaging
For a large project, drawings are useful.
A roof plan can help the manufacturer determine the required panel lengths.
Long Span Roofing Sheet Price Factors
The price is affected by several variables.
| Factor | Why It Matters |
|---|---|
| Aluminum alloy | Different alloys have different material costs |
| Thickness | More material increases weight and cost |
| Panel width | Affects material consumption |
| Panel length | Affects production and handling |
| Profile | Different profiles require different tooling |
| Coating | Painted and PVDF finishes have different costs |
| Color | Standard and custom colors may differ |
| Quantity | Larger orders may improve production efficiency |
| Packaging | Export packing affects final cost |
| Shipping | Long panels may need special transport |
For B2B purchasing, the best way to compare quotations is to use the same specifications.
What Information Should Be Sent for a Quotation?
A clear inquiry can include:
Product → Alloy → Temper → Thickness → Width → Length → Profile → Coating → Color → Quantity → Destination
For example:
Long Span Aluminium Roofing Sheet → 3105 H14 → 0.80 mm → 1000 mm Width → 8000 mm Length → Trapezoidal Profile → PVDF → Gray → 5,000 m²
This allows the supplier to calculate material and production requirements more accurately.
Packing for Long Roofing Panels
Long panels need careful packing.
Common methods include:
- Protective film
- Waterproof paper
- Foam protection
- Edge protectors
- Wooden pallets
- Wooden frames
- Steel straps
- Export-grade wrapping
Very long panels have supported properly during loading and transportation.
The packaging method should match the panel length and shipping route.
Installation Considerations
Before installation, check the following:
- Roof structure
- Purlin spacing
- Panel direction
- Overlap
- Fastener type
- Flashing
- Ridge cap
- Gutter
- Thermal movement
- Drainage
A common installation sequence is:
Roof Structure → Flashing → Roofing Panel → Side Lap → Fasteners → Ridge Detail → Gutter → Final Inspection
The exact installation method depends on the roofing profile and building design.
Main Applications of Long Span Aluminium Roofing Sheet
Long span aluminum roofing can be used in many areas.
Industrial Applications
- Factories
- Warehouses
- Workshops
- Production plants
- Logistics centers
- Storage facilities
- Equipment buildings
Commercial Applications
Sports centers
Shopping centers
Retail buildings
Hotels
Restaurants
Office buildings
Exhibition halls
Agricultural Applications
- Barns
- Farm buildings
- Agricultural warehouses
- Equipment shelters
- Storage sheds
- Processing buildings
Residential Applications
- Houses
- Villas
- Garages
- Carports
- Garden buildings
- Extensions
- Private workshops
Infrastructure Applications
Temporary structures
Bus shelters
Transport buildings
Service stations
Public facilities
Utility buildings
Advantages for B2B Projects
For contractors and distributors, long span aluminum roofing can offer several practical advantages.
Longer Panels → Fewer Horizontal Joints → Cleaner Roof Surface → Potentially Faster Installation
The product has ordered in different alloys, thicknesses, profiles and colors.
This makes it easier to match different construction projects.
For distributors, standard profiles have stocked while custom lengths can be produced for larger projects.
FAQ About Long Span Aluminium Roofing Sheet
What does long span aluminium roofing sheet mean?
It refers to aluminum roofing panels supplied in long lengths and designed for roofing systems where longer continuous panels are useful. The actual structural span depends on the profile, thickness and building design.
How long can an aluminum roofing sheet be?
The maximum practical length depends on the production line, transportation, handling and installation conditions. Common orders can include lengths from several meters to more than 10 meters, while special projects may require longer panels.
What thickness is suitable for long span roofing?
Common thicknesses include 0.50, 0.60, 0.70, 0.80 and 1.00 mm. The correct thickness has checked against profile, support spacing and project loads.
Which aluminum alloy is commonly used?
3003, 3004 and 3105 are common choices for many roofing applications. Other alloys such as 1050, 1060, 5005 and 5052 have considered for specific requirements.
Can the roofing sheet be supplied in custom lengths?
Yes. Custom lengths are one of the main advantages of roll-formed aluminum roofing products.
Can I choose different roofing profiles?
Yes. Corrugated, trapezoidal, ribbed, deep-profile and standing seam systems have supplied depending on production equipment and project requirements.
Can the aluminum roofing sheet be painted?
Yes. Aluminum roofing has supplied in painted or coated finishes. PE and PVDF systems are among the options used for coated aluminum products.
Is aluminum roofing suitable for coastal areas?
Aluminum has considered for coastal environments because of its corrosion resistance. However, the alloy, coating, fasteners and installation details have selected for the actual environment.
Is long span aluminum roofing better than steel roofing?
Aluminum and steel have different properties. Aluminum is lighter and has good corrosion resistance, while steel offers different strength, cost and structural characteristics. The suitable material depends on the project.
Can long span aluminum roofing be used with insulation?
Yes. Aluminum roofing has combined with insulation systems. The roof design may include insulation, an inner liner, vapor control and ventilation depending on the building.
Can I order a small quantity?
MOQ depends on the profile, alloy, coating, color and production requirements. Standard products may have different MOQ requirements from customized roofing panels.
What information is needed for a quotation?
Provide the alloy, temper, thickness, width, length, profile, coating, color and quantity. A roof drawing is also useful for large projects.
Final Product Selection Guide
Before placing an order, confirm the main specifications:
| Item | Example |
|---|---|
| Product | Long Span Aluminium Roofing Sheet |
| Alloy | 3003 / 3004 / 3105 |
| Temper | H14 / H16 / H24 |
| Thickness | 0.50–1.00 mm |
| Width | 750–1250 mm |
| Length | Custom |
| Profile | Corrugated / Trapezoidal / Ribbed |
| Profile Height | 20–60 mm |
| Surface | Mill / Painted / PVDF |
| Color | Silver / White / Gray / Custom |
| Quantity | Sheets / m² / Tons |
| Application | Industrial / Commercial / Residential |
| Packing | Export Packaging |
| Destination | Port or Job Site |
A complete specification makes the quotation more accurate and reduces production problems.
Error: Contact form not found.
