Color coated aluminum coil and prepainted aluminum coil are widely used in construction, decoration, and industrial applications.
Many buyers think they are the same, but there are small differences in coating process, application, and performance.
Color Coated vs Prepainted Aluminum Coil
In most cases, color coated aluminum coil and prepainted aluminum coil refer to the same product. The difference is mainly in terminology and usage.
Comparison Table
| Feature | Color Coated Aluminum Coil | Prepainted Aluminum Coil |
|---|---|---|
| Meaning | Focus on color coating | Focus on pre-paint process |
| Production | Coil coating line | Coil coating line |
| Surface | Colored finish | Painted finish |
| Application | Decoration & construction | Industrial & building |
| Difference | Terminology | Terminology |
Conclusion:
They are essentially the same material, but used in different contexts.
Aluminum Alloy Types
Different alloys affect strength, corrosion resistance, and application.
| Alloy | Features | Application |
|---|---|---|
| 1050 | High purity | Decorative use |
| 1060 | Good corrosion resistance | General purpose |
| 3003 | Good strength | Roofing, wall panels |
| 3004 | Better strength | Roofing sheets |
| 3105 | Widely used | Building materials |
| 5052 | High strength | Industrial use |
Temper (Material Condition)
| Temper | Description | Use |
|---|---|---|
| O | Soft | Deep forming |
| H14 | Semi-hard | Standard coil |
| H24 | Stabilized | Roofing panels |
Coating Types
PE (Polyester Coating)
- Cost-effective
- Suitable for indoor use
- Moderate durability
PVDF Coating
- Excellent weather resistance
- UV resistant
- Long service life (15–20 years)
FEVE Coating
- High gloss retention
- Premium applications
Coating Thickness
| Layer | Thickness |
|---|---|
| Top coating | 10–25 μm |
| Primer | 5–10 μm |
| Back coating | 5–15 μm |
Standard Specifications
| Parameter | Range |
|---|---|
| Thickness | 0.2 – 2.0 mm |
| Width | 600 – 1500 mm |
| Coil Weight | 1 – 5 tons |
| Inner Diameter | 300 / 505 mm |
| Surface | Color coated |
Common Colors
| Color Type | Description |
|---|---|
| RAL colors | Standard industrial colors |
| Metallic colors | Silver, gold |
| Wood grain | Decorative pattern |
| Marble pattern | Interior design |
Product Types
Standard Color Coated Coil
Standard color coated coils represent the backbone of modern construction materials, offering reliable performance across a wide range of applications.
These coils undergo a sophisticated coating process that bonds protective layers to the aluminum substrate, creating a durable surface that withstands environmental challenges while maintaining aesthetic appeal.
The coating system typically includes primer layers for adhesion and corrosion resistance, followed by topcoats that provide color stability and weather protection.
This makes them ideal for general construction projects, roofing systems, and exterior cladding where longevity and cost-effectiveness are paramount.
| Specification | Details |
|---|---|
| Primary Applications | General construction, roofing systems, wall panels, gutters |
| Coating Types | Polyester (PE), Silicon Modified Polyester (SMP), PVDF |
| Thickness Range | 0.3mm – 1.5mm |
| Width Range | 600mm – 1,500mm |
| Color Options | RAL color chart, custom matching available |
| Key Benefits | Weather resistance, UV stability, cost-effective, easy installation |

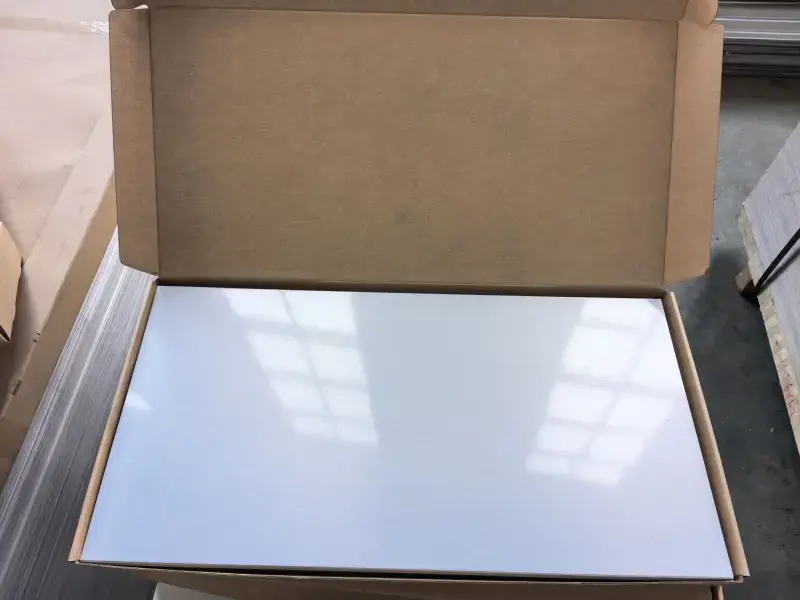

Prepainted Aluminum Sheet
Prepainted aluminum sheets offer the ultimate convenience for manufacturers and fabricators who require ready-to-use materials without additional processing steps.
These cut-to-size sheets arrive at your facility fully finished, eliminating the need for in-house painting operations and reducing production time significantly.
The precision cutting ensures minimal waste, while the factory-applied coating guarantees consistent quality across every sheet. This product category serves industries where efficiency and immediate usability are critical, from appliance manufacturing to signage production, allowing businesses to streamline their workflows and maintain tight production schedules.
| Specification | Details |
|---|---|
| Primary Applications | Appliances, electronics, signage, architectural panels |
| Standard Sizes | Custom cut-to-order, common sizes: 1000×2000mm, 1220×2440mm |
| Thickness Range | 0.4mm – 3.0mm |
| Surface Finish | Smooth, matte, or textured |
| Edge Treatment | Clean-cut, deburred edges for direct use |
| Key Benefits | No secondary processing needed, consistent quality, reduced lead time |

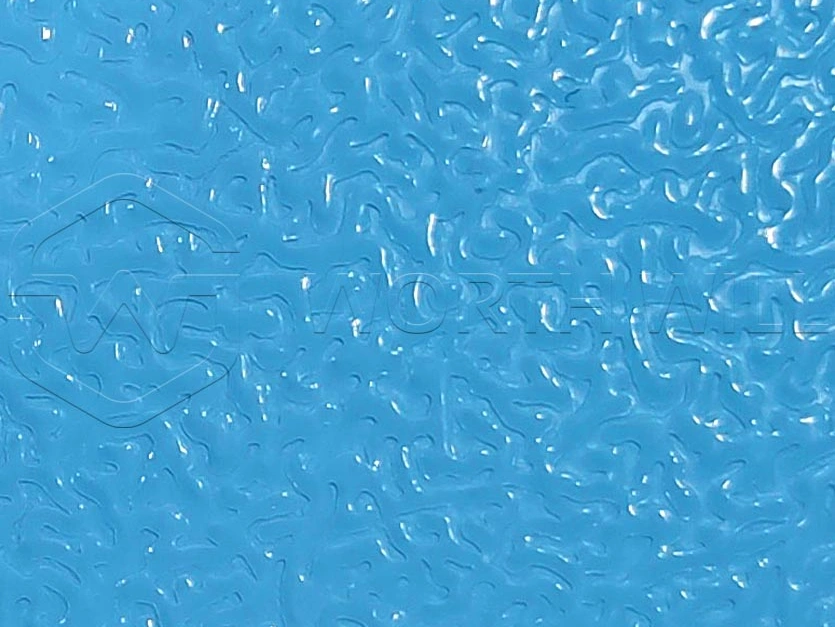

Embossed Color Coated Aluminum
Embossed color coated aluminum transforms functional metal into an artistic medium, featuring carefully engineered surface textures that add depth, visual interest, and tactile appeal to any project.
The embossing process creates three-dimensional patterns—from subtle stucco effects to bold geometric designs—that not only enhance aesthetic value but also provide practical benefits such as improved scratch resistance and reduced glare.
These textured surfaces interact dynamically with light throughout the day, creating ever-changing visual effects that elevate architectural and decorative applications. The combination of color and texture makes this product particularly popular in interior design, where it serves as both a functional surface and a design statement.
| Specification | Details |
|---|---|
| Primary Applications | Interior decoration, feature walls, ceiling panels, elevator interiors |
| Pattern Options | Stucco, orange peel, diamond, leather grain, custom patterns |
| Thickness Range | 0.5mm – 1.2mm |
| Embossing Depth | 0.1mm – 0.5mm |
| Color Coordination | Full color range compatible with embossing |
| Key Benefits | Enhanced aesthetics, scratch concealment, anti-slip properties, light diffusion |
Wood Grain Aluminum Coil
Wood grain aluminum coil represents the perfect marriage of natural beauty and modern material science, delivering the warm, organic appearance of real wood without the maintenance challenges and environmental concerns.
Advanced printing and coating technologies reproduce authentic wood textures with remarkable fidelity, capturing the subtle grain patterns, color variations, and natural character of species ranging from oak and walnut to exotic hardwoods.
This innovation allows architects and designers to achieve the timeless appeal of wood in applications where genuine timber would be impractical—such as exterior facades exposed to harsh weather or high-traffic interior spaces requiring minimal upkeep. The result is a sustainable, durable alternative that preserves forests while satisfying the enduring human preference for natural aesthetics.
| Specification | Details |
|---|---|
| Primary Applications | Interior/exterior decoration, ceiling systems, door panels, furniture |
| Wood Patterns | Oak, walnut, cherry, maple, teak, bamboo, custom designs |
| Thickness Range | 0.4mm – 1.2mm |
| Coating Technology | Sublimation transfer, 3D printing |
| Finish Options | Matte, semi-gloss, high-gloss |
| Key Benefits | Natural wood appearance, weather resistant, fire retardant, low maintenance |
High Gloss Aluminum Coil
High gloss aluminum coil stands at the pinnacle of visual refinement, engineered specifically for applications where premium appearance and mirror-like brilliance are non-negotiable.
The specialized coating process creates an exceptionally smooth, reflective surface that achieves gloss levels exceeding 90 units on standard measurement scales—comparable to automotive finishes and high-end consumer electronics.
This lustrous surface amplifies colors, creating vibrant, eye-catching displays that command attention in retail environments, showrooms, and architectural features. Beyond aesthetics, the dense, highly crosslinked coating structure provides superior resistance to chemicals, staining, and environmental degradation, ensuring that the stunning appearance endures throughout the product’s service life.
| Specification | Details |
|---|---|
| Primary Applications | Premium signage, retail displays, automotive trim, high-end appliances |
| Gloss Level | 90+ GU (Gloss Units) at 60° angle |
| Thickness Range | 0.5mm – 1.0mm |
| Color Range | Full spectrum, metallic effects, special colors |
| Surface Quality | Mirror-like finish, minimal orange peel |
| Key Benefits | Exceptional visual impact, superior color depth, excellent cleanability, stain resistance |
Applications
Main industries:
- Construction
- Architecture
- Appliance manufacturing
Typical uses:
- Roofing sheets
- Wall cladding panels
- Ceiling systems
- Aluminum composite panels
- Gutters and downpipes
- Household appliances
Color Coated Aluminum Coil vs Prepainted Aluminum Coil
Advantages
Long service life
Lightweight and durable
Excellent corrosion resistance
Wide color selection
Easy to process and install
Quality Standards
| Item | Standard |
|---|---|
| Coating adhesion | Strong bonding |
| Color consistency | Uniform |
| Surface quality | Smooth |
| Corrosion resistance | High |
How to Choose the Right Coil
Consider:
- Indoor or outdoor use
- Required lifespan
- Budget
- Color and finish
Quick Guide
| Need | Recommended Type |
|---|---|
| Low cost | PE coating |
| Outdoor use | PVDF coating |
| Decorative | Wood grain |
| Industrial | 3003 / 5052 alloy |
Price Factors
The price depends on:
- Aluminum alloy
- Thickness
- Coating type
- Color and pattern
- Order quantity
Supplier Selection
A reliable supplier ensures:
- Stable coating quality
- Accurate thickness
- Fast delivery
- Custom solutions
WORTHWILL ALUMINUM supplies high-quality color coated and prepainted aluminum coils with global export experience.
Disadvantages
- Higher cost than bare aluminum
- Coating may scratch
- Requires proper handling
Processing Methods
Color coated aluminum coil can be processed by:
- Roll forming
- Cutting and slitting
- Bending
- Stamping
Color Coated Aluminum Coil vs Prepainted Aluminum Coil: Ultimate Comparison and Guide
Many buyers feel confused when they choose between color coated aluminum coil and prepainted aluminum coil. People often ask if they are the same material with different names. This guide helps you understand both products. You will learn their differences, alloy types, and product specifications. We use simple words and clear tables to show you the details.
The Basics of Both Materials
What is Color Coated Aluminum Coil
Color coated aluminum coil is a metal product. Workers apply liquid paint to the clean aluminum surface. Then, they bake the coil at high heat. This creates a hard and smooth color layer. The coating protects the metal from rust and bad weather. It is widely used in modern building projects.
What is Prepainted Aluminum Coil
Prepainted aluminum coil means the aluminum sheet gets its paint before it is shaped or formed. The process uses roller coating lines. The paint goes on evenly. After painting and baking, the coil is ready for cutting, bending, or stamping. This material keeps its color well even after heavy forming work.
Core Differences in Specifications and Types
Alloy and Temper Types Table
Different projects need different alloy grades and tempers. The table below shows common types you can buy.
| Alloy Type | Temper | Main Feature | Best Use |
|---|---|---|---|
| 1050 | H14 | High purity, soft | Signboards, light reflectors |
| 1100 | H16 | Good workability | Cookware, chemical tanks |
| 3003 | H24 | Stronger, rust-proof | Roofing, general sheet metal |
| 3004 | H26 | Higher strength | Gutters, industrial roofing |
| 5052 | H32 | Marine grade, tough | Boat hulls, vehicle parts |
Thickness and Width Specifications Table
Manufacturers offer various sizes to fit your specific needs. Here are popular size choices.
| Specification Item | Range / Value | Description |
|---|---|---|
| Thickness Range | 0.20 mm−3.00 mm | From thin foil to thick panel |
| Width Range | 30px−1600 mm | Standard sizes available |
| Coating Thickness | 15 μm−35 μm | PE, PVDF, or Epoxy paint layers |
| Coil Weight | 1.0 ton−5.0 tons | Safe for shipping and lifting |

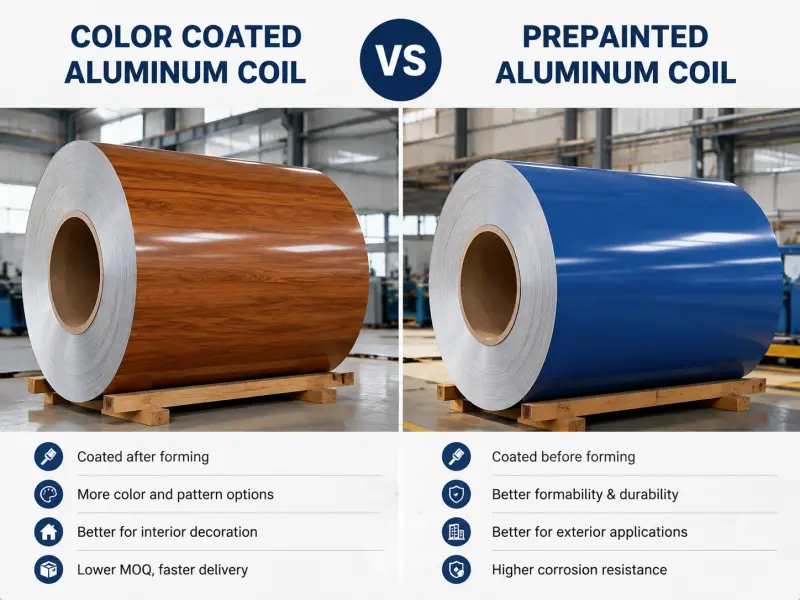

Detailed Comparison: Color Coated vs Prepainted
Manufacturing Process Comparison
- Color Coated Aluminum Coil: Focuses heavily on the final color finish and surface treatment layer.
- Prepainted Aluminum Coil: Focuses on deep drawing and metal flexibility before final shaping.
Surface Performance Comparison
- Color Coated Aluminum Coil: Offers high gloss and strong UV resistance for outdoor walls.
- Prepainted Aluminum Coil: Provides flexible paint layers that do not crack during bending.
Diverse Product Types and Variants
PVDF Coated Aluminum Coil Types
- Standard PVDF Coil: Great for high-end exterior walls and long outdoor life.
- Metallic PVDF Coil: Adds metal glitter for modern building looks.
PE Coated Aluminum Coil Types
- High Gloss PE Coil: Shines brightly, best for indoor ceilings and signs.
- Matte PE Coil: Soft look, popular for indoor wall decorations.
Special Pattern Coil Types
- Wood Grain Aluminum Coil: Looks like real wood, used for doors.
- Stone Grain Aluminum Coil: Looks like marble, used for modern wall panels.
- Brushed Aluminum Coil: Metallic texture, used for household appliance shells.
Where These Materials Are Used
Architectural and Construction Uses
- -> Roof panels and wall cladding systems
- -> Exterior aluminum composite panels (ACP)
- -> Roller shutters and window frames
- -> Rain gutters and downspouts
Industrial and Commercial Uses
- -> Appliance panels for refrigerators and washers
- -> Interior ceiling tiles and decorative walls
- -> Advertising billboards and road signs
- -> Transport vehicle bodies and shipping containers
Advantages and Positive Features
Key Performance Benefits
- -> Light weight makes installation fast and safe.
- -> Strong rust resistance keeps buildings looking new for years.
- -> Rich color choices help designers create unique styles.
- -> Easy cutting and bending save time on the job site.
FAQ
Is color coated aluminum the same as prepainted aluminum?
Yes, they are generally the same product with different names.
Which coating is best for outdoor use?
PVDF coating is the best choice due to its weather resistance.
What thickness should I choose?
For roofing: 0.4–1.0 mm
For decoration: 0.2–0.5 mm
What Is Color Coated Aluminum Coil?
Color coated aluminum coil is an aluminum coil that is coated with paint layers (PE, PVDF, or other coatings) on the surface.
Key Features
- Bright and uniform color
- Strong adhesion
- Good corrosion resistance
- Flexible and easy to process
Structure
| Layer | Description |
|---|---|
| Top coating | PE / PVDF paint |
| Primer | Improves adhesion |
| Aluminum base | Alloy core |
| Back coating | Protective layer |
What Is Prepainted Aluminum Coil?
Prepainted aluminum coil refers to aluminum that is painted before fabrication. It is usually produced using a continuous coil coating line.
Key Features
- Factory-applied coating
- Consistent quality
- High production efficiency
- Ready for direct use
Understanding the Difference for Better Material Selection
Color coated aluminum coil and prepainted aluminum coil are essential materials in modern construction and manufacturing. Although the terms are slightly different, they refer to nearly the same product.
By understanding alloy types, coatings, and specifications, you can select the best material for your project and ensure long-term performance.
