Aluminum diamond plate, also known as tread plate or checker plate, is a versatile metal sheet. It features a raised diamond pattern on one side. This pattern provides excellent slip resistance and a rugged look. The aluminum diamond plate sheets 4×8 size is the industry standard for most construction and automotive projects.
Common Sizes and Specifications
While the 4×8 sheet is the most popular, other sizes exist to fit different needs. The thickness of the metal is usually measured in inches or gauge.
Table 1: Standard Dimensions for Diamond Plate
| Sheet Size (Feet) | Size in Inches | Common Thicknesses | Popular Finishes |
|---|---|---|---|
| 4×8 | 48″×96″ | 0.063″,0.125″,0.188″,0.25″ | Bright, Mill, Black |
| 4×10 | 48″×120″ | 0.125″,0.188″ | Mill, Bright |
| 5×10 | 60″×120″ | 0.125″,0.188″,0.25″ | Mill |
If you have a larger project, aluminum diamond plate sheets 4×10 are a great choice. They reduce the number of seams in your installation.
Thickness Options and Weight
One of the most common questions is: “What does an aluminum diamond plate sheets weight look like?” Aluminum is much lighter than steel. This makes it easier to install and better for fuel economy on trailers.
Table 2: Weight Chart for 4×8 Aluminum Sheets
| Thickness (Inches) | Decimal Equivalent | Weight per Square Foot | Total 4×8 Weight (lbs) |
|---|---|---|---|
| 1/16″ | 0.063″ | 0.95lbs | 30.4lbs |
| 1/8″ | 0.125″ | 1.90lbs | 60.8lbs |
| 3/16″ | 0.188″ | 2.80lbs | 89.6lbs |
| 1/4″ | 0.250″ | 3.75lbs | 120.0lbs |
When looking for 4×8 aluminum diamond plate 3/16, remember it weighs about 90 pounds. This is manageable for two people to carry. If you need something heavy-duty, the 0.25 aluminum diamond plate 4×8 sheet is the strongest common option.
Alloy Types and Material States
Not all aluminum is the same. The “alloy” tells you what other metals are mixed with the aluminum. The “state” or “temper” tells you how the metal was treated.
1. Alloy 3003−H22
This is the most common alloy for diamond plate. It has mixed with manganese. It is very easy to bend and highly resistant to corrosion. The H22 state means it is “half-hard.” This is what you usually find when searching for aluminum diamond plate sheets 4×8 Home Depot.
2. Alloy 6061−T6
This is “structural grade” aluminum. It has mixed with magnesium and silicon. It is much stronger than 3003. However, it is harder to bend and can crack if you try to fold it sharply. This has uses for heavy-duty flooring aluminum diamond plate sheets 4×8.

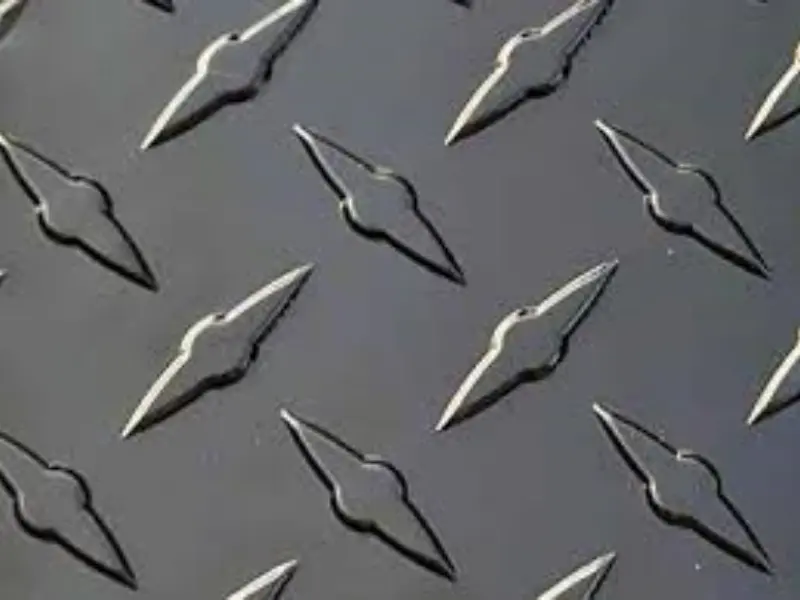

3. Black Aluminum Diamond Plate
For a custom look, many people choose black aluminum diamond plate sheets 4×8. This is usually a 3003 alloy that has been powder-coated. It looks great on Jeep trim, garage walls, or specialty trailers.
Aluminum vs. Steel Diamond Plate
You might be deciding between steel diamond plate sheets and the aluminum version. Here is how they compare.
Table 3: Aluminum vs. Steel Comparison
| Feature | Aluminum Tread Plate | Steel Tread Plate |
|---|---|---|
| Weight | Very Light (1/3 of steel) | Very Heavy |
| Corrosion | Does not rust | Will rust if not painted |
| Cost | Higher initial price | Lower initial price |
| Installation | Easy to cut and drill | Requires heavy tools/welding |
| Maintenance | Low (wash with water) | High (needs painting/sealing) |
While the aluminum diamond plate sheets 4×8 price might be higher than steel, you save money over time. You don’t have to paint it, and it won’t rot away from road salt.
Popular Applications
Where should you use metal aluminum diamond plate sheets 4×8? Here are the most common uses:
- Trailer Flooring: Use aluminum diamond plate sheets 4×8 1/8 thick for lightweight trailer beds.
- Truck Toolboxes: Most heavy-duty toolboxes are made from 0.063″ or 0.125″ plate.
- Wall Protection: Used in commercial kitchens and gyms to prevent damage to drywall.
- Stair Treads: The diamond pattern provides grip in wet or oily conditions.
- Garage Flooring: flooring aluminum diamond plate sheets create a professional, “shop” look that is easy to clean.
- Loading Docks: Use the aluminum diamond plate sheets 4×8 1/4 thick for heavy forklift traffic.
What are Aluminum Diamond Plate Sheets 4×8?

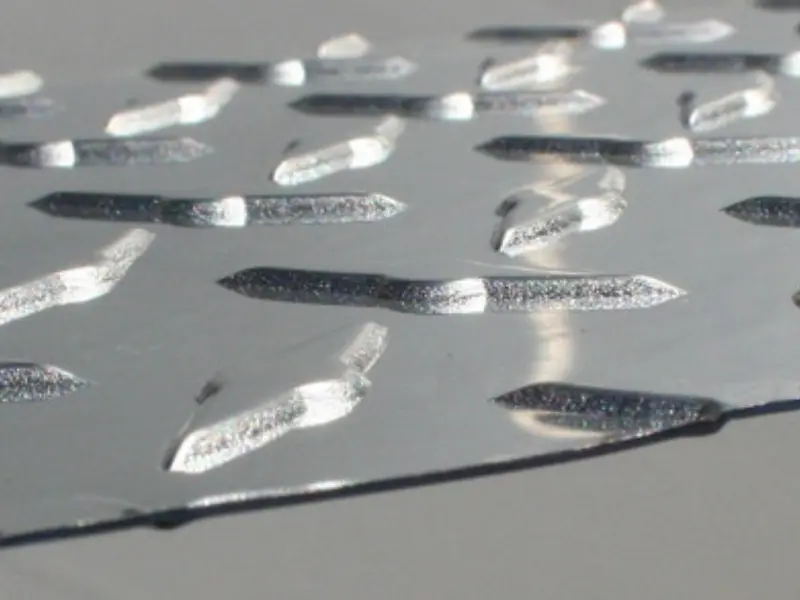

An aluminum diamond plate is a flat sheet of metal with a raised pattern on one side. This pattern usually looks like diamonds or lines. The main goal of this pattern is to provide extra grip.
Why the 4×8 Size is Popular
The $4 \times 8$ size is a favorite for many reasons:
- Standard Dimensions: It matches the size of standard plywood, making it easy to swap materials.
- Easy Transport: Most pickup trucks can carry $4 \times 8$ sheets easily.
- Large Coverage: One sheet covers 32 square feet, which reduces the number of seams in your project.
- Versatility: You can cut it into smaller pieces for toolboxes or use it as a full floor panel.
Main Specifications of Aluminum Diamond Plate
We provide these sheets in various thicknesses and finishes. Depending on your project, you might need a thin decorative sheet or a thick structural plate.
Technical Specification Table
| Feature | Details |
|---|---|
| Standard Size | $4 \text{ feet} \times 8 \text{ feet}$ ($1219 \text{ mm} \times 2438 \text{ mm}$) |
| Common Alloys | 3003, 6061, 5052 |
| Thickness Range | $0.025″$ to $0.250″$ ($0.6 \text{ mm}$ to $6.35 \text{ mm}$) |
| Temper Options | H22, H24, T6 |
| Pattern Types | 1-bar, 3-bar, 5-bar (Diamond) |
| Surface Finish | Polished Bright, Mill Finish, Black, Red |
| Weight per Sheet | Varies by thickness (see table below) |
Common Thickness and Weight for 4×8 Sheets
| Thickness (Inches) | Gauge Reference | Weight per Sheet (Approx. lbs) |
|---|---|---|
| 0.025″ | Decorative / Thin | $11.5 \text{ lbs}$ |
| 0.045″ | Light Duty | $20.7 \text{ lbs}$ |
| 0.063″ | 16 Gauge (Standard) | $29.0 \text{ lbs}$ |
| 0.080″ | 12 Gauge | $36.8 \text{ lbs}$ |
| 0.125″ | 1/8 Inch (Heavy Duty) | $57.5 \text{ lbs}$ |
| 0.188″ | 3/16 Inch | $86.4 \text{ lbs}$ |
| 0.250″ | 1/4 Inch (Structural) | $115.2 \text{ lbs}$ |

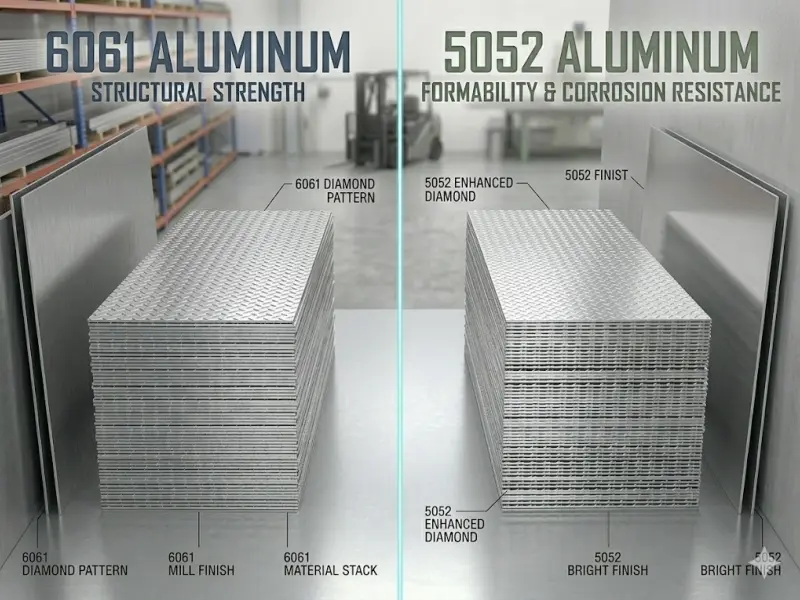

Popular Alloy Types for Diamond Plates
Different alloys offer different benefits. The choice of alloy depends on whether you need the plate for looks or for heavy-duty work.
3003-H22 Aluminum Diamond Plate
The 3003 alloy is the most common type for general use. It is mixed with manganese.
- Features: It is very shiny (Bright Finish). It is easy to bend and shape.
- Best For: Cosmetics, wall protection, and light-duty trailers.
6061-T6 Aluminum Diamond Plate
The 6061 alloy is structural grade. It is mixed with magnesium and silicon.
- Features: It is much stronger than 3003. It has a dull “Mill Finish.”
- Best For: Ramps, flooring for heavy machinery, and dock plates.
5052-H32 Aluminum Diamond Plate
The 5052 alloy is known for its resistance to salt water.
- Features: Great strength and excellent corrosion resistance.
- Best For: Marine applications, boat floors, and chemical tanks.
Comparing 3003 vs 6061 Diamond Plate
If you are not sure which one to choose, this comparison table will help you decide.
Alloy Comparison Table
| Feature | 3003-H22 | 6061-T6 |
|---|---|---|
| Strength | Medium | High |
| Appearance | Shiny / Mirror-like | Dull / Matte |
| Corrosion Resistance | Good | Excellent |
| Formability | Excellent (Easy to bend) | Poor (May crack if bent sharp) |
| Typical Cost | Lower | Higher |
| Main Use | Decoration & Trailers | Structural Ramps & Stairs |
Wide Range of Applications
The Aluminum diamond plate sheets 4×8 are used in almost every industry. Here is where you will see them most often.
Vehicle and Transportation Use
- Trailer Floors: Provides a non-slip surface for hauling equipment or cars.
- Truck Toolboxes: The strong diamond pattern protects tools from damage.
- Running Boards: Helps people step into high trucks safely.
- Mud Flaps: Protects the vehicle from rocks and mud.
Industrial and Construction Use
- Safety Ramps: Prevents slipping for wheelchairs and heavy carts.
- Stair Treads: Used in factories to make stairs safer for workers.
- Dock Plates: Bridges the gap between a truck and a loading dock.
- Elevator Floors: Durable enough for heavy foot traffic and carts.
Decorative and Residential Use
- Garage Wall Panels: Protects the bottom of walls from dings and scratches.
- Gym Floors: Creates a “tough” look while protecting the sub-floor.
- Kitchen Backsplashes: Easy to clean and looks modern.
- Furniture Trim: Used for a “rugged” or industrial furniture design.
Different Surface Finishes and Colors
You can choose the look that fits your style.

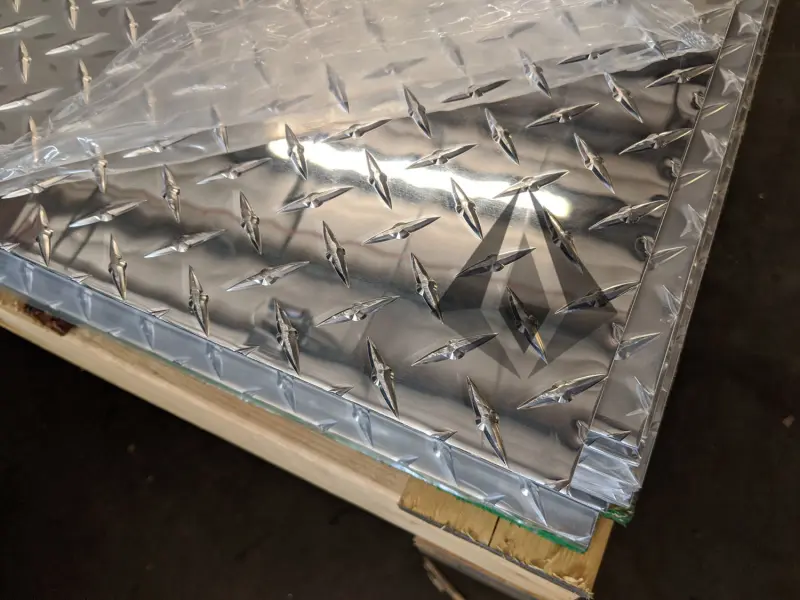

Polished Bright Finish
This is the “classic” diamond plate look. It is very reflective, almost like a mirror. It is perfect for fire trucks, emergency vehicles, and showrooms.
Mill Finish
This is the raw, unpolished metal. It looks grey and dull. It is used for industrial jobs where the appearance does not matter as much as the strength.
Painted and Anodized Options
We also offer specialized colors to help your project stand out:
Anodized Finish: Hardens the surface and prevents the metal from rubbing off on your hands.

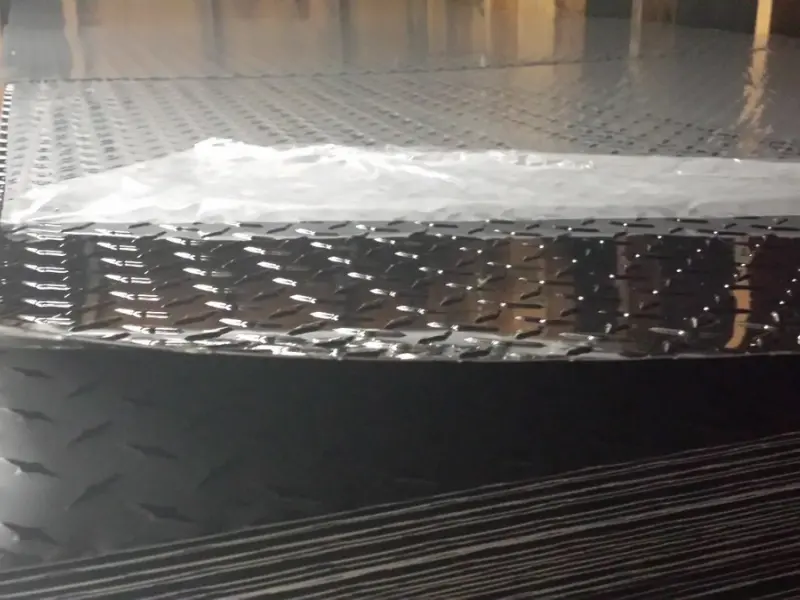

Black Diamond Plate: Very popular for modern garage walls and specialized trailers.
Red or White: Often used for branding or safety marking.
How to Calculate the Weight of a 4×8 Sheet
Knowing the weight is important for shipping and for ensuring your structure can hold the metal. The density of aluminum is roughly 0.098 lbs/in3.
The Weight Formula
To calculate the weight of a sheet, use this formula:
W=Length (in)×Width (in)×Thickness (in)×0.098×1.05
(Note: We multiply by 1.05 because the raised diamonds add about 5% more weight compared to a flat sheet.)
Calculation Example for 1/8″ Plate
For a standard $4′ \times 8’$ sheet with $0.125″$ thickness:
- Length = 96 inches
- Width = 48 inches
- Thickness = 0.125 inches
W=96×48×0.125×0.098×1.05
First, find the volume:
96×48×0.125=576 cubic inches
Then, calculate the weight:
576×0.098×1.05≈59.27 lbs
Installation and Maintenance Tips
How to Cut Aluminum Diamond Plate
You can cut thin sheets (under $0.063″$) with heavy-duty shears. For thicker sheets, use a circular saw with a blade designed for non-ferrous metals. Always wear eye protection because metal chips will fly.
How to Clean the Plate
To keep your Aluminum diamond plate sheets 4×8 looking new, follow these steps:
- Use mild soap and warm water.
- Avoid harsh chemicals that can dull the polish.
- Use a soft brush to get dirt out from between the raised diamonds.
- Dry with a microfiber cloth to prevent water spots.
Buying Guide: Where to Find Sheets Near You
If you are looking for aluminum diamond plate sheets 4×8 near me, you have a few options:
- Local Metal Service Centers: These are the best for specialized alloys like 6061−T6. They often have the best aluminum diamond plate sheets price because they sell in bulk.
- Home Improvement Stores: You can find aluminum diamond plate sheets Home Depot or Lowe’s options. These are convenient but usually only stock thin gauges (0.025″ to 0.063″).
- Online Metal Suppliers: This is the best way to find specific sizes like aluminum diamond plate sheets .125 or black finishes. They can ship directly to your door.
Tips for Working with Diamond Plate
Cutting
You can cut thin aluminum sheets (0.063″) with tin snips. For aluminum diamond plate sheets 1/8 thick, use a circular saw with a carbide-tipped blade made for non-ferrous metals.
Drilling
Aluminum is soft. Use standard high-speed steel (HSS) drill bits. Use a little bit of lubricant (even WD-40) to keep the bit from getting gummed up with metal.
Cleaning
To keep your aluminum diamond plate near me looking bright, wash it with mild soap and water. If it becomes dull, you can use a dedicated aluminum polish to bring back the shine. Avoid using strong acids, as they can spot the metal.
Summary of Options for 4×8 Sheets
| Thickness Name | Decimal (inch) | Best Used For |
|---|---|---|
| Thin/Cosmetic | 0.025″ | Cabinet facings, backsplash |
| Standard | 0.063″ | Wall guards, light trim |
| Heavy Duty | 0.125″ | Trailer floors, ramps |
| Structural | 0.188″ | Truck beds, dock plates |
| Extreme | 0.250″ | Heavy machinery flooring |
Aluminum Diamond Plate Sheets 4×8: The Ultimate Buyer’s Guide
Whether you need aluminum diamond plate sheets nearby for a DIY project or industrial use, understanding the weight and alloy is key. Aluminum is the superior choice for most mobile applications because it is light and rust-proof.
If you are looking for the best value, compare the aluminum diamond plate sheets 4×8 price between local shops and online vendors. Always ensure you are getting the right thickness for your load—using 4×8 aluminum diamond plate 3/16 instead of a thinner sheet can make your project last much longer.
Frequently Asked Questions
Does aluminum diamond plate rust?
No, aluminum does not rust like steel. It forms a natural oxide layer that protects it. However, if it is exposed to salt without being cleaned, it can undergo “pitting” corrosion. This is why 5052 alloy is better for marine use.

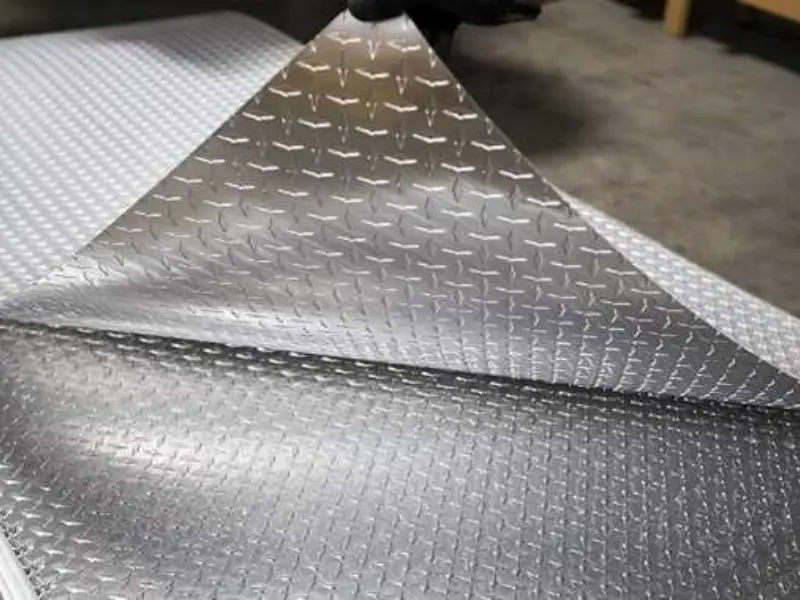

Is the 4×8 sheet easy to bend?
If you choose the 3003-H22 alloy, it is very easy to bend around corners. If you choose the 6061-T6 alloy, it is very stiff and will likely crack if you try to bend it at a sharp angle.
What is the difference between a “1-bar” and “5-bar” pattern?
The “1-bar” pattern has a single diamond shape repeating. The “5-bar” pattern has groups of five parallel lines. 5-bar is very common in Europe and Asia, while 1-bar is the standard “diamond” look in North America.
Can I weld these sheets?
Yes, you can weld aluminum diamond plate. Most people use TIG or MIG welding. You must clean the surface well before welding to ensure a strong bond.
Are these sheets slip-proof?
They are slip-resistant, not slip-proof. The raised pattern provides much better grip than a flat sheet, especially when the floor is wet or oily. However, caution is still needed in very slippery conditions.
Product Selection Flowchart
Start Project
│
├─ Is it for looks? ──► Choose 3003-H22 (Bright Finish)
│
├─ Is it for heavy loads? ──► Choose 6061-T6 (Mill Finish)
│
└─ Is it for a boat? ──► Choose 5052-H32 (Corrosion Resistant)
