What Is .063 Aluminum Sheet?

A .063 aluminum sheet measures 0.063 inches thick. That equals 1.6 millimetres.

In the gauge system, this is close to 16 gauge. The sheet weighs roughly 0.9 pounds per square foot.

A standard 4×8 sheet weighs about 28.7 pounds. This thickness sits in the middle range. It is thick enough for structural use. Yet it is thin enough to bend with hand tools or a brake press.

Many buyers search for .063 aluminum sheet because it hits a sweet spot. It offers good strength without the weight of thicker plates. It also costs less than heavy-gauge options.

This makes it one of the most popular thicknesses in the metal supply market.

How Thick Is .063 Aluminum Sheet?

The .063 measurement is exact. It is not an estimate.

Unit	Value
Inches	0.063″
Millimetres	1.6 mm
Gauge (approximate)	16 gauge
Fraction	1/16″

Note: Some suppliers list .063 as 1.6 mm. Others round it to 1.5 mm. Always ask for the exact decimal when ordering. Tolerance is usually ±0.003″.

---

Weight of .063 Aluminum Sheet

Weight depends on the alloy. Different alloys have slightly different densities.

Alloy	Density	Weight per sq ft	Weight of 4×8 sheet
3003	2.73 g/cm³	~0.90 lbs	~28.8 lbs
5052	2.68 g/cm³	~0.88 lbs	~28.2 lbs
6061	2.70 g/cm³	~0.89 lbs	~28.5 lbs

Quick Formula: Weight (lbs per sq ft) = Thickness (inches) × 144 × Density (g/cm³) × 0.0361

For .063″ 3003: 0.063 × 144 × 2.73 × 0.0361 ≈ 0.90 lbs/sq ft.

---

Alloy Types for .063 Aluminum Sheet

Not all .063 sheets are the same. The alloy changes how the sheet behaves.

3003-H14: The General-Purpose Choice

3003 Aluminum Sheet is the most common alloy at this thickness. It contains manganese. This gives it better strength than pure aluminium.

Property	Value
Main Alloy Element	Manganese (1.0 – 1.5%)
Temper	H14 (half hard)
Tensile Strength	22,000 psi
Yield Strength	21,000 psi
Elongation	8% min
Best For	Roofing, siding, ductwork, signs

Why It Sells: 3003-H14 is affordable and easy to work. It bends well in a brake press. It also resists corrosion in normal outdoor air. Many HVAC shops and sign makers keep this grade in stock.

---

5052-H32: The Marine-Grade Option

5052 adds magnesium. This makes it stronger and more salt-resistant than 3003.

Property	Value
Main Alloy Element	Magnesium (2.2 – 2.8%)
Temper	H32 (quarter hard, stabilized)
Tensile Strength	33,000 – 42,000 psi
Yield Strength	28,000 psi
Hardness	70 Brinell
Best For	Boat parts, fuel tanks, outdoor panels

Why It Sells: 5052-H32 is the top pick for anything near water. It resists salt spray better than 3003. The H32 temper also allows tight bends without cracking. Fabricators use it for marine trim, truck bodies, and chemical tanks.

---

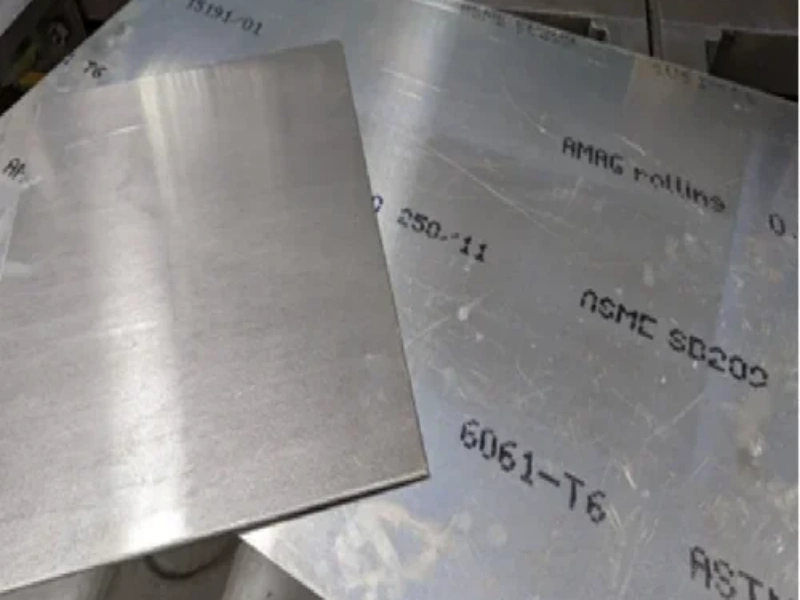

6061-T6: The Structural Grade

6061 is heat-treatable. It contains magnesium and silicon. The T6 temper gives it high strength.

Property	Value
Main Alloy Elements	Magnesium (0.8 – 1.2%), Silicon (0.4 – 0.8%)
Temper	T6 (solution heat treated and aged)
Tensile Strength	42,000 – 45,000 psi
Yield Strength	35,000 – 40,000 psi
Hardness	93 – 95 Brinell
Best For	Brackets, frames, machine parts

Why It Sells: 6061-T6 is roughly twice as strong as 5052-H32. It machines cleanly and holds tight tolerances. The trade-off is lower bendability. For bending, order 6061-O or T4 temper. Bend first, then heat treat to T6 if needed.

---

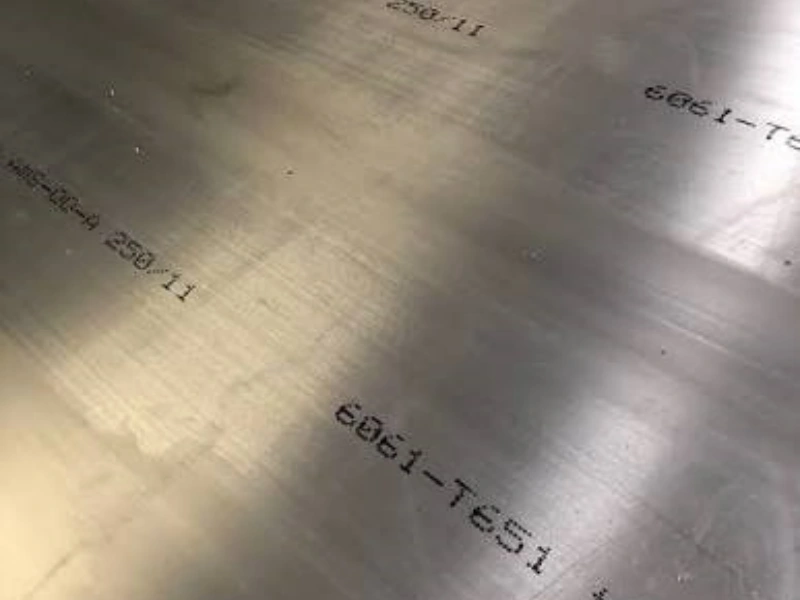

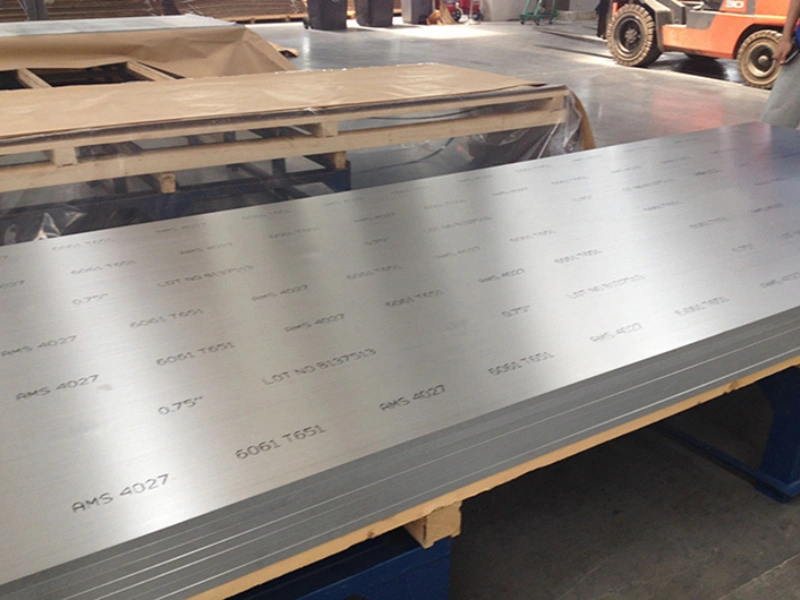

6061-T651: The Stress-Relieved Version

T651 is the same as T6 but with stress relief. The sheet is stretched after heat treatment. This removes internal stress.

Property	Value
Temper	T651
Flatness	Better than T6
Machining	Excellent, less warping
Best For	Precision tooling plates, CNC work

Why It Sells: CNC shops prefer T651 because it stays flat during machining. T6 can warp when milled. T651 solves this problem.

---

Alloy Comparison at .063 Thickness

Feature	3003-H14	5052-H32	6061-T6	6061-T651
Strength	Low	Medium	High	High
Bendability	Very Good	Very Good	Fair	Fair
Corrosion Resistance	Good	Excellent	Good	Good
Saltwater Resistance	Poor	Excellent	Moderate	Moderate
Weldability	Good	Very Good	Good	Good
Machinability	Poor	Poor	Very Good	Excellent
Price Level	Lowest	Medium	Higher	Higher
Best For	Signs, ducts, roofing	Marine, tanks, trucks	Frames, brackets	CNC plates, precision

---

Standard Sheet Sizes for .063 Aluminum

Size	Dimensions	Weight (3003)	Common Use
1×4 ft	12″ × 48″	~3.6 lbs	Small panels, samples
2×4 ft	24″ × 48″	~7.2 lbs	Cabinet backs, small signs
4×4 ft	48″ × 48″	~14.4 lbs	Wall panels, doors
4×8 ft	48″ × 96″	~28.8 lbs	Full sheets, roofing, siding
4×10 ft	48″ × 120″	~36.0 lbs	Long panels, trailer sides
5×10 ft	60″ × 120″	~45.0 lbs	Large architectural panels

Custom Cutting: Most metal suppliers offer cut-to-size service. This saves time and reduces waste.

---

Surface Finishes Available

Finish	Description	Best Use
Mill Finish	As-rolled, slightly dull	Hidden parts, industrial use

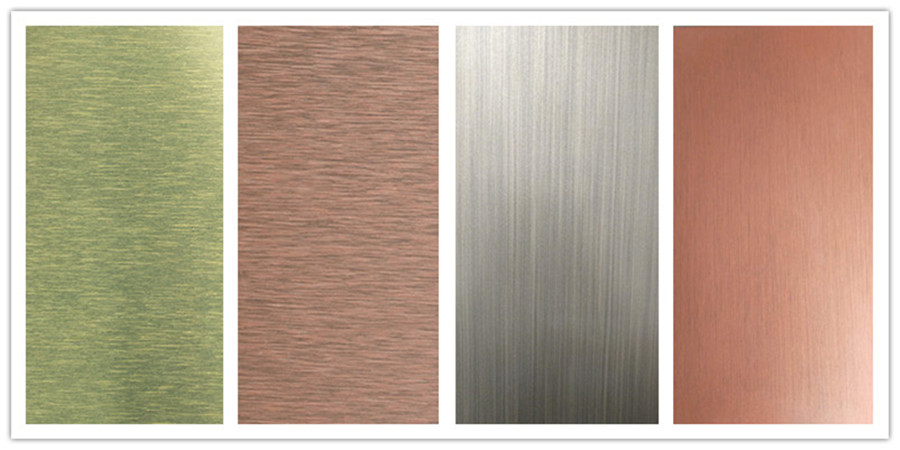

Brushed	Fine parallel lines	Decorative trim, appliances
Polished	Mirror-like shine	Reflectors, display cases
Anodized	Hard oxide layer, color options	Outdoor trim, marine
White Painted	Factory-applied white coating	Signs, ceilings, panels
Powder Coated	Durable painted finish	Custom colors, UV protection
Diamond Plate	Raised diamond pattern	Flooring, steps, ramps
PVC Coated One Side	Plastic film protection	Scratch-sensitive work

---

Applications for .063 Aluminum Sheet

Construction and Architecture

• Wall cladding panels
• Soffits and fascia boards
• Flashing and trim work
• Ceiling tiles
• Column covers
• Decorative screens

Automotive and Transport

• Trailer siding and flooring
• Truck bed liners
• RV interior panels
• Race car body panels
• Fuel tank walls
• Heat shields

Marine and Boating

• Boat hull patches
• Deck covering
• Cabin interior panels
• Fuel tank walls
• Hatch covers
• Dock trim

HVAC and Industrial

• Ductwork and fittings
• Fan housings
• Filter frames
• Machine guards
• Conveyor covers
• Tool boxes

Signage and Display

• Flat signs
• Routed letters
• Backlit panels
• Menu boards
• Point-of-sale displays
• Exhibition stands

Food and Medical

• Work surfaces
• Splashbacks
• Equipment panels
• Sterile room trim
• Tray liners
• Packaging chutes

---

Bending .063 Aluminum Sheet

Bending this thickness is straightforward with the right tools.

Minimum Bend Radius Guide

Alloy	Temper	Minimum Bend Radius
3003-H14	H14	0.5 × thickness (≈ 0.03″)
5052-H32	H32	1.0 × thickness (≈ 0.06″)
6061-T6	T6	3.0 × thickness (≈ 0.19″)
6061-O	O	0.5 × thickness (≈ 0.03″)

Tip: For 6061-T6, use a larger radius or switch to T4 temper. The T6 temper is brittle and may crack on tight bends.

Tools for Bending

Tool	Best For	Result
Hand brake	Light work, prototypes	Clean bends up to 4 ft
Box and pan brake	Complex shapes, boxes	Multiple angles, hems
Press brake	Production runs	Precise, repeatable bends
Slip roll	Curved panels	Cylindrical shapes
Hammer and dolly	Custom work, repairs	Hand-formed curves

---

Cutting .063 Aluminum Sheet

Method	Best For	Finish
Tin snips	Small cuts, curves	Slight burr, hand work
Circular saw with carbide blade	Straight cuts, fast	Clean edge, some noise
Jigsaw with metal blade	Curves, internal cuts	Moderate finish
Band saw	Thick stacks, production	Very clean, straight
Water jet	Complex shapes, no heat	Perfect edge, no distortion
Laser cutting	Intricate patterns	Precise, minimal cleanup
CNC router	Large panels, holes	Smooth, accurate

Safety Note: Wear safety glasses and gloves. Cut edges are sharp. Deburr with a file or sander before handling.

---

Welding .063 Aluminum Sheet

Method	Best Alloy	Filler Wire	Notes
TIG (GTAW)	All alloys	4043 or 5356	Cleanest welds, best control
MIG (GMAW)	3003, 5052	4043 or 5356	Faster, good for long seams
Spot welding	3003	N/A	Quick joints, thin sheets

Prep Steps:

1. Clean the joint with a stainless steel brush.
2. Remove oil and grease with acetone.
3. Use argon shielding gas.
4. Keep heat input low to avoid burn-through.

---

Drilling and Fastening

Fastener Type	Best Use	Notes
Rivets	Permanent joints, thin sheets	Use aluminum or stainless rivets
Self-tapping screws	Quick assembly	Pre-drill pilot holes
Machine screws	Removable joints	Use with nut plates or inserts
Pop rivets	Blind access	Good for one-sided work

Drill Bit Size: Use a bit 1/64″ larger than the fastener diameter. This allows for thermal expansion.

---

.063 vs Other Common Thicknesses

Thickness	Weight per sq ft	Strength	Best Use	Price Level
.032″ (20 ga)	0.46 lbs	Low	Flashing, light trim	Lowest
.040″	0.56 lbs	Low-Medium	Signs, small panels	Low
.063″	0.90 lbs	Medium	General fabrication	Medium
.090″	1.30 lbs	Medium-High	Structural panels	Medium-High
.125″ (1/8″)	1.78 lbs	High	Heavy-duty parts	Higher
.190″ (3/16″)	2.73 lbs	Very High	Load-bearing plates	Highest

Verdict: .063″ is the go-to thickness for most sheet metal work. It is thick enough to hold shape but thin enough to form easily.

---

.063 Aluminum Sheet Price Guide

Prices vary by alloy, finish, and order size. Below is a rough guide for full 4×8 sheets.

Alloy	Finish	Price Range (per 4×8 sheet)
3003-H14	Mill finish	$45 – $75
3003-H14	White painted	$55 – $85
5052-H32	Mill finish	$55 – $90
5052-H32	Brushed	$65 – $100
6061-T6	Mill finish	$65 – $110
6061-T651	Mill finish	$70 – $120
6061-T6	Anodized	$85 – $140

Prices are estimates for standard stock sizes. Custom cutting, special alloys, and small orders may cost more.

---

Where to Buy .063 Aluminum Sheet Near Me

Many buyers search for “.063 aluminum sheet near me” when they need material fast. Here are the best places to look.

Source	Best For	Lead Time
Local metal supplier	Stock sizes, quick pickup	Same day
Home improvement store	Small pieces, DIY projects	Same day
Online metal dealer	Custom sizes, bulk orders	3 – 7 days
Mill direct	Large volumes, special alloys	2 – 4 weeks
Metal recycler	Low cost, non-critical use	Varies

Tip: Call ahead to confirm stock. .063″ is popular and may sell out during busy seasons.

---

Quality Checks When Buying

Check	What to Look For	Pass/Fail
Thickness gauge	Within ±0.003″ of .063″	Pass
Flatness	No waves or buckles	Pass
Surface	No scratches, dents, or oil stains	Pass
Edges	Clean cut, no burrs	Pass
Certification	Mill test certificate (MTC)	Pass
Alloy stamp	Marked on sheet or packaging	Pass

Core Characteristics of 6063 Aluminum Alloy

To understand why the 6063 aluminum sheet is so special, we must look at its metallurgical makeup. It belongs to the magnesium-silicon family. This specific blend allows the metal to be highly extrudable and formable. Unlike harder alloys, 6063 offers a much smoother surface right out of the mill.

➜ Excellent Surface Finish: It is designed to be free from lines and marks.
➜ Anodizing Specialist: It reacts better to anodizing than almost any other alloy.
➜ Corrosion Resistance: It handles outdoor moisture and weather with ease.
➜ Workability: It is very easy to cut, drill, and shape without cracking.

Technical Breakdown of the 6063 Alloy Sheet

The performance of the 6063 aluminum sheet is driven by its chemical balance. Below is a detailed look at the elements that give this metal its unique personality.

Chemical Composition Table

Element	Weight Percentage (%)
Silicon (Si)	0.2% – 0.6%
Magnesium (Mg)	0.45% – 0.9%
Iron (Fe)	Max 0.35%
Copper (Cu)	Max 0.10%
Manganese (Mn)	Max 0.10%
Chromium (Cr)	Max 0.10%
Zinc (Zn)	Max 0.10%
Titanium (Ti)	Max 0.10%
Aluminum (Al)	Remainder

Physical and Mechanical Properties

Property	Metric Value	Imperial Value
Density	2.70 g/cm3	0.0975 lb/in3
Tensile Strength	145 – 186 MPa	21,000 – 27,000 psi
Yield Strength	103 – 145 MPa	15,000 – 21,000 psi
Thermal Conductivity	200 W/m⋅K	1390 BTU−in/hr−ft2−∘F
Hardness (Brinell)	60 – 73	60 – 73

Common Product Types for 6063 Aluminum

The 6063 aluminum plate or sheet is available in several forms. Each type is optimized for a specific industrial or decorative need.

Mill Finish 6063 Sheets

This is the standard, untreated form of the alloy. It has a natural, slightly shiny metallic look. It is often used as a base material for further fabrication or when the metal will be hidden from view.

Anodized 6063 Aluminum Sheet

Because 6063 is so pure, it takes anodizing beautifully. Anodizing creates a hard, protective layer that can be dyed in colors like clear (silver), black, bronze, or gold. This is the top choice for modern building facades.

Painted and Powder Coated Sheets

For projects requiring specific branding or colors, 6063 serves as an excellent substrate. The smooth surface allows paint to bond perfectly, ensuring no peeling or bubbling over time.

Brushed 6063 Aluminum

A mechanical brushing process creates a linear texture on the sheet. This is very popular for high-end interior design and decorative panels. It diffuses light and hides fingerprints.

Size and Specification Standards

We offer a diverse range of sizes to ensure you find the right fit for your machinery or construction project.

Available Thickness and Format Table

Product Category	Thickness (mm)	Thickness (inches)
Light Gauge Sheet	0.5 mm – 2.0 mm	0.020′′ – 0.080′′
Standard Sheet	2.1 mm – 4.5 mm	0.082′′ – 0.177′′
Heavy Gauge Plate	4.6 mm – 12.0 mm	0.181′′ – 0.472′′

Standard Dimensions in Stock

• Widths: 1000 mm, 1219 mm, 1500 mm.
• Lengths: 2000 mm, 2438 mm, 3048 mm.
• Custom Cuts: We use precision CNC saws to provide exact sizes for your workflow.

Where the 6063 Aluminum Sheet is Utilized

The versatility of the 6063 aluminum sheet allows it to move between industrial and artistic worlds seamlessly.

• Architecture & Building:
  ➜ Window and door frames where finish is critical.
  ➜ Curtain walls and building envelopes.
  ➜ Decorative ceilings and wall partitions.
• Furniture & Interior Design:
  ➜ Modern office desks and shelving units.
  ➜ Kitchen cabinets and backsplash panels.
  ➜ Lighting fixtures and lamp housings.
• Transportation:
  ➜ Trim and molding for luxury vehicles.
  ➜ Interior panels for trains and buses.
• Electronics:
  ➜ Enclosures for high-end audio equipment.
  ➜ Chassis for consumer electronics where aesthetics matter.

Comparative Analysis: 6063 vs Other Alloys

Choosing between 6063 and other 6000 or 5000 series alloys depends on your priority: Strength or Finish.

6063 vs. 6061 Aluminum

6061 is the “structural” alloy, while 6063 is the “architectural” alloy.
➜ Strength: 6061 is stronger and better for heavy load-bearing frames.
➜ Surface: 6063 has a much smoother, cleaner surface finish.
➜ Anodizing: 6063 yields a much more uniform and attractive anodized layer.

6063 vs. 5052 Aluminum

5052 is often used for sheet metal work, but it lacks the heat-treatability of 6063.
➜ Forming: 5052 is better for deep drawing and complex bends.
➜ Finishing: 6063 is superior for projects requiring a high-gloss or color-anodized look.

Detailed Comparison Table

Feature	6063-T6	6061-T6	5052-H32
Surface Quality	Excellent	Average	Good
Anodizing Quality	Best	Good	Fair
Yield Strength	145 MPa	276 MPa	193 MPa
Machinability	Average	Excellent	Fair
Weldability	Excellent	Excellent	Excellent

Temper and Hardness Options for 6063

The temper of the 6063 aluminum sheet dictates how it reacts to pressure and bending.

6063-O (Annealed)

This is the softest state. It is very easy to bend into tight radii. However, it has very low strength. It is used when extreme forming is required before heat treatment.

6063-T4 (Solution Heat Treated)

This temper offers a middle ground. It has good formability and will naturally age over time to become harder.

6063-T5 (Cooled from Extrusion/Rolling)

T5 is common for products that are cooled and then artificially aged. It provides good mechanical properties and excellent dimensional stability.

6063-T6 (Artificially Aged)

This is the most common temper for 6063 aluminum. It provides the maximum strength possible for this alloy while maintaining a high-quality surface.

Fabrication and Processing Methods

We provide several value-added services to make your 6063 aluminum plate ready for immediate use.

CNC Precision Cutting

We can cut sheets to very tight tolerances using CNC equipment. This ensures that every piece fits perfectly into your assembly line or architectural frame.

Bending and Punching

6063 is very forgiving during the bending process. We recommend a minimum bend radius based on the thickness to avoid any surface “crazing” or orange peel effects.

Protective Packaging

To preserve the premium finish of the 6063 aluminum sheet, we apply:

• Laser Film: Protects the surface during laser cutting.
• Double-Sided PVC: Ensures both sides remain scratch-free during transit.
• Wooden Crating: Heavy-duty protection for international shipping.

Material Performance Indicators

Why Partner with Us for 6063 Aluminum?

As a leading supplier of 6063 aluminum sheet, we understand that quality control is your top priority. We focus on:

1. Surface Integrity: We inspect every sheet for scratches, pits, or mill marks.
2. Batch Consistency: Our alloys are chemically tested to ensure every order meets ASTM standards.
3. Flexible Logistics: We handle both small custom orders and large-scale wholesale shipments.
4. Expert Advice: Our team can help you decide if 6063-T5 or T6 is better for your specific finishing process.

Final Summary for Engineers and Buyers

The 6063 aluminum sheet is the ultimate solution when aesthetics and durability must go hand-in-hand. While it may not be the strongest alloy in the 6000 series, its unmatched ability to accept high-quality finishes makes it indispensable. Whether you are cladding a skyscraper or designing a piece of high-end furniture, this material provides the reliability and beauty you need.

Storage and Handling Tips

• Store sheets flat on a rack. Do not lean against walls.
• Keep indoors, away from moisture and salt air.
• Separate different alloys to avoid mix-ups.
• Use gloves when handling. Edges are sharp.
• Cover with a tarp if storing for more than a month.

Frequently Asked Questions

What gauge is .063 aluminum sheet?

.063 aluminum sheet is approximately 16 gauge. In the B&S gauge system, 16 gauge aluminium is about 0.051″ to 0.064″. The exact match varies by standard. Always order by decimal thickness, not gauge number.

How much does .063 aluminum sheet weigh?

A 4×8 sheet of .063″ 3003 weighs about 28.8 pounds. A 4×10 sheet weighs about 36 pounds. Weight per square foot is roughly 0.9 pounds for 3003 alloy. 5052 is slightly lighter at 0.88 pounds per square foot.

Can I bend .063 aluminum sheet by hand?

Thin strips can be bent by hand or with pliers. For full sheets, use a brake press or bending tool. 3003-H14 and 5052-H32 bend easily. 6061-T6 needs a brake press with a larger radius.

Is .063 aluminum sheet good for outdoor use?

Yes, with the right alloy. 5052-H32 is best for salt air and marine use. 3003-H14 works well for normal outdoor air. Anodizing or painting adds extra protection.

What is the difference between .063 and 1/16 aluminum sheet?

.063″ equals 0.063 inches. 1/16″ equals 0.0625 inches. The difference is only 0.0005 inches. For most jobs, they are the same. Some suppliers list .063″ as 1/16″ for simplicity.

Can .063 aluminum sheet be welded?

Yes. All common alloys at this thickness weld well. Use TIG or MIG with 4043 or 5356 filler wire. Clean the joint first. Keep heat low to avoid burn-through.

What is the best alloy for signs?

3003-H14 is the most popular for flat signs. It is affordable and takes paint well. For outdoor signs near the coast, use 5052-H32. For routed or machined signs, 6061-T6 is better.

How do I cut .063 aluminum sheet at home?

Use tin snips for small cuts. A jigsaw with a metal blade works for larger pieces. A circular saw with a carbide blade is fastest for straight cuts. Always wear safety gear.

Is .063 aluminum sheet food safe?

Yes, if it is bare aluminium. 3003 and 1100 are common food-grade alloys. Avoid painted or coated sheets for direct food contact. Clean with soap and water before use.

Can I anodize .063 aluminum sheet?

Yes. 5052 and 6061 anodize very well. 3003 can anodize but may show a slightly mottled finish. 1000 series alloys give the brightest anodized look.

Choosing the Right .063 Sheet for Your Job
