Sublimation aluminum sheets are special metal panels made for dye-sublimation printing. They have a polyester coating on the surface. This coating accepts sublimation ink when heat and pressure are applied. The result is a vibrant, permanent image fused into the metal.
Unlike paper prints, images on sublimation aluminum sheets resist water, UV light, and scratches. The colors stay bright for decades. This makes them ideal for photos, signs, awards, and decorative art.
The process is simple. You print a mirror image on sublimation paper with special ink. Then you place the paper on the coated aluminum sheet. Heat press at 200°C for 45 to 90 seconds. The ink turns to gas and bonds with the polyester coating. When you peel the paper away, the image is locked into the metal surface.
Aluminum Alloys Used in Sublimation Sheets
The base metal matters. Different alloys affect flatness, heat transfer, and cost.
Alloy 1060 for Sublimation Aluminum Sheets
Alloy 1060 is commercially pure aluminum. It contains 99.6% aluminum or more. This makes it soft and easy to form.
| Property | Value |
|---|---|
| Purity | 99.6% min |
| Tensile strength | 70 – 100 MPa |
| Thermal conductivity | 234 W/m·K |
| Cost | Lowest |
| Best for | Budget prints, small gifts, tags |
1060 sublimation aluminum sheets work well for low-cost projects. They transfer heat evenly. The soft metal bends easily for custom shapes. But they dent more easily than harder alloys.
Alloy 1100 for Sublimation Aluminum Sheets
Alloy 1100 is also pure aluminum. It is slightly stronger than 1060.
| Property | Value |
|---|---|
| Purity | 99.0% min |
| Tensile strength | 90 – 110 MPa |
| Formability | Excellent |
| Corrosion resistance | Very good |
| Best for | Photo panels, nameplates, awards |
1100 sublimation aluminum sheets are the industry standard. They offer the best balance of cost and performance. Most blank suppliers stock this alloy. It holds the coating well. It stays flat during heat pressing.
Alloy 3003 for Sublimation Aluminum Sheets
Alloy 3003 adds 1.2% manganese. This gives it more strength than pure aluminum.
| Property | Value |
|---|---|
| Tensile strength | 110 – 140 MPa |
| Workability | Excellent |
| Coating adhesion | Very good |
| Best for | Large panels, outdoor signs, architectural use |
3003 sublimation aluminum sheets resist warping better than 1060 or 1100. They suit large-format prints that must stay flat. The extra strength also helps with outdoor applications.
Alloy Comparison Table
| Alloy | Purity/Additives | Strength | Cost | Best Application |
|---|---|---|---|---|
| 1060 | 99.6% pure Al | Low | Lowest | Budget gifts, tags, small items |
| 1100 | 99.0% pure Al | Low-Medium | Low | Photo panels, awards, standard signs |
| 3003 | 1.2% Mn | Medium | Medium | Large panels, outdoor use, architecture |
Temper and Thickness Options
By Temper Designations
Temper shows how the aluminum is treated after rolling. It affects hardness and spring-back.
| Temper | Description | Use for Sublimation |
|---|---|---|
| O | Fully annealed, soft | Deep forming, custom shapes |
| H14 | Half hard | Standard sheets, good flatness |
| H24 | Half hard, stabilized | Best flatness, resists warping |
| H18 | Full hard | Rigid panels, minimal bending |
Most sublimation aluminum sheets use H24 temper. This gives the best flatness after heat pressing. The metal does not spring back or curl.
Thickness by Application
Thickness affects rigidity, weight, and heat transfer speed.
| Thickness | Best For | Weight (per sq ft) | Heat Press Time |
|---|---|---|---|
| 0.22 mm | Bookmarks, tags, thin ornaments | ~0.05 lb | 30–45 sec |
| 0.35 mm | Keychains, small gifts, ID cards | ~0.08 lb | 45–60 sec |
| 0.45 mm | Photo panels, nameplates, awards | ~0.10 lb | 60 sec |
| 0.65 mm | Standard signs, wall art, plaques | ~0.15 lb | 60–75 sec |
| 1.0 mm | Large art prints, high-end displays | ~0.23 lb | 75–90 sec |
| 1.5 mm | Outdoor signs, architectural panels | ~0.35 lb | 90–120 sec |
| 3.0 mm | Heavy-duty signage, structural use | ~0.70 lb | 120+ sec |
The 0.45 mm and 0.65 mm thicknesses are the most popular. They offer good rigidity without excessive weight. A 0.45 mm sheet works for items up to 12″ × 18″. For larger prints, 0.65 mm or 1.0 mm prevents bowing.
Types of Sublimation Aluminum Sheets
By Surface Finish
The finish changes how the final print looks. It affects gloss, texture, and color depth.
Glossy White Sublimation Aluminum Sheets
Glossy white sheets give the brightest colors. The white base reflects light back through the ink. This creates vivid, saturated images. They are the top choice for photo prints and colorful artwork.
| Feature | Detail |
|---|---|
| Color base | Pure white |
| Gloss level | High (80+ GU at 60°) |
| Best for | Photos, vibrant art, retail displays |
| Cost | Standard |
Matte White Sublimation Aluminum Sheets
Matte white sheets reduce glare. They suit areas with bright overhead lighting. The colors look softer than glossy. They work well for professional portraits and fine art reproductions.
| Feature | Detail |
|---|---|
| Color base | White |
| Gloss level | Low (10–20 GU at 60°) |
| Best for | Galleries, offices, anti-glare needs |
| Cost | Standard |
Satin Sublimation Aluminum Sheets
Satin sits between glossy and matte. It offers a balanced sheen. This is the most versatile finish.
| Feature | Detail |
|---|---|
| Color base | White |
| Gloss level | Medium (30–50 GU at 60°) |
| Best for | General purpose, mixed lighting |
| Cost | Standard |
Brushed Silver Sublimation Aluminum Sheets
Brushed silver has a fine linear texture. The metal shows through in unprinted areas. This creates a metallic effect in the image. It is popular for modern decor and industrial-style art.
| Feature | Detail |
|---|---|
| Base effect | Metallic silver with brush lines |
| Printed areas | Full color over silver |
| Unprinted areas | Brushed metal visible |
| Best for | Modern art, tech decor, masculine themes |
Brushed Gold Sublimation Aluminum Sheets
Brushed gold works like brushed silver but with a warm golden tone. It adds luxury to awards and high-end gifts.
| Feature | Detail |
|---|---|
| Base effect | Metallic gold with brush lines |
| Best for | Trophies, premium gifts, hospitality decor |
| Cost | 10–15% premium over silver |
Mirror Silver Sublimation Aluminum Sheets
Mirror silver has a reflective, chrome-like surface. The printed image sits on top of a mirror. This creates striking visual effects.
| Feature | Detail |
|---|---|
| Reflectivity | High, mirror-like |
| Best for | Luxury displays, jewelry-style art, signage |
| Cost | 15–20% premium |
Mirror Gold Sublimation Aluminum Sheets
Mirror gold combines high reflectivity with a golden hue. It is the most premium option.
| Feature | Detail |
|---|---|
| Reflectivity | High, golden mirror |
| Best for | High-end awards, exclusive gifts, decorative art |
| Cost | 20–25% premium |
Pearlized Sublimation Aluminum Sheets
Pearlized sheets have a subtle shimmer. The surface catches light like pearl paint on a car.
| Feature | Detail |
|---|---|
| Effect | Soft iridescent shimmer |
| Best for | Wedding photos, feminine decor, soft themes |
| Cost | 10% premium |
Finish Comparison Table
| Finish | Base Color | Effect | Best For | Relative Cost |
|---|---|---|---|---|
| Glossy white | White | Bright, vivid | Photos, colorful art | Standard |
| Matte white | White | Soft, no glare | Galleries, offices | Standard |
| Satin white | White | Balanced | General purpose | Standard |
| Brushed silver | Silver | Metallic texture | Modern, industrial | +5% |
| Brushed gold | Gold | Warm metallic | Luxury, awards | +10% |
| Mirror silver | Silver | High reflection | Premium displays | +15% |
| Mirror gold | Gold | Golden reflection | Exclusive items | +20% |
| Pearlized | White/pearl | Soft shimmer | Wedding, soft themes | +10% |
Sublimation Aluminum Sheets vs Other Print Media
Sublimation Aluminum vs Sublimation Ceramic
Ceramic mugs and tiles are common sublimation items. But aluminum offers advantages for flat displays.
| Factor | Sublimation Aluminum Sheets | Sublimation Ceramic |
|---|---|---|
| Weight | Light | Heavy |
| Breakability | Will not break | Fragile |
| Size range | Up to 4×8 feet | Limited by kiln size |
| Outdoor use | Excellent | Poor |
| Mounting options | Many (standoffs, frames, float) | Limited |
| Cost per sq in | Lower for large sizes | Higher |
| Best for | Wall art, signs, awards | Mugs, coasters, small gifts |
Aluminum wins for large wall displays and outdoor use. Ceramic wins for drinkware and small gift items.
Sublimation Aluminum vs Photo Paper
Traditional photo paper is cheaper. But it lacks the durability and impact of metal.
| Factor | Sublimation Aluminum Sheets | Photo Paper |
|---|---|---|
| Lifespan | 40–60 years | 10–20 years |
| Water resistance | Fully waterproof | Damaged by water |
| UV resistance | Excellent | Fades in sunlight |
| Scratch resistance | Very high | Low |
| Frame needed | Optional (can float mount) | Required |
| Cost per print | Higher | Lower |
| Best for | Permanent displays, gifts | Temporary, budget prints |
For gifts that last a lifetime, sublimation aluminum sheets are worth the extra cost. For quick proofs or temporary displays, paper works fine.
Sublimation Aluminum vs Direct-to-Metal UV Printing
UV printers can print directly on bare metal. This skips the coating step.
| Factor | Sublimation Aluminum Sheets | Direct UV on Metal |
|---|---|---|
| Color vibrancy | Higher | Lower |
| Scratch resistance | Ink is in the coating | Ink sits on surface |
| Outdoor durability | 30+ years | 5–10 years |
| Cost per print | Lower ink cost | Higher ink cost |
| Setup cost | Heat press needed | UV printer needed |
| Best for | High-volume, photo quality | Short runs, variable data |
Sublimation gives deeper, richer colors. The ink becomes part of the coating. UV ink sits on top and can scratch off. For photo-quality work, sublimation aluminum sheets are the better choice.
Standard Sizes and Custom Options
Common Sheet Sizes
| Size | Dimensions | Typical Use |
|---|---|---|
| A6 | 105 × 148 mm | Tags, small ornaments |
| A5 | 148 × 210 mm | Small photo panels, bookmarks |
| A4 | 210 × 297 mm | Standard photos, awards |
| A3 | 297 × 420 mm | Large photos, wall art |
| 12″ × 18″ | 305 × 457 mm | Popular US size for signs |
| 12″ × 24″ | 305 × 610 mm | Panoramic prints, long signs |
| 24″ × 36″ | 610 × 914 mm | Large displays, posters |
| 48″ × 96″ | 1,220 × 2,440 mm | Architectural panels, murals |
Custom sizes are available. Suppliers can cut sheets to any shape. Round, oval, and irregular shapes are common for awards and ornaments.
Corner Options
| Corner Type | Best For | Cost Impact |
|---|---|---|
| Square | Standard frames, mounting | None |
| Rounded (R3–R5) | Safety, modern look | Minimal |
| Custom shaped | Unique awards, ornaments | Die cost |
Heat Transfer Parameters
Getting the time and temperature right is critical.
| Thickness | Temperature | Time | Pressure |
|---|---|---|---|
| 0.22–0.35 mm | 180–200°C | 30–60 sec | Medium |
| 0.45–0.55 mm | 200°C | 60 sec | Medium |
| 0.65–0.75 mm | 200°C | 60–75 sec | Medium-High |
| 1.0 mm | 200°C | 75–90 sec | High |
| 1.5+ mm | 200°C | 90–120 sec | High |
Always use a teflon sheet or parchment paper to protect the heat press. Do not let the metal touch the heating element directly. Use heat-resistant tape to hold the transfer paper in place. Peel the paper while hot for the sharpest image.
Applications of Sublimation Aluminum Sheets
Photography and Art
- Wedding and portrait prints
- Landscape and wildlife photography
- Fine art reproductions
- Gallery exhibitions
- Museum displays
Awards and Recognition
- Corporate plaques
- Sports trophies
- Academic certificates
- Military commendations
- Retirement gifts
Signage and Advertising
- Store displays
- Real estate signs
- Trade show graphics
- Menu boards
- Directional signs
Home and Office Decor
- Kitchen backsplash art
- Bathroom prints (waterproof)
- Office wall art
- Personalized gifts
- Holiday ornaments
Industrial and Functional
Safety warning signs
Equipment nameplates
Control panel labels
Serial number tags
Barcode and QR code plates
Quality Grades and Certifications
| Grade | Description | Best For |
|---|---|---|
| A grade | Premium coating, no defects, export quality | Professional photographers, high-end gifts |
| B grade | Minor coating variations, good for most uses | Budget projects, promotional items |
| C grade | Visible defects, inconsistent coating | Testing, practice sheets |
Look for suppliers with ISO 9001 certification. This ensures consistent coating quality. Ask for sample sheets before placing large orders. Test your specific heat press with the sample to confirm color accuracy.

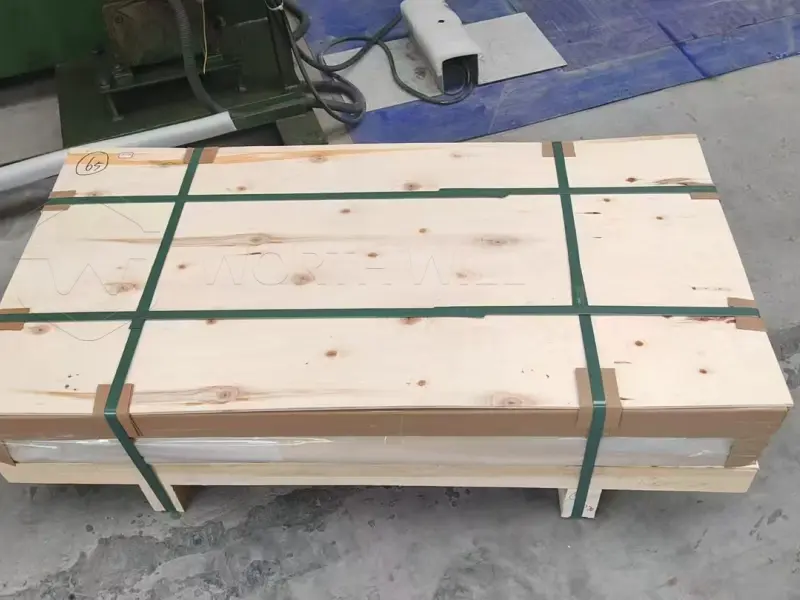

Packaging and Protection
Sublimation aluminum sheets ship with a PE protective film. This prevents scratches during handling. Remove the film only after pressing. Some sheets also have a paper interleaf between stacked panels.
| Packaging Type | Protection Level | Best For |
|---|---|---|
| PE film only | Basic scratch protection | Standard sheets |
| PE film + paper interleaf | Extra protection | Mirror and glossy finishes |
| Individual foam pouch | Maximum protection | Premium sheets, long shipping |
| Wooden crate | Structural protection | Large architectural panels |
Pricing Guide
Price by Thickness and Alloy
| Thickness | Alloy 1060 | Alloy 1100 | Alloy 3003 |
|---|---|---|---|
| 0.45 mm | $1.20–$1.50/sheet | $1.30–$1.60/sheet | $1.50–$1.90/sheet |
| 0.65 mm | $1.80–$2.20/sheet | $2.00–$2.50/sheet | $2.30–$2.80/sheet |
| 1.0 mm | $3.00–$3.80/sheet | $3.30–$4.20/sheet | $3.80–$4.80/sheet |
Prices vary by finish. Mirror gold and specialty finishes add 15–25%. Bulk orders of 500+ sheets get 10–20% discounts. Custom sizes and shapes may have tooling fees.
FAQ: Common Questions About Sublimation Aluminum Sheets
What Is the Best Alloy for Sublimation Aluminum Sheets
Alloy 1100 is the best all-around choice. It offers good flatness and coating adhesion at a fair price. For large outdoor panels, upgrade to 3003. For budget items like keychains, 1060 works fine.
Can I Use Regular Aluminum Sheets for Sublimation
No. Regular aluminum has no polyester coating. The sublimation ink will not bond. It will wipe off. You must use sheets with a factory-applied sublimation coating.
How Thick Should Sublimation Aluminum Sheets Be
For photo panels up to 12″ × 18″, use 0.45 mm. For larger wall art, use 0.65 mm or 1.0 mm. And For outdoor signs, use 1.0 mm or thicker. Thinner sheets are fine for small items like tags and ornaments.
Do Sublimation Aluminum Sheets Fade Outdoors
High-quality sheets with proper coating resist UV fading for 30 years or more. Mirror and glossy finishes fade slightly faster than matte. For maximum outdoor life, choose a matte or satin finish with a UV-stable coating.
Can I Cut Sublimation Aluminum Sheets After Printing
Yes. Use a shear, CNC router, or laser cutter. Protect the printed surface with masking tape before cutting. For hand cutting, score the back with a utility knife and snap. Do not use a saw that will scratch the face.
What Heat Press Settings Work Best
Most sheets press at 200°C for 60 seconds. Thinner sheets need less time. Thicker sheets need more. Always test a sample first. Every heat press is slightly different. Adjust time and pressure based on your results.
How Do I Mount Sublimation Aluminum Sheets
Options include float mounts, standoffs, easel backs, and frames. Float mounts use a hidden bracket on the back. The panel appears to float off the wall. Standoffs use metal posts at the corners. This gives a modern, industrial look.
Are Sublimation Aluminum Sheets Eco-Friendly
Yes. Aluminum is 100% recyclable. The coating is minimal. The printing process uses water-based inks. No solvents or VOCs are released. At end of life, the aluminum can be melted and reused.
Why Choose Sublimation Aluminum Sheets for Your Next Project
Sublimation aluminum sheets turn ordinary photos into extraordinary art. The colors pop. The surface shines. The print lasts for decades.
The alloy matters. 1100 gives the best balance. 3003 adds strength for large panels. The thickness matters. 0.45 mm suits most photos. 1.0 mm handles outdoor wind and weather. The finish matters. Glossy white makes colors sing. Brushed silver adds metallic depth. Mirror gold screams luxury.
The coating quality matters most. A-grade coating transfers ink evenly. It resists scratches. It holds color in sun and rain. Cheap coating flakes off. It fades in months. It ruins your reputation.
Whether you print wedding photos, corporate awards, or outdoor signs, sublimation aluminum sheets deliver. Work with a supplier who offers samples, test reports, and custom cutting. The right sheet will make your prints shine for years.
