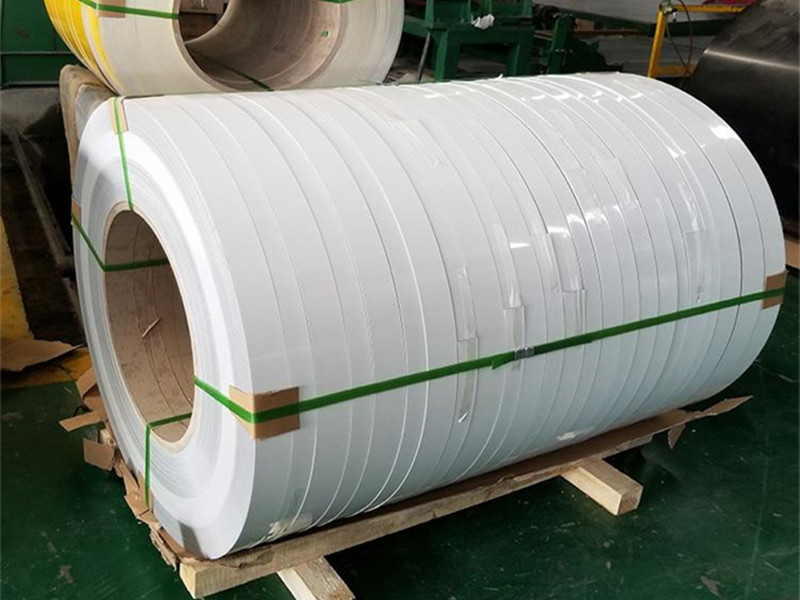

Aluminum Trim Coil For Gutter
In some countries and areas, people need gutter to decorate and protect their house. During the construction of house construction, the gutter is set in the where the house directs the flow of water.
As we all know, when it rains, there need something to directs rainwater to the ground. For many people, aluminum coil is the ideal choice.
Types of aluminum trim
Aluminum trim coils has various types according to aluminum alloy, color and thickness. Detailed information as follows.
- Aluminum Alloy: In our factory, we mainly produce 1000-8000 series aluminum alloy coil. Common and hot aluminum alloy include 1000series, 3000 series and 5000 series. Clients can according to their projects to choose the suitable aluminum alloy to produce aluminum coil.
- Color: Aluminum trim coils are rich in colors. Various colors include red, blue, yellow and black etc. Customize available. In addition, the color is not easy to fade, and has a long service life.
- Coating Surface: PE and PVDF are the main coated paints. PE coating is suitable for interior, and PVDF is suitable for exterior. Others include PPGI we also can produce.
Why choose aluminum trim coil?
There are many metals can make roofing gutter, but there are also many people to choose aluminum coil. Why? I summarize the reasons as follows.
Long service life
A durable mar-resistant and finish
Various colors, beautiful surface, good visual effect
Anti-corrosion, not rust
Easy to clean and maintain
Our aluminum products withstand the elements and enhance the style of any home for years to come. Our aluminum coils are available in a wide variety of colors and have a smooth finish.
Finish your home with matching trim coil, you get the performance you’re looking for and the great looks you want.
What is Aluminum Gutter Coil?
An aluminum gutter coil is a long strip of aluminum rolled into a tight circle. It is designed to be fed into a “seamless gutter machine.” This machine bends the flat metal into the shape of a gutter right at the job site.
Table: Basic Product Overview
| Feature | Description |
|---|---|
| Material | High-quality Aluminum Alloy |
| Common Grades | 3003, 3105, 1100 |
| Processing | Cold Rolled and Color Coated |
| Application | Residential and Commercial Gutters |
We use specific alloys like 3003 because they are easy to bend but strong enough to hold heavy rain and snow. The 3105 alloy is also common because it is made from recycled materials, making it a green choice.
Common Specifications and Sizes
The most common request we see is for Aluminum Gutter Coils .032″ x 11.75″ or 15″. These numbers are very important for your gutter machine.
Table: Dimensional Specifications
| Parameter | Standard Sizes |
|---|---|
| Thickness (Gauge) | 0.027″ (0.69 mm) or 0.032″ (0.81 mm) |
| Width for 5″ Gutter | 11.75 inches |
| Width for 6″ Gutter | 15.00 inches |
| Coil Weight | 300 lbs to 1000 lbs |
The Aluminum trim coil thickness usually ranges from 0.019″ for basic trim to 0.032″ for heavy-duty gutters. If you live in a place with lots of snow, the 0.032″ thickness is the best choice because it won’t sag.

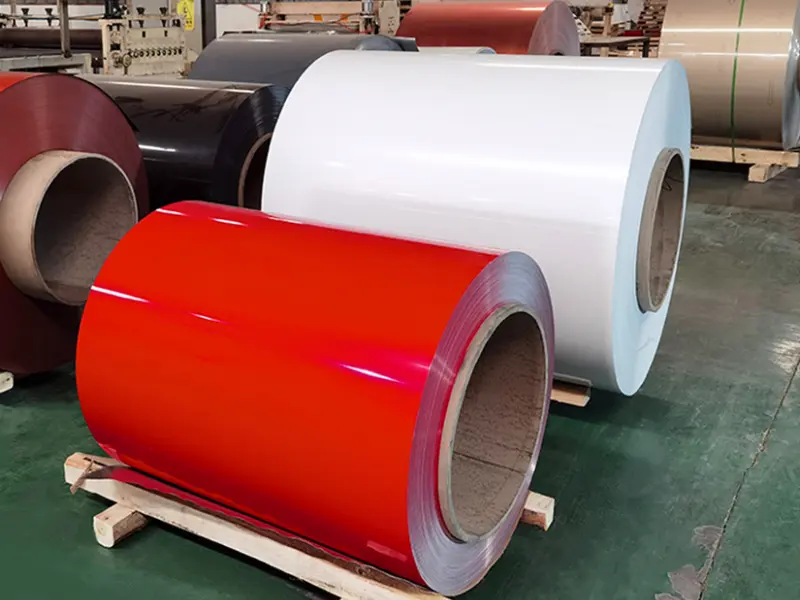

Types of Painted Aluminum Trim Coil
Appearance matters just as much as strength. Painted aluminum trim coil is treated with a multi-layer coating system. This prevents the paint from cracking when the metal is bent by a machine.
Popular Coating Types:
- Polyester (PE): Great for standard colors and budget-friendly.
- Polyvinylidene Fluoride (PVDF): Best for UV resistance. The color will not fade even in hot sun.
- High-Durable Polyester (HDP): A middle-ground option for long-lasting color.
Color Varieties
We offer a wide range of colors to match any house:
- Classic White and Royal Brown
- Black and Charcoal Gray
- Forest Green and Musket Brown
- Terracotta and Cream
The Difference Between Trim Coil and Gutter Coil
Many people ask: Is a trim coil the same as a gutter coil? The answer is: Not exactly.
Table: Comparison of Trim vs. Gutter Coil
| Feature | Trim Coil | Gutter Coil |
|---|---|---|
| Primary Use | Wrapping windows and doors | Making rain gutters |
| Flexibility | Very flexible (easy to hand-bend) | Stiffer (made for machines) |
| Standard Thickness | Often 0.019″ | Usually 0.027″ or 0.032″ |
| Finish | Often textured or matte | Usually smooth or high-gloss |
Gutter trim coil is thinner. Aluminum gutter coil is thicker because it must hold the weight of water.
Using Aluminum Coil for Gutter Machines
If you own a business, you need an aluminum coil for gutter machine use that is “levelled.” This means the coil is perfectly flat. If the coil has waves, it will jam the machine.
Features of Machine-Grade Coils:
Tension Levelled: This ensures the gutter comes out straight and does not “curve” to one side.
Waxed Surface: We apply a thin layer of clear wax. This helps the metal slide through the machine rollers without scratching the paint.
Inner Core Sizes: Usually 16 inches or 20 inches to fit standard machine cradles.
Applications of Aluminum Coil
These coils are not just for gutters.
- Residential Gutters: K-style and half-round gutter systems.
- Roofing Flashing: To prevent leaks around chimneys and valleys.
- Soffit and Fascia: To cover exposed wood and protect it from rot.
- Window Capping: Wrapping wooden window frames to make them maintenance-free.
- Downspouts: Creating the vertical pipes that carry water to the ground.
Understanding the Price
When looking at the Aluminum gutter coil price per foot, several things change the cost.
Table: Price Factors
| Factor | Effect on Price |
|---|---|
| Thickness | 0.032″ costs more than 0.027″ because it is heavier. |
| Color | Custom colors may cost more than standard White or Brown. |
| Market Value | Aluminum is a commodity; prices change daily on the LME. |
| Quantity | Buying a full pallet of coils is cheaper than buying one. |
To get the best deal, contact Gutter coil manufacturers directly. This removes the “middleman” cost.
Why Choose Aluminum over Other Metals?
You might wonder, is gutter coil aluminum? Yes, almost always. While copper and steel exist, aluminum is the winner for several reasons:
- No Rust: Unlike steel, aluminum forms its own protective layer. Even if it gets scratched, it won’t rust through.
- Lightweight: It is much easier for installers to hang a 40-foot long gutter if it is made of aluminum.
- Cost: It is much cheaper than copper but lasts almost as long.
How Trim Coil Fits Into a Gutter System
Aluminum trim coil is not usually the gutter itself.
It is a flat aluminum coil used to make or finish different parts of a gutter system.
A typical production route is:
Aluminum Trim Coil
→ Uncoiling
Cutting
→ Bending
Folding
→ Forming
→ Finished Gutter Component
This makes coil width, thickness, coating, and formability important when selecting the material.
Trim Coil vs Pre-Cut Aluminum Sheet
Both materials can be used for fabrication, but they are not the same choice.
| Feature | Aluminum Trim Coil | Aluminum Sheet |
|---|---|---|
| Form | Coil | Flat sheet |
| Continuous production | Excellent | Limited |
| Cutting waste | Can be lower | Depends on cutting |
| Bending | Easy for coil processing | Easy |
| Storage | Compact | Requires flat storage |
| Long profiles | Very suitable | More joints |
| Custom slitting | Available | Less flexible |
| Gutter fabrication | Excellent | Possible |
For long gutter components, coil material can make production more efficient.
Choosing the Right Coil Thickness
Thickness should match the forming process and final use.
| Thickness | General Direction |
|---|---|
| 0.30 mm | Lightweight trim |
| 0.40 mm | General trim applications |
| 0.50 mm | Common gutter and flashing work |
| 0.60 mm | Higher rigidity |
| 0.70 mm+ | Special requirements |
A thicker coil can provide greater rigidity.
However, thicker material may require more forming force.
The best thickness depends on the profile, equipment, and local requirements.
Width Matters More Than Many Buyers Expect
Coil width should be selected based on the finished component.
A simple calculation is:
Required width = Finished profile width + forming allowance + edge allowance
If the coil is too narrow, it may not provide enough material for the finished profile.
If it is too wide, more material may be wasted.
For high-volume production, matching the coil width to the forming line can improve material efficiency.
Common Aluminum Trim Coil Widths
Different fabrication machines require different widths.
| Width | General Direction |
|---|---|
| 100–200 mm | Narrow trim |
| 201–300 mm | Flashing and smaller profiles |
| 301–400 mm | General trim |
| 401–500 mm | Wider profiles |
| 500 mm+ | Special fabrication |
Custom widths can be produced according to the customer’s equipment and finished dimensions.
Which Alloy Is Suitable for Trim Coil?
Alloy selection affects bending and forming performance.
| Alloy | Formability | Strength | General Direction |
|---|---|---|---|
| 1050 | ★★★★★ | ★★ | Simple formed parts |
| 1060 | ★★★★★ | ★★ | General trim |
| 1100 | ★★★★★ | ★★★ | Gutter components |
| 3003 | ★★★★ | ★★★★ | Higher-strength trim |
| 3105 | ★★★★ | ★★★★ | Coated gutter coil |
For many coated trim coil products, 3003 and 3105 are practical choices because they offer a good balance between formability and strength.
O Temper or H14?
Temper is important when the coil will be bent several times.
| Temper | General Character |
|---|---|
| O | Very soft and highly formable |
| H12 | Soft to medium |
| H14 | Medium strength |
| H16 | Higher strength |
| H18 | Hard condition |
If the profile has tight bends, a softer temper may be easier to process.
If the finished component needs more rigidity, a harder temper may be considered.
Painted Aluminum Trim Coil
Pre-painted coil can save time during production.
Instead of forming plain aluminum and painting it later, the material already has a finished color.
This can provide:
→ Consistent appearance
→ Faster fabrication
Less finishing work
Better color control
→ Cleaner production
For gutter manufacturers, pre-painted aluminum trim coil is often useful when large quantities of the same color are required.
Popular Trim Coil Colors
Color selection is often linked to the roof and exterior wall.
| Color Direction | Common Design |
|---|---|
| White | Light exterior |
| Black | Modern buildings |
| Brown | Traditional homes |
| Bronze | Premium exterior |
| Gray | Modern architecture |
| Beige | Warm exterior |
| Green | Natural style |
| Custom RAL color | Special projects |
For large projects, a physical color sample should be approved before mass production.
Matching Trim Coil With the Roof
A gutter is part of the building exterior.
The trim color should work with the roof, fascia, siding, and other exterior components.
For example:
Dark roof → Black / dark gray trim
Brown roof → Brown / bronze trim
Light roof → White / beige trim
Modern facade → Gray / black trim
Good color matching can make the entire gutter system look more complete.
Glossy or Matte Finish?
The surface finish changes the appearance of the final product.
| Finish | Visual Character |
|---|---|
| Glossy | Bright and clean |
| Semi-gloss | Balanced |
| Matte | Soft and modern |
| Textured | Hides minor marks |
| Wood-look | Decorative |
For exterior trim, a low- or medium-gloss finish can provide a practical balance between appearance and maintenance.
Coil Coating Is More Than Color
The coating system should also be considered.
Different coatings provide different levels of weather performance.
| Coating | General Direction |
|---|---|
| Polyester | General exterior use |
| PE | Economical coated products |
| PVDF | Higher-end architectural use |
| Custom coating | Special requirements |
The right coating depends on the expected service environment, color requirements, and project budget.
Gutter Trim Coil for Different Climates
The installation environment matters.
| Environment | Key Concern |
|---|---|
| Dry area | UV exposure |
| Rainy area | Moisture |
| Coastal area | Salt and corrosion |
| Cold area | Temperature changes |
| Hot area | Heat and UV |
| Industrial area | Pollutants |
For demanding environments, alloy and coating should be selected together.
Why Coastal Projects Need More Attention
Coastal buildings can expose aluminum to salt and moisture.
This does not mean aluminum cannot be used near the sea.
It means material selection becomes more important.
For coastal gutter projects, consider:
→ Suitable alloy
Proper coating
→ Good edge protection
Correct fasteners
→ Proper drainage
→ Avoiding water traps
The complete gutter system should be considered rather than the coil alone.
Coil Formability and Profile Design
A gutter trim coil may pass through several forming steps.
For example:
Flat coil
→ First bend
Second bend
Edge fold
→ Final profile
Every additional bend increases the importance of material formability.
If the coil is too hard for the forming design, cracking or surface damage may occur.
How to Reduce Material Waste
Coil width should be optimized for the final profile.
For example:
Standard width
→ More trimming
→ More scrap
Optimized width
Better material utilization
Less waste
Lower material cost
For large-volume production, even a small reduction in scrap can create meaningful savings.
Trim Coil Weight and Shipping
Aluminum trim coil is commonly purchased by weight.
Shipping weight depends on:
Thickness × Width × Length × Material Density
A wider and thicker coil will weigh more.
For export orders, buyers should also consider:
- Coil outer diameter
- Coil inner diameter
- Net weight
- Gross weight
- Number of coils
- Pallet weight
- Container loading
These details help with transportation planning.
Jumbo Coil or Smaller Coil?
The best coil size depends on the production line.
| Coil Type | Suitable For |
|---|---|
| Small coil | Small workshops |
| Medium coil | Regular production |
| Jumbo coil | High-volume lines |
| Custom coil weight | Special equipment |
Larger coils can reduce the number of coil changes.
Smaller coils can be easier to handle.
Why Inner Diameter Matters
The coil inner diameter must match the equipment.
Common options can include:
75 mm
150 mm
200 mm
300 mm
Other dimensions may be available for special equipment.
Always confirm the required core size before placing an order.
Protective Film for Painted Trim Coil
A protective film can help reduce scratches during processing and transportation.
It can be useful when the coil will go through:
- Slitting
- Roll forming
- Bending
- Cutting
- Transportation
- Installation
The film type should also be compatible with the coating and storage conditions.
Trim Coil Storage Tips
Proper storage helps protect the surface.
Keep coils:
→ Dry
→ Covered
Away from direct rain
Away from chemical contamination
→ On suitable supports
Condensation should also be avoided.
When aluminum coil is exposed to moisture while tightly packed, surface problems can occur.
What Makes a Good Gutter Trim Coil?
A good product should offer a balance of:
Formability
Thickness consistency
Width accuracy
Surface quality
Color consistency
Coating adhesion
Flatness
Coil winding quality
This is more useful than judging a coil only by its price per kilogram.
A Better Way to Compare Supplier Quotes
When comparing offers, use more than the unit price.
| Item | Supplier A | Supplier B |
|---|---|---|
| Alloy | ✓ | ✓ |
| Temper | ✓ | ✓ |
| Thickness | ✓ | ✓ |
| Width tolerance | ? | ? |
| Coating | ? | ? |
| Color | ? | ? |
| Core size | ? | ? |
| Coil weight | ? | ? |
| Protective film | ? | ? |
| Packaging | ? | ? |
| Lead time | ? | ? |
A slightly higher material price may still be better if the coil creates less waste and fewer production problems.
Custom Gutter Trim Coil From the Factory
Our factory can supply aluminum trim coil for gutter and exterior finishing projects.
| Item | Options |
|---|---|
| Alloy | 1050 / 1060 / 1100 / 3003 / 3105 |
| Temper | O / H12 / H14 / H16 |
| Thickness | Customized |
| Width | Customized |
| Coil ID | 75 / 150 / 200 / 300 mm |
| Surface | Smooth / coated |
| Color | White / Black / Brown / Gray / Custom |
| Coating | PE / Polyester / PVDF |
| Protective film | Available |
| Coil weight | Customized |
| Packing | Export packing |
Custom widths are useful for manufacturers that want to reduce trimming and material waste.
From Coil to Finished Gutter Trim
This is another visual section you can place on the page:
Raw Aluminum Coil
↓
Surface Inspection
↓
Slitting
↓
Coating / Color Control
↓
Rewinding
↓
Roll Forming
↓
Bending
↓
Cutting
↓
Finished Gutter Component
↓
Quality Inspection
This makes the page more useful for buyers who are unfamiliar with the production process.
Quick Selection Guide
Need easy bending?
→ Consider a suitable soft or medium temper.
Need higher strength?
→ Consider 3003 or 3105.
Need custom colors?
→ Choose pre-painted aluminum trim coil.
Need long production runs?
→ Consider larger coil weights.
Need less waste?
→ Match coil width to the finished profile.
Need coastal use?
→ Review alloy, coating, edges, and fasteners.
Need a premium appearance?
→ Consider a higher-performance coating and controlled color matching.
Need automated production?
→ Confirm coil ID, weight, width, and winding requirements.
Information to Send for a Trim Coil Quote
A complete inquiry can be very simple:
| Requirement | Example |
|---|---|
| Product | Aluminum Trim Coil for Gutter |
| Alloy | 3105 |
| Temper | H14 |
| Thickness | 0.50 mm |
| Width | 300 mm |
| Color | White |
| Coating | PE |
| Coil ID | 150 mm |
| Coil Weight | 500 kg |
| Quantity | 10 tons |
| Application | Gutter trim |
If you have a finished profile drawing, it is even better to send it with the inquiry.
Summary of Product Specs for Professional Buyers
If you are ready to order, here is the technical summary you can send to your supplier.
Table: Professional Order Checklist
| Category | Technical Specification |
|---|---|
| Alloy/Temper | 3105-H24 or 3003-H14 |
| Thickness | 0.027″ or 0.032″±0.0005″ |
| Width | 11.75″ or 15″ |
| Coating | Top: 25 micron PE; Back: 5−8 micron Wash Coat |
| Surface | Smooth or Embossed (Stucco) |
Frequently Asked Questions (FAQ)
What gauge aluminum is best for gutters?
For most homes, 0.027 gauge is the standard. However, for areas with heavy snow or for 6-inch commercial gutters, 0.032 gauge is the best choice. It provides the extra strength needed to prevent bending.
What is an aluminum trim coil used for?
It covers the wooden parts of a house (like around windows or under the roofline) to protect them from rain. It makes the house look clean and means you never have to paint the wood again.
Can I use trim coil to make a gutter?
No. Trim coil is usually too thin (0.019″). If you try to make a gutter out of it, the gutter will collapse under the weight of a heavy rainstorm. Always use proper gutter-grade coil (0.027″ or thicker).
How do I store my coils?
You should store aluminum gutter coils in a dry, cool place. If water gets trapped between the layers of the coil, it can cause “white rust” or damage the paint. Keep them off the ground on a pallet.
