Color Coated Aluminum refers to aluminum coil or sheet that has been surface coated with paint, powder, or other protective layers. This process improves appearance, corrosion resistance, and service life. Color coated aluminum coil and sheet are widely used in construction, roofing, cladding, signage, and industrial applications.
Coated Aluminum Coil and Sheet
Color coated aluminum is supplied mainly in coil and sheet form.
| Product Form | Description |
|---|---|
| Coated aluminum coil | Continuous roll, ideal for mass production |
| Coated aluminum sheet | Cut-to-size panels for direct use |
Both forms are widely used in architectural and industrial projects.
Types of Color Coated Aluminum
PE Coated Aluminum (Polyester)
| Feature | Value |
|---|---|
| Coating thickness | 18–25 μm |
| Weather resistance | Medium |
| Color options | Wide range |
| Typical use | Indoor & light outdoor use |
PE coated aluminum is cost-effective and commonly used for interior panels, ceilings, and signage.
PVDF Coated Aluminum (Polyvinylidene Fluoride)
| Feature | Value |
|---|---|
| Coating thickness | 25–35 μm |
| Weather resistance | Excellent |
| UV resistance | Very high |
| Typical use | Exterior cladding, facades |
PVDF coated aluminum provides superior durability and long-term color retention.
Powder Coated Aluminum
| Feature | Value |
|---|---|
| Surface | Thick, uniform coating |
| Scratch resistance | High |
| Application | Indoor & outdoor |
| Finish | Matte, glossy, textured |
Powder coating is environmentally friendly and widely used for aluminum profiles and panels.
PE vs PVDF Coated Aluminum
| Item | PE Coated Aluminum | PVDF Coated Aluminum |
|---|---|---|
| Cost | Lower | Higher |
| Lifespan | 5–10 years | 15–25 years |
| UV resistance | Moderate | Excellent |
| Outdoor use | Limited | Strongly recommended |
PVDF coated aluminum is the best choice for long-term outdoor projects.
What Can I Use to Color Aluminum?
Common methods to color aluminum include:
- PE or PVDF paint coating
- Powder coating
- Anodizing
- Electroplating (limited use)
Among these, color coated aluminum is the most practical for large-scale production.
How Long Will Powder Coated Aluminum Last?
| Environment | Estimated Lifespan |
|---|---|
| Indoor | 15–20 years |
| Outdoor (normal) | 10–15 years |
| Harsh climate | 8–12 years |
Proper surface preparation greatly improves coating durability.
What Is the Best Coating for Aluminum?
The best coating depends on the application.
| Application | Recommended Coating |
|---|---|
| Interior decoration | PE coating |
| Exterior cladding | PVDF coating |
| Industrial use | Powder coating |
| High-end appearance | PVDF or anodized |
For building facades, PVDF coated aluminum is widely regarded as the best option.
Common Specifications of Color Coated Aluminum
| Parameter | Range |
|---|---|
| Thickness | 0.2 – 3.0 mm |
| Width | 600 – 1600 mm |
| Coating thickness | 18 – 35 μm |
| Core alloy | 3003, 3105, 5005 |
| Color | RAL / Custom |
Applications
- Building cladding and facades
- Roofing and wall panels
- Ceiling systems
- Advertising signs
- Household appliances
- Transportation panels
Advantages
| Advantage | Description |
|---|---|
| Lightweight | Easy to transport and install |
| Durable | Resistant to corrosion and UV |
| Color consistency | Stable and uniform |
| Customizable | Many colors and finishes |
| Low maintenance | Easy to clean |
Surface Quality and Testing
Quality control for coated aluminum includes:
- Coating thickness measurement
- Adhesion testing
- Color consistency check
- Gloss level inspection
- Bend and impact tests

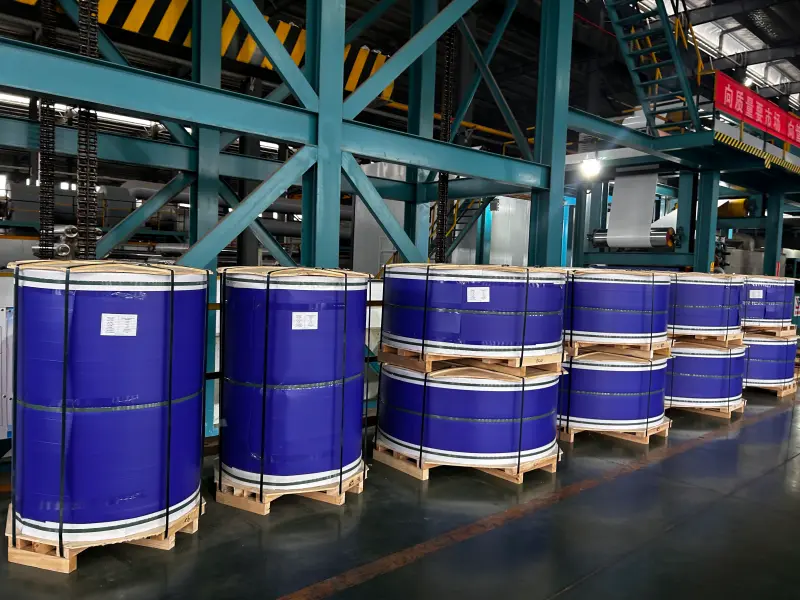

Packaging and Protection
| Method | Purpose |
|---|---|
| Protective film | Prevent scratches |
| Eye-to-wall packing | Coil stability |
| Wooden pallets | Safe transport |
| Waterproof wrapping | Export protection |
How to Choose the Right Color Coated Aluminum
When selecting color coated aluminum, consider:
- Indoor or outdoor use
- Required lifespan
- Coating type (PE or PVDF)
- Color and gloss level
- Thickness and width
Coated Aluminum Coil and Sheet for Construction and Industry
Color Coated Aluminum is a versatile and durable material suitable for construction, decoration, and industrial use. With options like PE coated aluminum, PVDF coated aluminum, and powder coated aluminum, customers can choose the best solution based on performance and budget. Coated aluminum coil and sheet provide long service life, stable color, and excellent protection.
What Is Coated Aluminum?
Coated aluminum is aluminum that has been treated with a surface coating such as PE, PVDF, powder coating, or anodizing. The coating protects the aluminum from corrosion, UV exposure, and weather while also adding color and decorative value.
Key benefits of coated aluminum:
- Better corrosion resistance
- Long-lasting color stability
- Smooth and uniform surface
- Easy maintenance
- Lightweight and durable
