Protecting your industrial, commercial, and even residential pipe insulation is crucial for maintaining energy efficiency, preventing damage, and ensuring the longevity of your system. Aluminium cladding for pipe insulation is a top choice for this critical protective layer. While considering your project, the price of this cladding is undoubtedly a key factor.
What is Aluminium Cladding for Pipe Insulation?

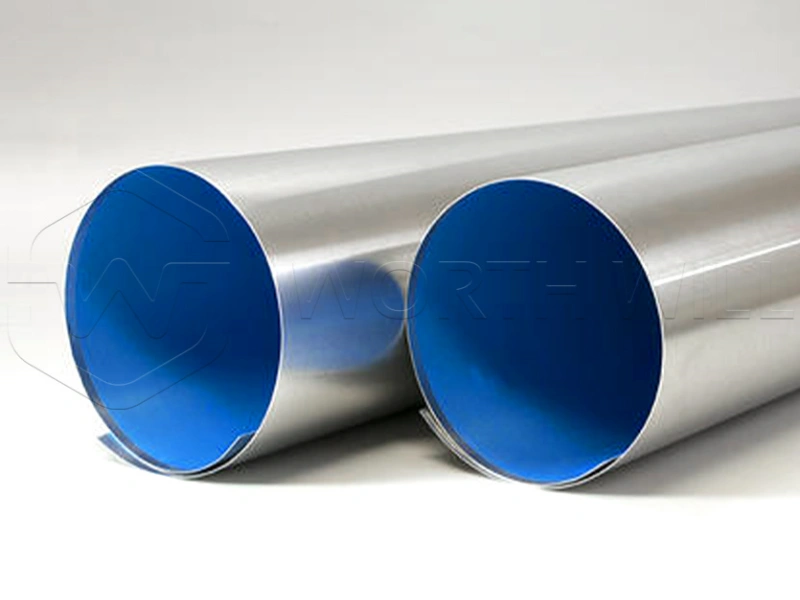

Aluminium cladding (also known as aluminum jacketing or aluminum cover) is a protective outer layer applied over thermal or acoustic insulation on pipes, tanks, and equipment. Its primary function is to shield the insulation from mechanical damage, weather elements, UV radiation, chemicals, and moisture. This ensures the insulation remains effective and extends its lifespan significantly.
Why Use Aluminium Cladding for Pipe Insulation?
Using aluminium cladding offers numerous benefits:
- Excellent Protection: Shields insulation from physical impacts, abrasion, and puncture.
- Weather Resistance: Provides a barrier against rain, snow, ice, and wind.
- UV Resistance: Prevents degradation of insulation materials exposed to sunlight.
- Moisture Barrier: Helps prevent water ingress, which can severely reduce insulation efficiency and lead to corrosion under insulation (CUI).
- Fire Resistance: Aluminum is non-combustible, adding a layer of safety.
- Durability: Long-lasting material that withstands harsh environments.
- Aesthetics: Provides a clean, professional appearance to insulated systems.
- Energy Efficiency: By protecting the insulation, it helps maintain consistent temperatures and reduce energy loss. This indirectly contributes to cost savings over time, linking back to the overall project price.
For hot pipe insulation aluminium cladding, selecting the right alloy and temper is vital to handle temperature variations and environmental factors effectively.
Key Features and Specification of Our Aluminium Cladding
Understanding the technical details ensures you select the correct material for your application. Our aluminium cladding meets stringent industry standards and offers reliable performance.
Product Description
Our standard and highly recommended product for pipe insulation cladding is based on 3003 H14 aluminum sheet. Alloy 3003 is widely recognized for its excellent corrosion resistance and good workability, making it ideal for bending and forming around pipes. The H14 temper provides the necessary strength while maintaining sufficient ductility for fabrication.
Detailed Specification Table
Here are the specific details for our Aluminium Cladding for Pipe Insulation:
| Feature | Detail |
|---|---|
| Product Type | Aluminium Cladding / Aluminium Jacketing |
| Material | Aluminium Alloy Sheet / Coil |
| Standards | ASTM B209 (Aluminum and Aluminum-Alloy Sheet and Plate), ASTM C1729 (Aluminum Jacketing for Insulation) |
| Alloy | 3003 (Most Common), 3105, 5005, 6061, 6082 (Available upon request based on project needs) |
| Temper | H14 (Standard), H16, H24. Special tempers available upon special request. |
| Thickness | 0.3mm to 1.5mm |

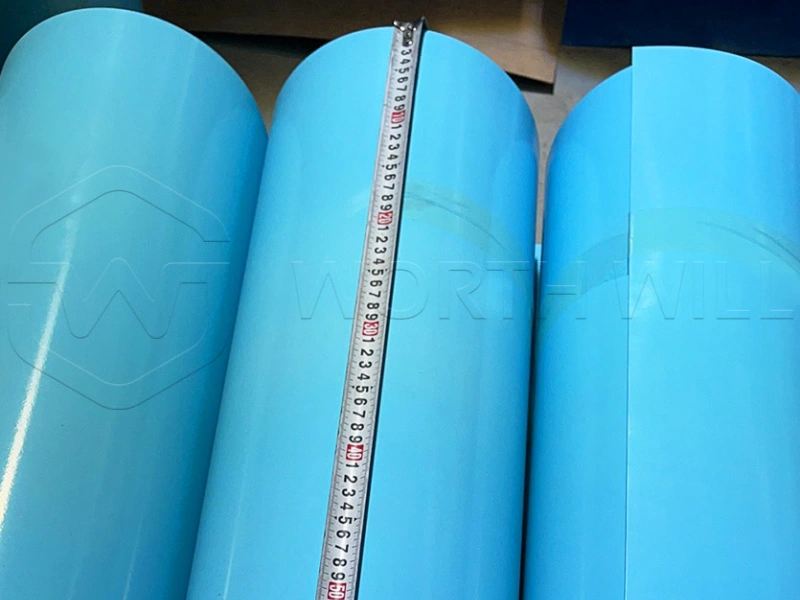

| Width | 914mm, 1000mm, 1219mm |
| Lengths | 100′ (approx. 30m), 200′ (approx. 60m), Jumbo Roll. Other lengths also available on orders. |
| Surface Finish | Smooth or Stucco Embossed |
| Moisture Barrier | Optional (Polykraft, Polysurlyn, etc.) |
Available Alloys and Tempers
While 3003 H14 aluminum sheet is a popular choice due to its balance of properties, we also offer other alloys like 3105 and 5005, which provide enhanced corrosion resistance or specific mechanical properties. Higher strength alloys like 6061 and 6082 are available for applications requiring more structural rigidity. The temper specifies the hardness; H14, H16, and H24 offer varying levels of strength and formability to suit different installation requirements.
Thickness, Widths, and Lengths
The range of thicknesses from 0.3mm to 1.5mm allows selection based on the level of mechanical protection needed. Standard widths like 914mm, 1000mm, and 1219mm are available to minimize waste and simplify installation on various pipe sizes. Different lengths, including convenient 100’ (30m) and 200’ (60m) rolls, plus bulk Jumbo Rolls, provide flexibility for small repairs up to large-scale projects.
Types of Aluminium Cladding
Aluminium cladding for pipes typically comes in two main surface finishes:
- Smooth: Provides a clean, reflective surface. Easy to wipe down.

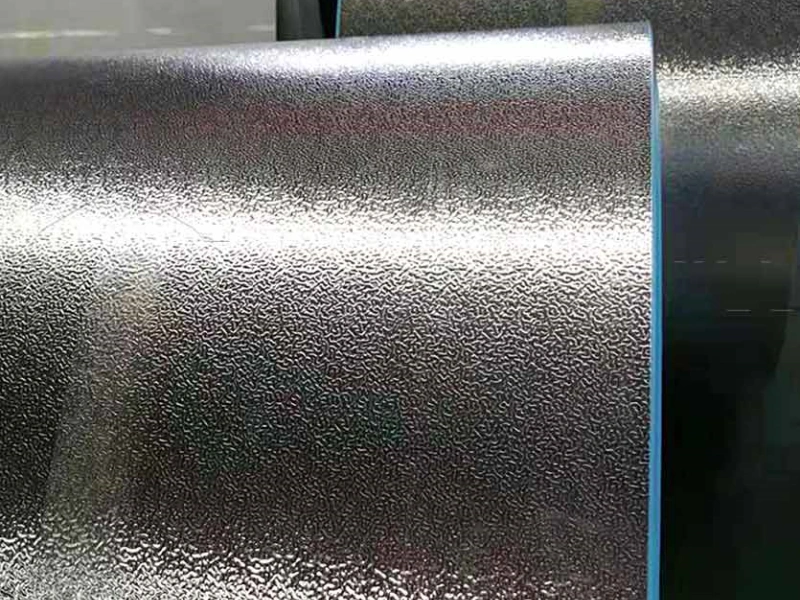

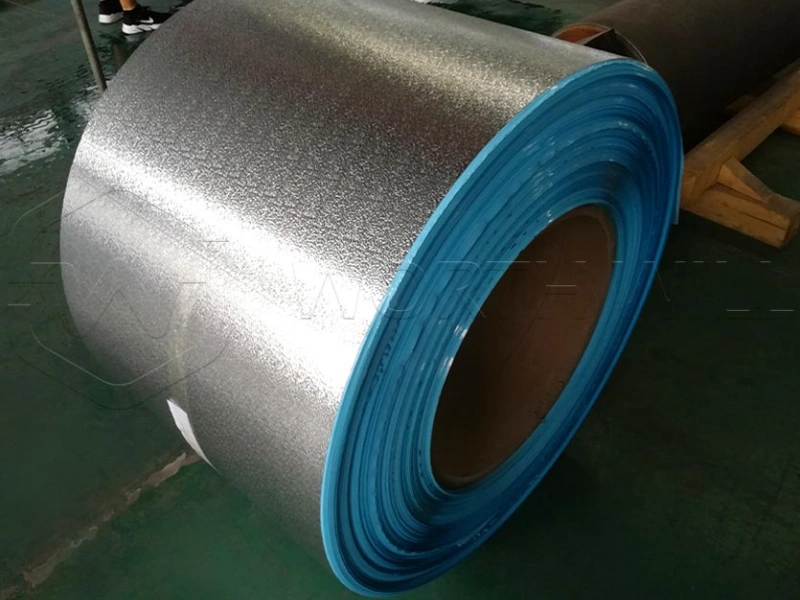

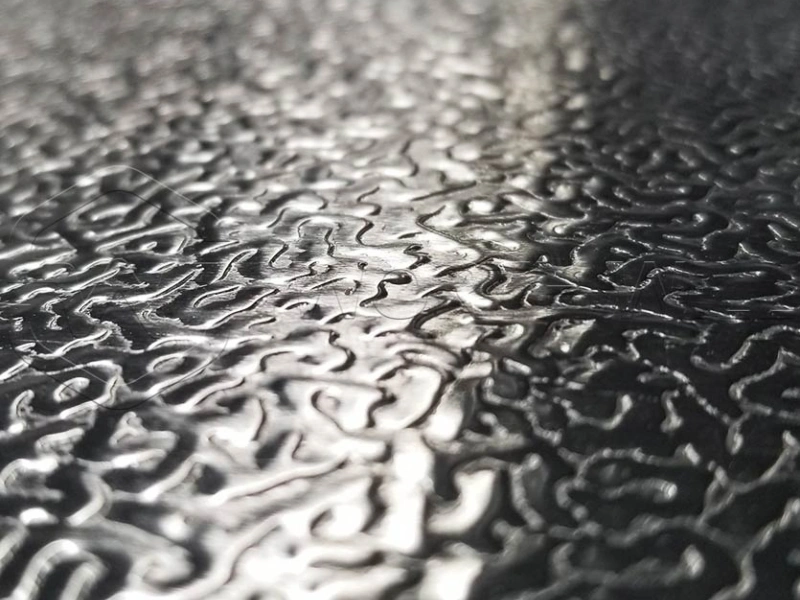

- Stucco Embossed: Features a patterned surface that reduces glare, adds rigidity, and helps conceal minor dents or scratches from handling and installation. This is a very common choice for pipe cladding.
Both types offer the essential protection needed for the insulation layer.
Applications of Aluminium Cladding
Aluminium cladding is indispensable in various industries and settings where pipes and equipment require protected insulation. Its applications include:
- Oil and Gas Refineries
- Power Generation Plants
- Chemical Processing Facilities
- HVAC Systems (Heating, Ventilation, Air Conditioning) in commercial and industrial buildings
- Food and Beverage Industry
- Pharmaceutical Manufacturing Plants
- Paper and Pulp Mills
- Marine Vessels and Offshore Platforms
- Water Treatment Facilities
- Mining Operations
Frequently Asked Questions (FAQs)
Here we address some common questions our customers ask about pipe insulation aluminium cladding:
What thickness aluminum cladding for pipe insulation?
The ideal thickness depends on the specific application and required level of protection. For typical industrial and commercial pipe insulation, thicknesses between 0.5mm and 0.8mm are very common. Thicker gauges (up to 1.5mm) might be used in areas prone to heavy physical impact or for larger diameter pipes and vessels needing greater structural integrity.
What is the aluminum cover on pipe insulation called?
The aluminum cover on pipe insulation is most commonly referred to as Aluminium Cladding or Aluminum Jacketing. Other terms you might hear include metal jacketing, aluminum lagging, or insulation cladding.
How do you calculate pipe insulation cladding?
Calculating the required amount of pipe insulation cladding involves determining the total surface area of the insulated pipes and equipment. This requires knowing the pipe diameter, insulation thickness (to get the outer diameter of the insulated pipe), and the total length of the pipes. You also need to account for overlap at seams (both longitudinal and circumferential) and material needed for fittings (elbows, tees, valves), which often require pre-fabricated covers or flat sheets cut to shape. There are online calculators and industry standards that provide guidance, but it’s often best to consult with an insulation or cladding supplier for precise calculations based on detailed drawings.
What is the most cost effective pipe insulation?
The “most cost effective” pipe insulation isn’t solely about the initial material price. It involves considering the insulation material cost, installation labor, cladding cost (like aluminium cladding), long-term energy savings, and maintenance costs. While the insulation material itself (like fiberglass, mineral wool, foam) has a direct price, failing to protect it with quality cladding can lead to damage, reduced efficiency, higher energy bills, and premature replacement – making a lower initial cost option much more expensive in the long run. Aluminium cladding adds to the upfront cost but is essential for maximizing the total cost-effectiveness over the system’s lifetime by preserving the insulation’s performance and durability.
Packaging and Delivery

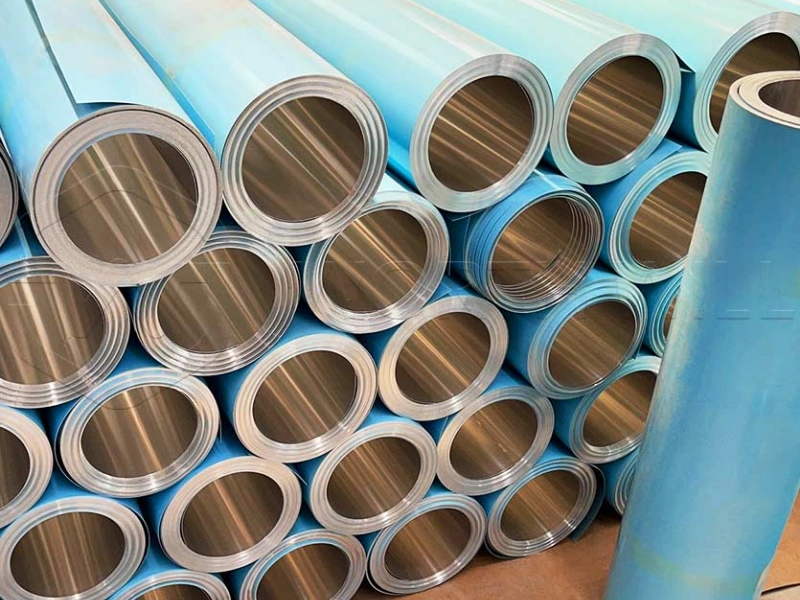

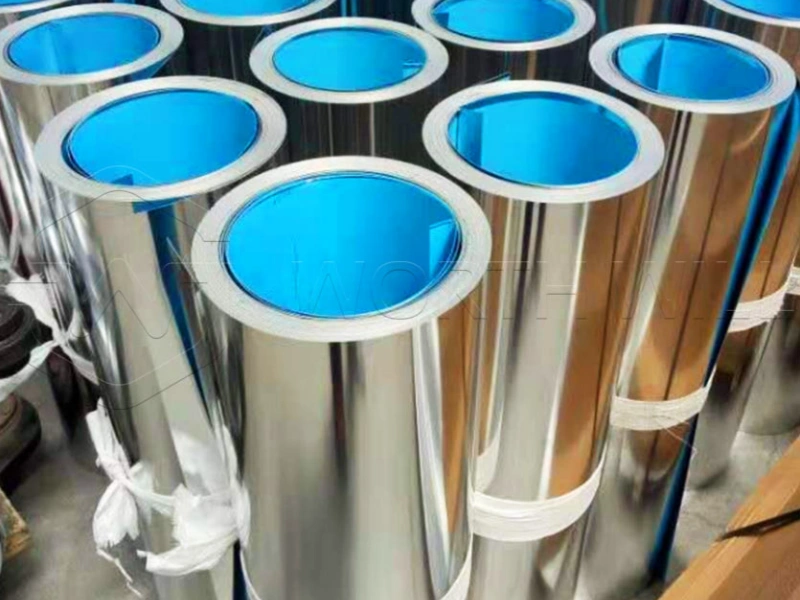

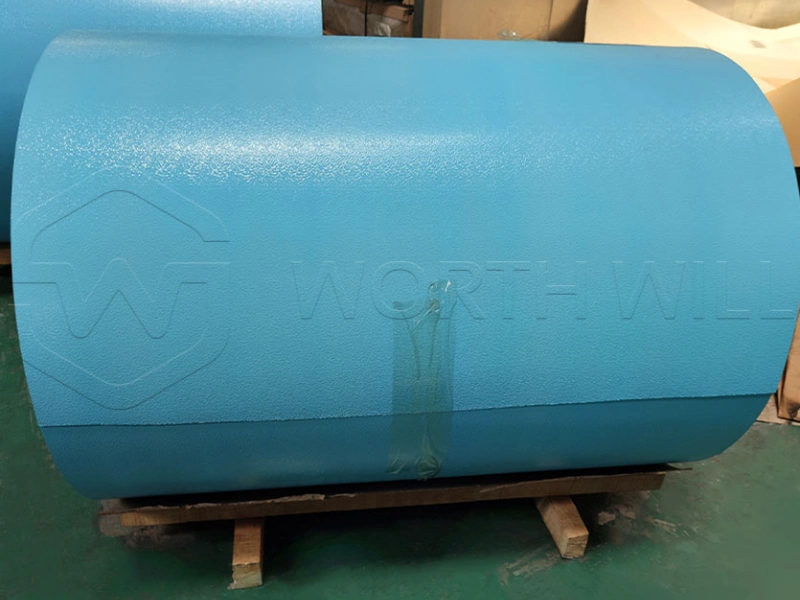

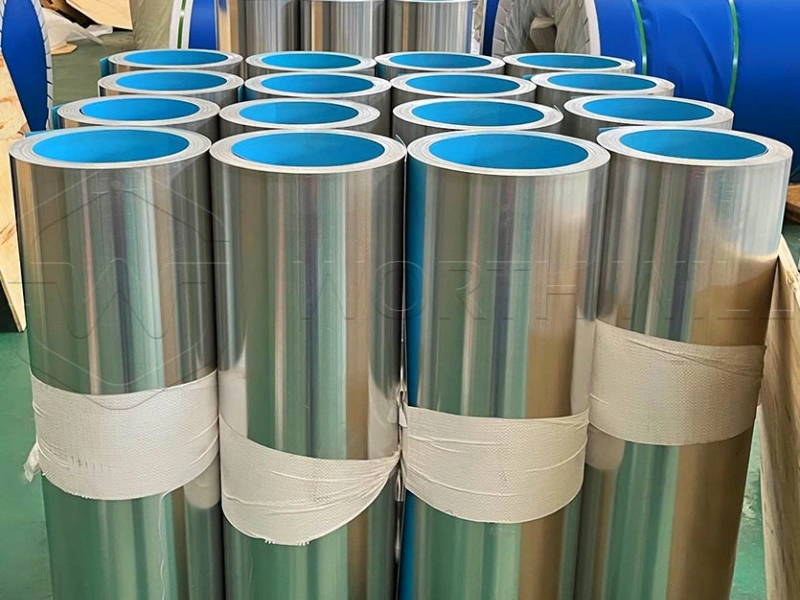

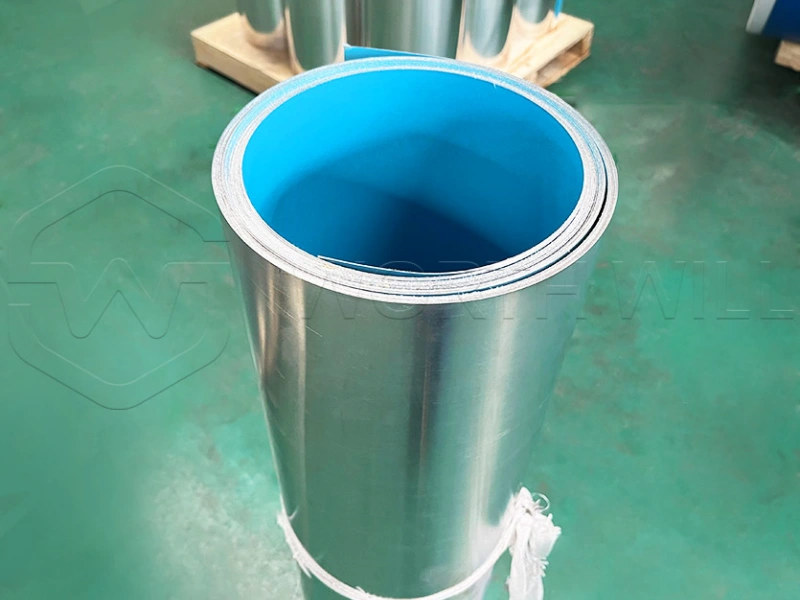

Our aluminium cladding is carefully packaged to ensure it arrives at your site in excellent condition. Typically, it is supplied in rolls or coils, often interleaved with protective paper or film. These rolls are then securely wrapped and can be packed in wooden crates or pallets for safe transportation, either “eye to sky” or “eye to wall” depending on coil size and shipping method.
Chemical Composition (Typical for Alloy 3003)
Alloy 3003 is an aluminum-manganese alloy. Its composition gives it good formability and corrosion resistance. A typical approximate composition is:
- Manganese (Mn): 1.0 – 1.5%
- Copper (Cu): 0.05 – 0.20%
- Iron (Fe): < 0.7%
- Silicon (Si): < 0.6%
- Zinc (Zn): < 0.10%
- Other Elements: < 0.05% each, < 0.15% total
- Aluminum (Al): Remainder
This composition ensures the material performs reliably in the demanding environments where pipe insulation cladding is used.
Why Choose WORTHWILL ALUMINUM for Your Cladding Needs?
When looking for reliable Pipe Insulation Aluminium Cladding Suppliers, WORTHWILL ALUMINUM stands out. We understand the critical role of quality cladding in protecting your investment in insulation.
- Quality Products: We supply high-quality aluminium cladding meeting international standards like ASTM B209/C1729, based on alloys like 3003 H14.
- Wide Range: We offer various thicknesses, widths, lengths (including 100′ (30m), 200′ (60m) rolls, and Jumbo Rolls), alloys, and tempers to meet diverse project requirements.
- Competitive Price: We offer competitive pricing for our quality products, ensuring you get the best value for your investment in protecting your insulation.
- Expertise: Our team has extensive knowledge of aluminum products and their applications in insulation systems.
- Reliable Supply: We ensure consistent quality and timely delivery for projects of all sizes.
- Customer Service: We are committed to providing excellent service and support to help you choose the right product.
Get the Right Aluminium Cladding for Your Project
Choosing the correct aluminium cladding for pipe insulation is a crucial decision that impacts the long-term performance and cost-effectiveness of your insulated system. Considering factors beyond just the initial price, such as material quality, specifications (3003 H14, thickness, alloy, temper), and supplier reliability, is essential.
Contact Us for Aluminium Cladding Price and Information
Ready to protect your pipe insulation with high-quality aluminium cladding? Contact WORTHWILL ALUMINUM today to discuss your project requirements, get detailed specifications, and receive a competitive Aluminium Cladding for Pipe Insulation price. We are your trusted partner for reliable aluminum solutions.
