Reliable Aluminum Jacketing Solutions for Pipe and Duct Insulation
Aluminium pipe insulation systems play an important role in protecting thermal insulation materials used on industrial pipes and HVAC ductwork.
They help prevent moisture ingress, mechanical damage, and weather exposure while extending the service life of insulation systems.
Products such as aluminum jacket for pipe insulation, aluminum jacket for duct insulation, and aluminum pipe jacketing are widely used in power plants, refineries, commercial buildings, and marine environments.
Typical Insulation Structure
| Layer | Material |
|---|---|
| Inner layer | Pipe or duct |
| Middle layer | Thermal insulation |
| Outer layer | Aluminum jacket / cladding |
Aluminum Jacket for Pipe Insulation
An aluminum jacket for pipe insulation is designed to protect insulation from:
- rain and moisture
- corrosion under insulation (CUI)
- UV radiation
- physical impact
It also improves appearance and cleanliness in industrial installations.
Main Benefits
- corrosion-resistant
- lightweight
- easy to install
- recyclable material
- long service life
Aluminum Jacket for Duct Insulation
Aluminum jacket for duct insulation is commonly used in HVAC systems.
It helps maintain insulation performance while protecting ducts in:
- mechanical rooms
- rooftops
- outdoor installations
- clean environments
Aluminum jacketing is preferred over plastic due to its fire resistance and durability.
Aluminum Jacket Insulation Materials
The luminum jacketing is usually manufactured from aluminum alloy coils.
Common Alloys
| Alloy | Series | Features |
|---|---|---|
| 1060 | 1000 | High purity, excellent corrosion resistance |
| 3003 | 3000 | Most common grade |
| 3105 | 3000 | Better strength |
| 5005 | 5000 | High corrosion resistance |
Aluminum Pipe Jacketing Specifications
Standard Thickness Options
| Thickness | Inch |
|---|---|
| 0.3 mm | 0.012″ |
| 0.4 mm | 0.016″ |
| 0.5 mm | 0.020″ |
| 0.6 mm | 0.024″ |
| 0.8 mm | 0.032″ |
Standard Coil Sizes
| Width | Length |
|---|---|
| 900 mm | Coil |
| 1000 mm | Coil |
| 1200 mm | Coil |
| Custom | Available |
Aluminum Cladding for Insulation
Aluminum cladding for insulation is widely used for both hot and cold insulation systems.
It provides:
- waterproof protection
- vapor barrier function
- improved insulation efficiency
- clean industrial appearance
Aluminum cladding can be supplied in flat sheets or pre-formed pipe sections.
Aluminium Cladding for Pipe Insulation Price
The aluminium cladding for pipe insulation price depends on several factors.
Price Influencing Factors
- aluminum alloy grade
- thickness of jacketing
- surface finish
- coil or sheet form
- order quantity
Reference Price Levels
| Type | Price Level |
|---|---|
| 0.3–0.4 mm | Low |
| 0.5 mm | Medium |
| 0.6–0.8 mm | Medium–High |
| Stucco embossed | Higher |
Actual pricing depends on raw aluminum cost and specifications.

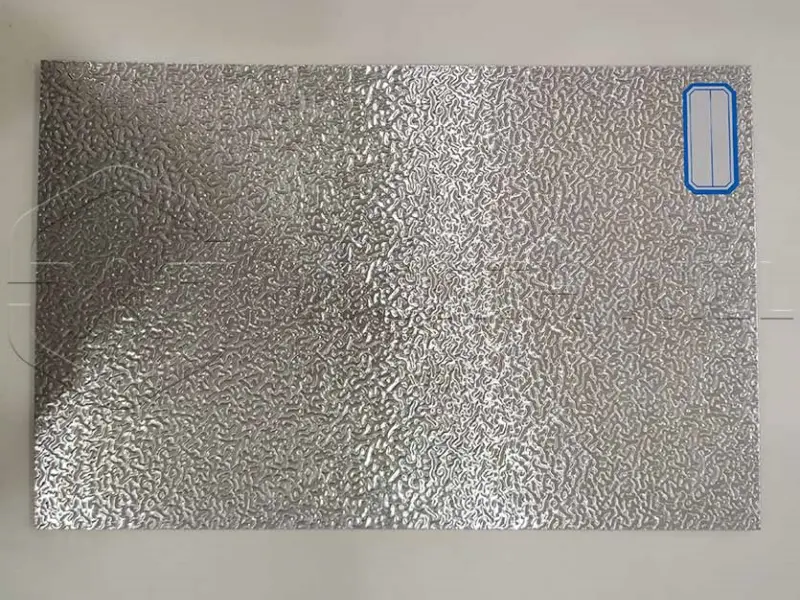

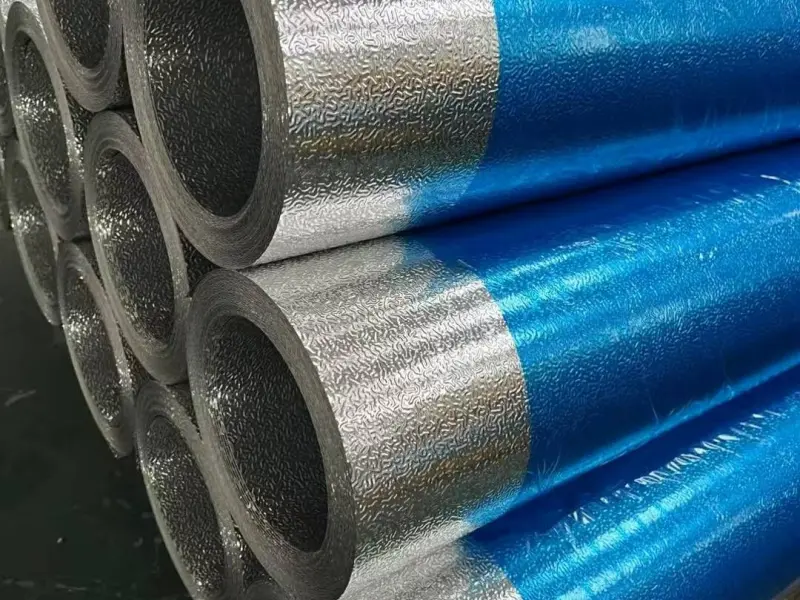

Stucco Embossed Aluminum Jacketing
The most popular surface finish is stucco embossed aluminum.
Advantages:
- hides scratches and dents
- improves rigidity
- better appearance
- widely accepted industrial standard
Surface Options
| Finish | Description |
|---|---|
| Mill finish | Smooth aluminum |
| Stucco embossed | Orange peel texture |
| Polysurlyn moisture barrier | Built-in vapor barrier |
Pipe Insulation Jacketing Types
Common Forms
- flat aluminum sheets
- aluminum coils
- pre-rolled pipe jacketing
- elbow and fitting covers
Jacketing with Moisture Barrier
Many aluminum jackets are supplied with Polysurlyn® moisture barrier.
| Layer | Function |
|---|---|
| Aluminum | Mechanical protection |
| Polysurlyn | Moisture barrier |
| Adhesive | Bonding layer |
Aluminum Cladding for Pipe Insulation PDF
For engineering and project documentation, aluminum jacketing is often supplied with:
- technical data sheet
- installation guide
- thickness chart
- aluminum cladding for pipe insulation PDF
These documents help contractors ensure correct installation.
Typical Applications
Aluminium pipe insulation systems are widely used in:
Industrial Facilities
- oil and gas pipelines
- chemical plants
- refineries
- power stations
Commercial Buildings
- HVAC duct insulation
- chilled water pipes
- hot water systems
Marine and Offshore
- ship pipelines
- offshore platforms
- corrosion-prone environments
Cold & Hot Insulation Systems
- cold storage
- LNG pipelines
- steam lines
- district heating
Why Choose Aluminum Jacketing?
Compared with other materials:
| Material | Durability | Fire Resistance | Cost |
|---|---|---|---|
| PVC | Low | Poor | Low |
| Stainless steel | Very high | Excellent | High |
| Aluminum jacketing | High | Good | Moderate |
Aluminum provides the best balance of cost, performance, and lifespan.
Packaging and Supply

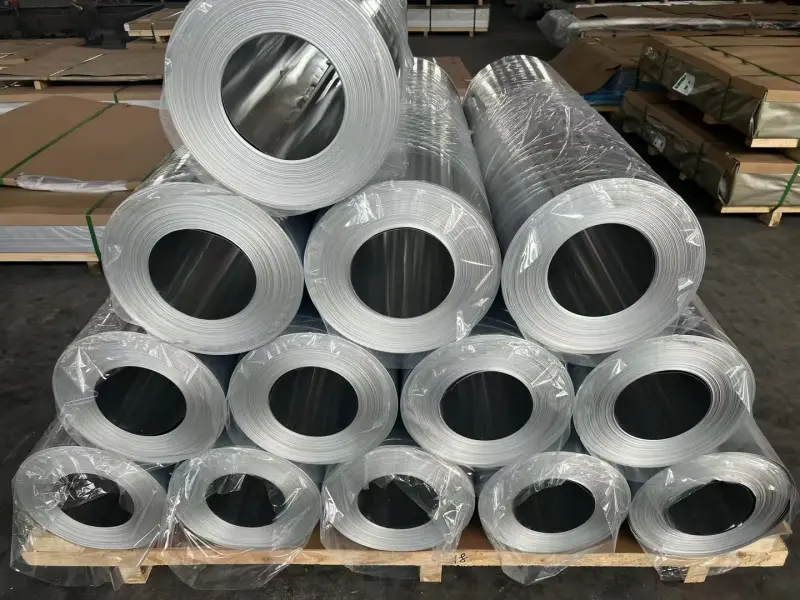

Aluminum pipe jacketing products are usually supplied as:
- coils with protective film
- flat sheets
- pre-rolled pipe sections
- wooden pallet packaging
Custom sizes and thicknesses are available for large projects.
What Is Aluminum Pipe Insulation?
Aluminum pipe insulation refers to a complete insulation protection system that includes:
- thermal insulation material (mineral wool, fiberglass, foam glass)
- outer aluminum cladding or jacketing
The aluminum layer acts as the protective shell around insulated pipes and ducts.
Aluminium pipe insulation systems
Aluminium pipe insulation systems using aluminum jacketing offer reliable protection for insulated pipes and ducts.
With advantages such as:
- corrosion resistance
- lightweight structure
- long service life
- easy installation
- competitive pricing
products like aluminum jacket for pipe insulation, aluminum cladding for insulation, and aluminum pipe jacketing remain the preferred solution for industrial and commercial insulation projects worldwide.
