The 3003 H14 aluminum sheet is a popular non-heat treatable alloy known for its excellent corrosion resistance, good workability, and moderate strength. It is widely used in roofing, siding, insulation, cookware, and decorative applications.
If you’re looking for a cost-effective and reliable material, 3003 H14 aluminum sheet is a top choice.
Product Specification
Below are the general specifications for our aluminum sheet products:
| Product | 3003 H14 Aluminum Sheet |
|---|---|
| Standards | ASTM B209 / C1729 |
| Available Alloys | 3003, 3105, 5005, 6061, 6082 |
| Temper | H14, H16, H24 (Special tempers available) |
| Thickness | 0.3mm – 1.5mm |
| Width | 914mm, 1000mm, 1219mm |
| Length | 100’ (30m), 200’ (60m), Jumbo Roll |
| Finish | Mill finish / custom surface on request |
We also offer custom sizes and surface treatments upon request.
What Does 3003 H14 Mean?
3003 H14 aluminum is made with a manganese-based alloy that offers excellent corrosion resistance and good mechanical properties.
- 3003 refers to the alloy, with about 1.2% manganese.
- H14 indicates the strain-hardened temper to about half-hard.
This temper provides a balance of strength and workability, making it ideal for bending, spinning, and forming operations.
What Is the Difference Between 3003 H14 and 6061 T6?
| Feature | 3003 H14 | 6061 T6 |
|---|---|---|
| Alloy Type | Non-heat treatable | Heat treatable |
| Strength | Moderate | High |
| Corrosion Resistance | Excellent | Very Good |
| Workability | Excellent | Good |
| Weldability | Good | Excellent |
While 6061 T6 aluminum is stronger and more suitable for structural applications, 3003 H14 is more cost-effective and easier to form, making it perfect for sheet metal work.
What Is the Difference Between 3003 H14 and 5052 Aluminum?
| Feature | 3003 H14 | 5052 H32 |
|---|---|---|
| Main Alloying Element | Manganese | Magnesium |
| Strength | Moderate | Higher |
| Corrosion Resistance | Excellent | Excellent |
| Workability | Very Good | Good |
| Marine Use | Not Recommended | Suitable |
5052 aluminum is stronger and more suitable for marine environments, while 3003 aluminum offers better workability and is often used in architectural and decorative applications.
Applications of 3003 H14 Aluminum Sheet
Thanks to its formability and corrosion resistance, 3003 H14 aluminum sheet is widely used in many industries:
- 🏠 Roofing and siding panels
- ❄️ Refrigeration panels
- 🍳 Cookware and kitchen utensils
- 🚗 Automobile insulation and cladding
- 🏗️ Construction decorative panels
- 📦 Packaging and insulation foils
- 💡 Lighting reflectors
- 📷 Nameplates and signage
Types of 3003 H14 Aluminum Sheet
We offer various surface types and forms of 3003 H14 aluminum sheet to match your application:

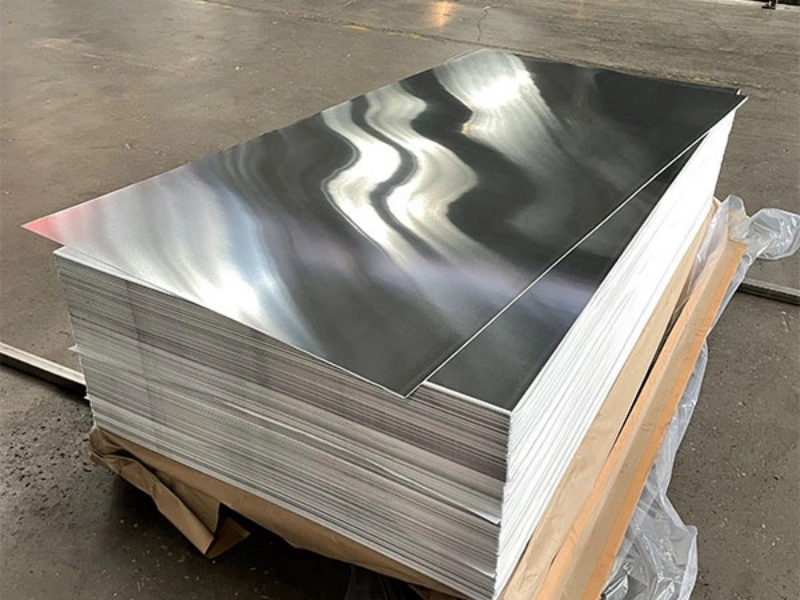

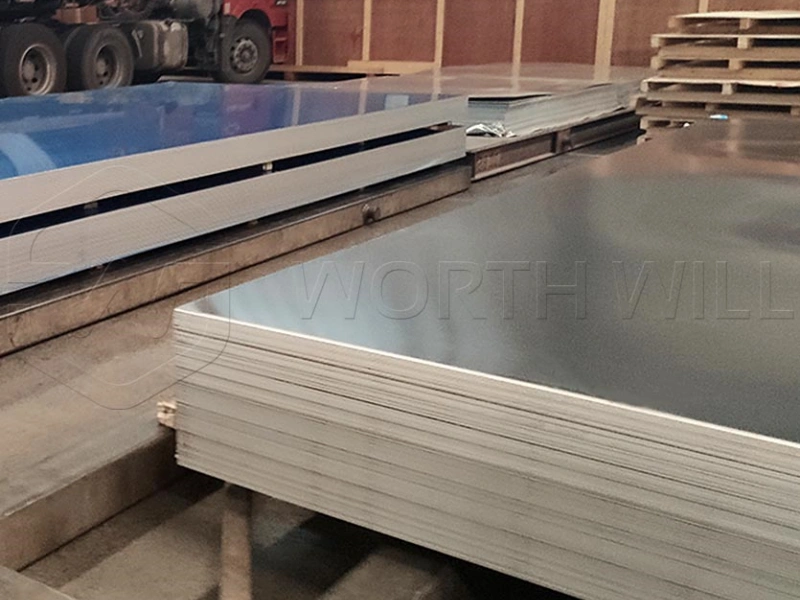

- Mill finish aluminum sheet
- Brushed aluminum sheet
- Painted aluminum sheet
- Anodized surface (upon request)

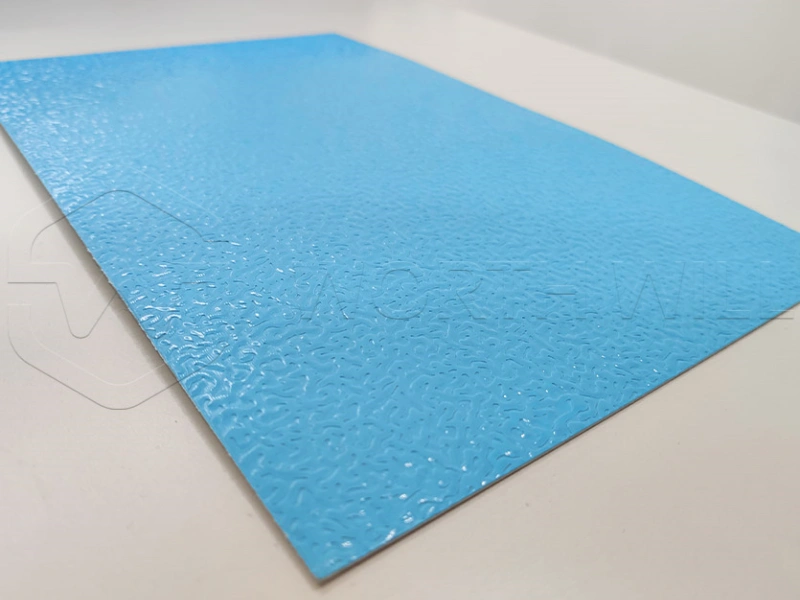

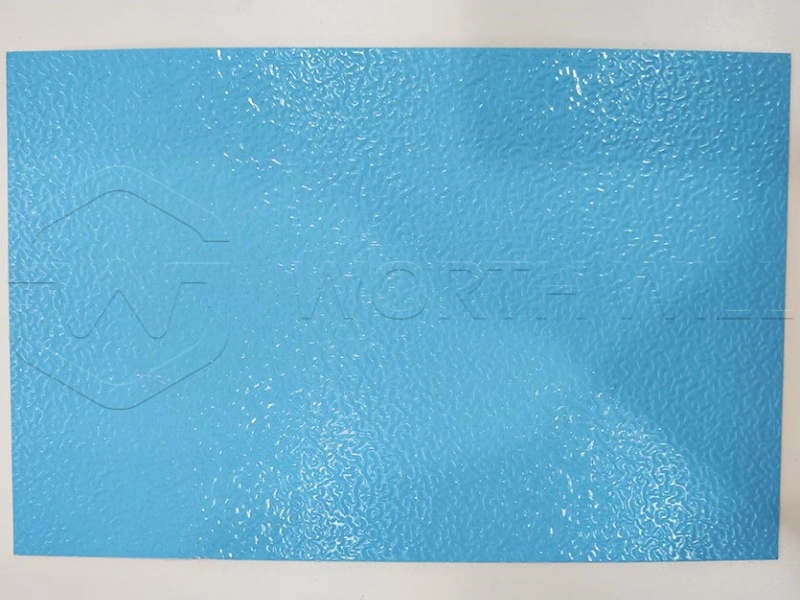

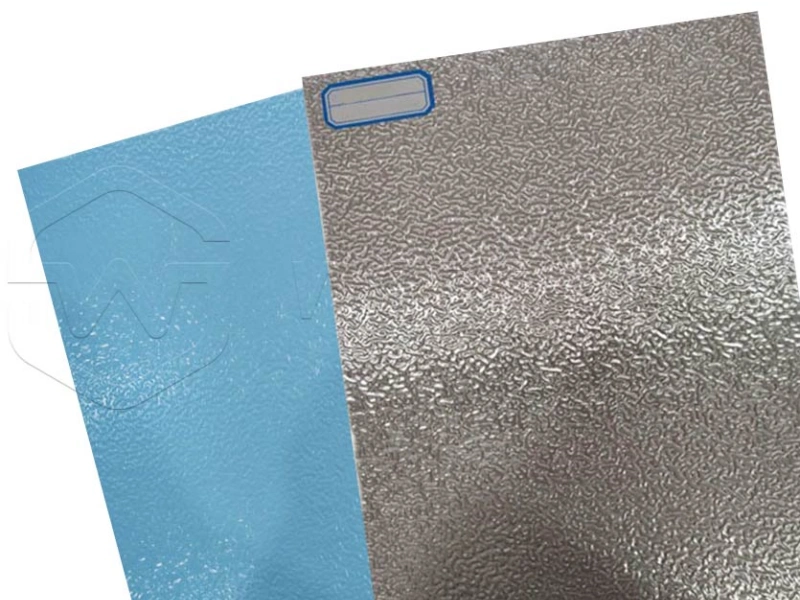

- Stucco embossed aluminum sheet
Our team can customize surface treatments and packaging based on your needs.
Comparison With Other Alloys
| Property | 3003 H14 | 5052 H32 | 6061 T6 |
|---|---|---|---|
| Strength (MPa) | 145 | 230 | 275 |
| Corrosion Res. | Good | Excellent | Good |
| Formability | Excellent | Good | Poor |
| Typical Uses | Gutters, signs | Marine, trucks | Structural |
Chemical Composition of 3003 Alloy
| Element | Percentage (%) |
|---|---|
| Aluminum (Al) | 96.6 – 99.0 |
| Manganese (Mn) | 1.0 – 1.5 |
| Copper (Cu) | 0.05 – 0.20 |
| Iron (Fe) | ≤ 0.70 |
| Silicon (Si) | ≤ 0.60 |
| Zinc (Zn) | ≤ 0.10 |
This composition ensures excellent corrosion resistance, especially in humid or mildly acidic environments.
Packaging and Delivery
Our 3003 H14 aluminum sheets are carefully packaged to prevent damage during transport:
- Waterproof paper + wooden pallet
- Steel straps for extra safety
- Optional plastic film for surface protection
- Custom logo and export markings
We support both LCL and FCL shipments, with fast delivery from our warehouse.
Why Choose Us as Your 3003 H14 Aluminum Sheet Supplier?
At Worthwill Aluminum, we are committed to delivering the best value to our customers.
Factory Direct Prices
Fast Lead Time
Strict Quality Control
Custom Size & Finish Available
Experienced Export Service
We have served clients in over 40 countries with a high satisfaction rate.
