PSMB aluminum jacketing coils rolls are aluminum coils designed for pipe insulation, tank cladding, and thermal insulation protection.
They provide excellent corrosion resistance, weather protection, and long service life, making them widely used in oil & gas, chemical plants, power stations, and HVAC systems.
PSMB aluminum jacketing is commonly supplied in coils and rolls, allowing easy forming and installation on pipes and equipment.
Why Use Aluminum Jacketing Coils and Rolls
Using aluminum jacketing coils rolls offers flexibility and efficiency during installation.
Main benefits
- Continuous length for fewer joints
- Reduced material waste
- Faster installation
- Clean and professional appearance
Common Aluminum Alloys for PSMB Jacketing
PSMB aluminum jacketing coils are produced using corrosion-resistant alloys.
| Alloy | Properties | Typical Use |
|---|---|---|
| 3003 | Good corrosion resistance | General insulation |
| 3105 | Better strength | Industrial jacketing |
| 1100 | High purity aluminum | Indoor insulation |
Standard Thickness of PSMB Aluminum Jacketing
| Thickness (mm) | Inch | Application |
|---|---|---|
| 0.3 | 0.012″ | Light insulation |
| 0.4 | 0.016″ | Standard pipe jacketing |
| 0.5 | 0.020″ | Outdoor use |
| 0.6 | 0.024″ | Heavy-duty protection |
Standard Widths of Aluminum Jacketing Rolls
| Width (mm) | Inch | Common Use |
|---|---|---|
| 900 | 36″ | Pipe insulation |
| 1000 | 39″ | Tank cladding |
| 1200 | 48″ | Large equipment |
Custom widths are available upon request.
Moisture Barrier Options (PSMB)
The moisture barrier is a key part of PSMB aluminum jacketing.
| Barrier Type | Thickness | Function |
|---|---|---|
| Poly film | 60–80 microns | Moisture protection |
| Kraft paper | Standard | Cost-effective |
| Composite film | Multi-layer | Enhanced sealing |
Surface Finish Options
PSMB aluminum jacketing coils can be supplied with different surface finishes.
| Finish Type | Description |
|---|---|
| Mill finish | Natural aluminum |
| Stucco embossed | Anti-slip surface |
| Smooth finish | Clean appearance |
PSMB Aluminum Jacketing Coils vs Sheets
| Item | Coils / Rolls | Sheets |
|---|---|---|
| Length | Continuous | Fixed |
| Installation | Flexible | More joints |
| Waste | Lower | Higher |
| Efficiency | High | Standard |
Applications of PSMB Aluminum Jacketing Coils Rolls
Industrial Insulation
- Pipe insulation systems
- Thermal insulation protection
- Hot and cold pipelines
Oil & Gas
- Refineries
- Petrochemical plants
- Offshore platforms
Power & Energy
- Power stations
- Steam lines
- Boilers
HVAC Systems
- Air ducts
- Chilled water pipes
- Mechanical rooms
Advantages of PSMB Aluminum Jacketing
- Excellent corrosion resistance
- Weatherproof and UV resistant
- Lightweight and strong
- Easy fabrication on site
- Long service life
Installation Advantages
Using PSMB aluminum jacketing rolls improves installation efficiency.
Installation benefits include:
- Easy cutting and bending
- Good fit around pipes
- Secure overlap and sealing
- Reduced labor time
Quality Control for Aluminum Jacketing Coils
Each PSMB aluminum jacketing coil is checked for:
| Inspection Item | Purpose |
|---|---|
| Thickness tolerance | Consistent protection |
| Barrier adhesion | Moisture resistance |
| Surface quality | Appearance |
| Coil flatness | Easy installation |

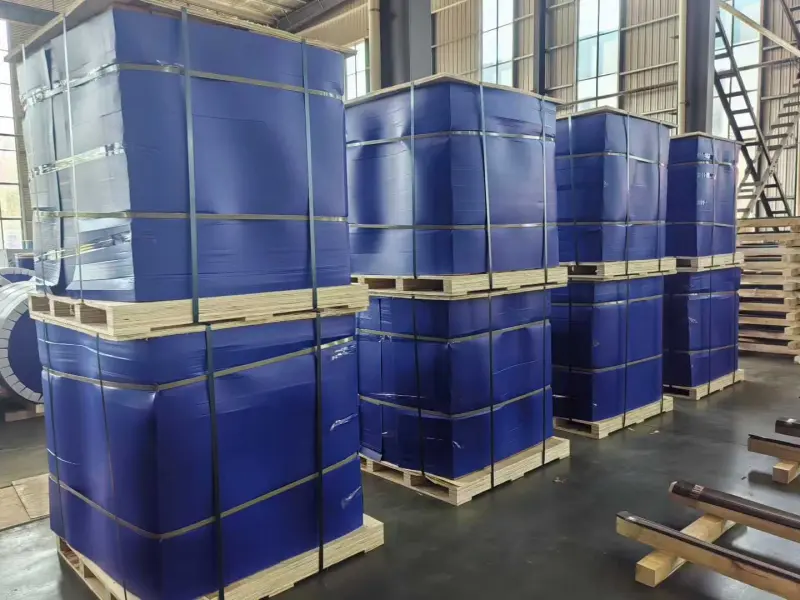

Packaging and Supply Form
| Form | Description |
|---|---|
| Coils | Standard export coils |
| Rolls | Wrapped and protected |
| Pallets | Sea-worthy packing |
Pricing Factors
The price of PSMB aluminum jacketing coils rolls depends on:
- Aluminum alloy
- Thickness and width
- Surface finish
- Moisture barrier type
- Order quantity
Large-volume orders usually receive better pricing.
Why Choose PSMB Aluminum Jacketing Coils Rolls
PSMB aluminum jacketing provides a reliable solution for insulation protection in demanding environments.
Compared to other materials, aluminum jacketing offers lower maintenance, longer life, and better performance.
What Is PSMB Aluminum Jacketing?
PSMB aluminum jacketing refers to aluminum jacketing with a moisture barrier film laminated on the inner surface.
The moisture barrier helps prevent water penetration between the insulation and the aluminum surface.
Key features
- Integrated moisture barrier
- Lightweight and durable
- Easy to bend and form
- Suitable for indoor and outdoor use
PSMB Aluminum Jacketing for Insulation Protection
PSMB aluminum jacketing coils rolls are an ideal choice for pipe insulation, industrial equipment, and thermal protection systems.
With multiple alloys, thicknesses, surface finishes, and moisture barrier options, they meet the requirements of both indoor and outdoor insulation projects.
Choosing high-quality PSMB aluminum jacketing ensures stable performance, efficient installation, and long-term cost savings.
